Is the JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 suitable for high-pressure hydraulic systems with 60Â° inverted cone seal and BSPT thread seal?

Yes. The JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 is suitable for highâpressure hydraulic systems that use a 60Â° inverted cone seal on the metric side and rely on BSPT thread sealing on the BSPT side. The product description specifies an external metric thread with a 60Â° inverted cone seal (Komatsu) and an external BSPT thread using thread seal, and the carbon steel, galvanized construction is standard for highâpressure hydraulic adaptors. Ensure compatibility by confirming: (1) system pressure ratings match the adaptorâs specified maximum working pressure, (2) thread sizes and pitch exactly match the mating components, and (3) appropriate thread sealant or tape is applied to the BSPT connection per manufacturer recommendations. If any of these are uncertain, verify technical data/safety factors with the supplier or manufacturer before installation.

Does the JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 require special torque for installing the 60Â° inverted cone and BSPT thread seal?

JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 does not require a special, unique torque value beyond standard installation practice. The 60Â° inverted cone (metric external) seals by metal-to-metal seating and must be tightened to properly engage the cone; follow the manufacturerâs recommended torque for the specific size (or standard torque tables for JIS/metric cone fittings) to avoid under- or over-tightening. The BSPT external thread seals by thread deformation/sealant-use appropriate pipe thread sealant or tape and tighten to normal BSPT torque for the nominal size. In summary: use standard torque values for the given thread sizes and fitting type, plus correct sealant for BSPT; do not overtighten.

Can the JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 be used with hydraulic fluids other than mineral oil?

Yes. generally, the JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 can be used with hydraulic fluids other than mineral oil, but compatibility depends on the specific fluid and operating conditions. Explanation and considerations: - Construction: The adaptor is carbon steel, galvanized, with a 60Â° inverted cone (JIS Komatsu) on the metric side and BSPT thread (thread seal) on the other. These materials and sealing types are mechanically compatible with most hydraulic fluids. - Seals and threads: The listing does not specify internal elastomer seals (Oârings). if the connection relies solely on metalâtoâmetal cone sealing and threaded seal, chemical compatibility issues are minimal. If your system includes any elastomer seals, hoses or fittings downstream, verify elastomer compatibility with the fluid (e.g., NBR, FKM, EPDM have different resistances). - Corrosion and galvanization: Galvanized carbon steel resists corrosion for many fluids, but some fluids (e.g., certain phosphate esters, highâconcentration glycol/water fluids, aggressive esters or synthetic lubricants) can accelerate corrosion or attack plating over time. For longâterm use with aggressive or fireâresistant fluids, stainless steel or specially coated parts may be preferable. - Pressure, temperature and lubricant chemistry: Ensure the fluidâs viscosity, additives and operating temperature are within the adaptorâs rated pressure/temperature limits. Some synthetics or waterâglycol mixtures have different lubrication and swelling properties affecting sealing integrity. - Standards and safety: Follow manufacturer data sheets and system compatibility charts. When in doubt, perform a compatibility check or contact the supplier with the exact fluid type (e.g., PAO, PAG, phosphate ester, waterâglycol) and operating conditions. Conclusion: The JIS Komatsu adaptor - nipple GZ METRIC x GZ BSPT, carbon steel, type A503 can be used with many hydraulic fluids beyond mineral oil, but verify compatibility for elastomers, galvanization resistance and operating parameters for the specific fluid before use.

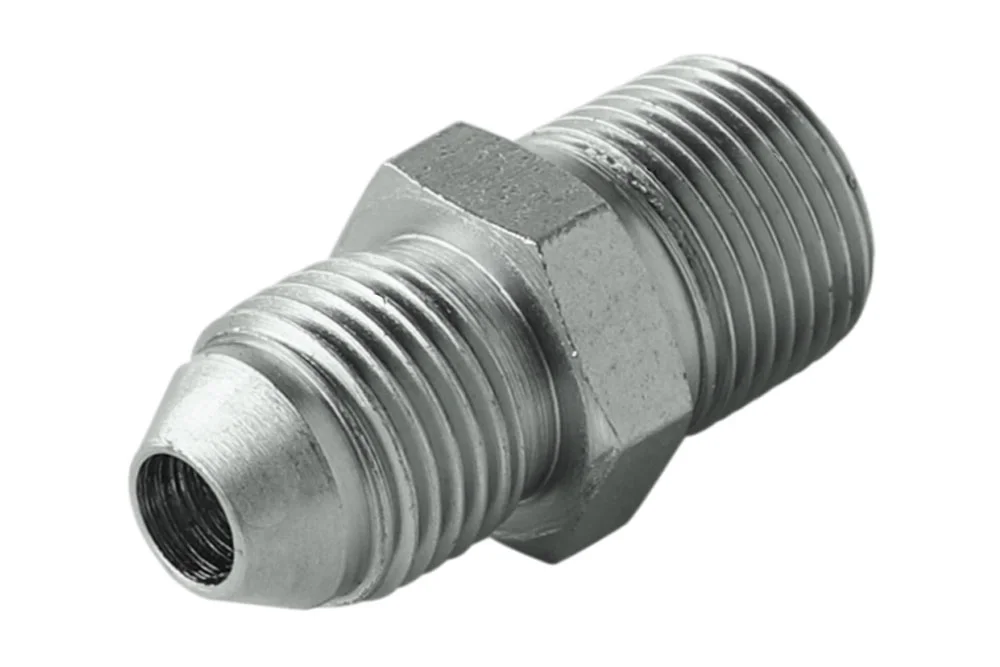

Adapter – nipple JIS Komatsu metric male x BSPT male, carbon steel, type A503

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adapter JIS type A503 with metric male thread (inverted 60° cone sealing) – KOMATSU and with BSPT male thread (thread sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A503-14-04	Adapter M14x1.5 male JIS / 1/4" BSPT male	-	345	In stock	Enquiry
TI-A503-16-06	Adapter M16x1.5 male JIS / 3/8" BSPT male	-	250	In stock	Enquiry
TI-A503-18-06	Adapter M18x1.5 male JIS / 3/8" BSPT male	-	250	In stock	Enquiry
TI-A503-22-08	Adapter M22x1.5 male JIS / 1/2" BSPT male	-	225	In stock	Enquiry
TI-A503-24-08	Adapter M24x1.5 male JIS / 1/2" BSPT male	-	225	In stock	Enquiry
TI-A503-30-12	Adapter M30x1.5 male JIS / 3/4" BSPT male	-	200	In stock	Enquiry
TI-A503-33-16	Adapter M33x1.5 male JIS / 1" BSPT male	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter JIS type A503 with metric male thread (inverted 60° cone sealing) – KOMATSU and with BSPT male thread (thread sealing). Material: carbon steel, galvanized.
