Is the JIS Toyota adaptor - nipple GZ BSP x GZ BSPT, carbon steel, type A403 compatible with hydraulic systems using 60Â° inverted cone sealing?

Yes. The JIS Toyota adaptor - nipple GZ BSP x GZ BSPT, carbon steel, type A403 is compatible with hydraulic systems using 60Â° inverted cone sealing on the BSP (GZ BSP) side. Description states the A403 adaptor is a high-pressure JIS type with external BSP thread that uses a 60Â° inverted cone seal (TOYOTA). The BSPT (external BSPT thread) side uses thread sealing rather than the 60Â° cone, so ensure the BSP (GZ BSP) end interfaces with the system port that requires the 60Â° inverted cone seal. Carbon steel, galvanized construction is suitable for typical hydraulic applications, but verify pressure ratings, compatibility with fluid and galvanic corrosion considerations for your system.

Does the JIS Toyota adaptor - nipple GZ BSP x GZ BSPT, carbon steel, type A403 require thread sealant for BSPT connections?

JIS Toyota adaptor - nipple GZ BSP x GZ BSPT, carbon steel, type A403 requires thread sealant for BSPT connections? Yes. The A403 description specifies the external BSPT thread uses "thread seal"-BSPT is a tapered, sealing male thread that requires an appropriate thread sealant (sealant tape or liquid thread sealant/pipe dope) to ensure pressure-tight joint. The BSP (GZ) 60Â° inverted cone portion provides a metal-to-metal face seal and does not use sealant; apply sealant only to the BSPT threaded end per manufacturer recommendations and compatible with carbon steel and system fluid.

Can the JIS Toyota adaptor - nipple GZ BSP x GZ BSPT, carbon steel, type A403 be used in corrosive environments after galvanization?

Possibly, but with important limitations. Details: - The JIS Toyota adaptor - nipple GZ BSP x GZ BSPT, carbon steel, type A403 is made of carbon steel and supplied galvanized. Galvanization (likely zinc coating) provides sacrificial corrosion protection and is suitable for many mildly corrosive or atmospheric environments. - Galvanized coatings are not universally resistant. In aggressive corrosive environments (marine/sea spray, atmospheres with high chloride or sulfur content, acidic or alkaline media, or continuous wetting/immersion), zinc will corrode faster than stainless materials, leading to coating loss, undercutting and eventual exposure of the carbon steel substrate. - Mechanical considerations: High-pressure applications and sealing surfaces (60Â° inverted cone and BSPT thread seal) require intact surfaces and precise threads. Corrosion or coating breakdown on sealing faces or threads can compromise leak-tightness and joint integrity. - Service temperature: Zinc coatings have temperature limits (continuous use above ~200â250Â°C degrades the coating). For elevated-temperature environments, galvanization may be unsuitable. - Compatibility with fluids: If the corrosive agent is a process fluid (acidic/basic solvents, chloride-rich brines, aggressive chemicals), galvanized carbon steel is generally not recommended; choose corrosion-resistant materials (e.g., stainless steel, special alloys, or suitably coated parts). - Maintenance and lifetime: In less aggressive atmospheres, galvanized adaptors can perform well with periodic inspection and replacement planned. In aggressive environments, expect shortened lifetime and need for corrosion monitoring. Recommendation: Do not assume galvanization ensures suitability for corrosive environments. Assess the specific corrosive agents, concentration, temperature, exposure (wet/dry/cyclic), and required service life. If environment is moderately to highly corrosive or critical for safety/leak prevention, choose a corrosion-resistant material (e.g., stainless steel JIS-type adaptor) or consult the manufacturer for corrosion resistance data and suitable alternative finishes.

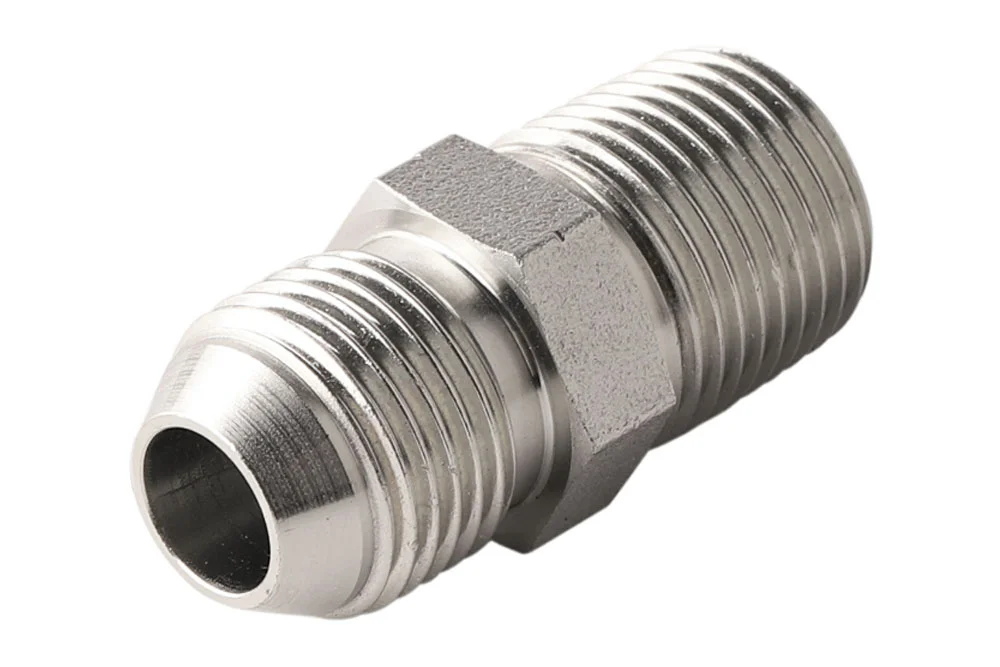

Adapter – nipple JIS Toyota BSP male x BSPT male, carbon steel, type A403

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adapter JIS type A403 with BSP male thread (inverted 60° cone sealing) – TOYOTA and with BSPT male thread (thread sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A403-02-02	Adapter 1/8" BSP male JIS / 1/8" BSPT male	-		In stock	Enquiry
TI-A403-04-02	Adapter 1/4" BSP male JIS / 1/8" BSPT male	-		In stock	Enquiry
TI-A403-04-04	Adapter 1/4" BSP male JIS / 1/4" BSPT male	-	345	In stock	Enquiry
TI-A403-06-06	Adapter 3/8" BSP male JIS / 3/8" BSPT male	-	250	In stock	Enquiry
TI-A403-08-08	Adapter 1/2" BSP male JIS / 1/2" BSPT male	-	225	In stock	Enquiry
TI-A403-12-12	Adapter 3/4" BSP male JIS / 3/4" BSPT male	-	200	In stock	Enquiry
TI-A403-16-16	Adapter 1" BSP male JIS / 1" BSPT male	-	160	In stock	Enquiry
TI-A403-20-20	Adapter 1.1/4" BSP male JIS / 1.1/4" BSPT male	-	160	In stock	Enquiry
TI-A403-24-24	Adapter 1.1/2" BSP male JIS / 1.1/2" BSPT male	-	105	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter JIS type A403 with BSP male thread (inverted 60° cone sealing) – TOYOTA and with BSPT male thread (thread sealing). Material: carbon steel, galvanized.
