Is the Adaptor - plug with GW BSP, stainless steel, type A112 compatible with high-pressure systems using a 60Â° cone seal and internal BSP threads?

Yes. The Adaptor - plug with GW BSP, stainless steel, type A112 Format is compatible with high-pressure systems that use a 60Â° cone seal and internal BSP threads. The product description for Adaptor - high-pressure plug type A112 specifies an internal BSP thread, a swivel nut designed for a 60Â° cone seal, and construction in AISI 316L stainless steel.features that ensure proper mechanical fit and corrosion-resistant performance in high-pressure applications using that sealing standard.

Does the Adaptor - plug with GW BSP, stainless steel, type A112 include a swivel nut for 60Â° cone seal connections?

Yes. The Adaptor - plug with GW BSP, stainless steel, type A112 includes a swivel nut designed for 60Â° cone seal connections. The product description specifies it is a high-pressure plug type A112 with internal BSP thread and a swivel nut (60Â° cone seal), made of AISI 316L stainless steel.

Can Adaptor - plug with GW BSP, stainless steel, type A112 withstand corrosive environments due to AISI 316L construction?

Yes. Adaptor - plug with GW BSP, stainless steel, type A112 offers good corrosion resistance in many corrosive environments because it is made from AISI 316L stainless steel. 316L is a lowâcarbon austenitic stainless steel with added molybdenum, which provides improved resistance to pitting and crevice corrosion in chlorideâcontaining media (e.g., seawater, brine) compared with 304 grade. It also resists general corrosion from many acids, alkalis and industrial atmospheres. However, suitability depends on the specific corrosive agent, concentration, temperature and mechanical stresses. Limitations to consider: - Chloride environments at elevated temperature and high chloride concentration can still cause pitting or crevice corrosion in 316L. - Strong oxidizing acids (e.g., nitric acid at certain concentrations/temperatures) or reducing acids (e.g., hydrochloric acid) can attack 316L. - Hydrogen sulfide (sour environments) can cause sulfide stress cracking under tensile stress. - Galvanic corrosion may occur if mated with dissimilar metals without proper isolation. - High abrasion or erosion plus corrosion can reduce service life. For critical or aggressive services, consult corrosion data, perform compatibility checks, and consider higherâalloy materials (e.g., duplex, superâaustenitic, or nickel alloys) or protective coatings. For typical saltwater, general industrial and food/pharma applications, Adaptor - plug with GW BSP, stainless steel, type A112 constructed from AISI 316L is generally suitable.

Adapter – plug with BSP female, stainless steel, type A112

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

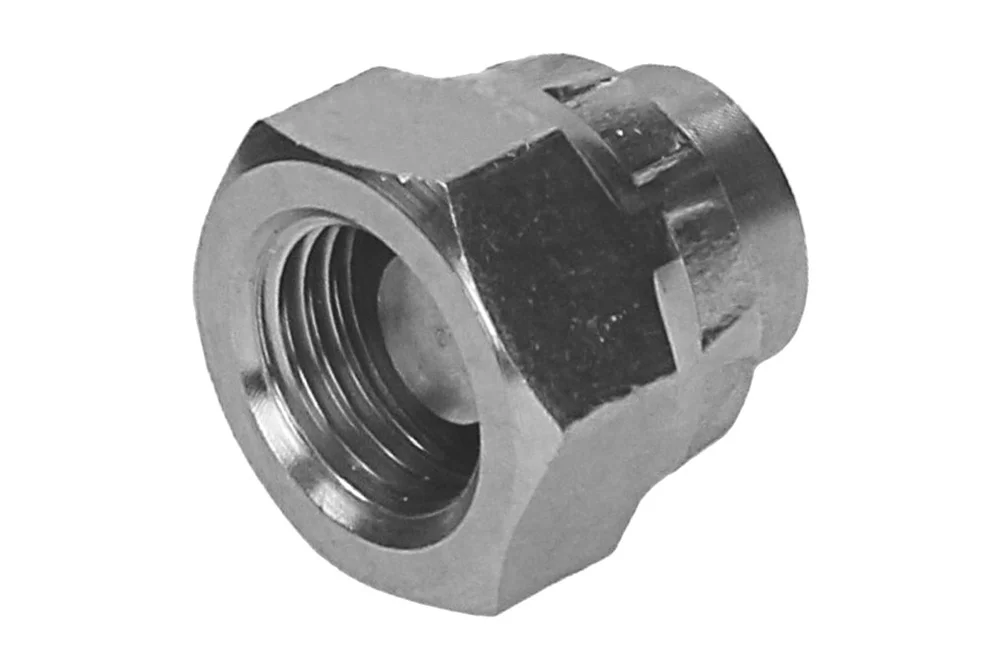

Adapter – plug high-pressure type A112 with BSP female thread, with a swivel nut (60° cone sealing). Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A112-04-SS	Cap 1/4" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A112-06-SS	Cap 3/8" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A112-08-SS	Cap 1/2" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A112-12-SS	Cap 3/4" BSP female, AISI 316	-	315	In stock	Enquiry
TI-A112-16-SS	Cap 1" BSP female, AISI 316	-	250	In stock	Enquiry
TI-A112-20-SS	Cap 1.1/4" BSP female, AISI 316	-	200	In stock	Enquiry
TI-A112-24-SS	Cap 1.1/2" BSP female, AISI 316	-	160	In stock	Enquiry
TI-A112-32-SS	Cap 2" BSP female, AISI 316	-	125	In stock	Enquiry
