Is the Adaptor - T-piece with NPT female thread, carbon steel, type A309 compatible with standard NPT fittings and sealed on the thread?

Yes. The Adaptor - T-piece with NPT female thread, carbon steel, type A309 is compatible with standard NPT fittings. It has three internal NPT threads (3 x NPT) designed for mating with standard NPT male threads. The description specifies âseal on the thread,â which indicates the connection seals via the tapered NPT thread form (threaded seal), so no separate face seal is required. Material is carbon steel, galvanized, suitable for high-pressure applications as described. Ensure mating fittings are standard NPT male and use appropriate thread sealant (PTFE tape or pipe dope) rated for your fluid, temperature and pressure to achieve leak-free joints.

Does the Adaptor - T-piece with NPT female thread, carbon steel, type A309 require thread sealant for high-pressure applications?

Yes. The product description for Adaptor - T-piece with NPT female thread, carbon steel, type A309 Format states âseal on the thread,â which indicates that the internal NPT threads are designed to be sealed. For high-pressure applications you should still use an appropriate thread sealant (PTFE tape, anaerobic thread sealant, or pipe dope rated for high pressure and compatible with carbon steel and the media) and follow recommended application procedures and torque. Ensure the chosen sealant is rated for the maximum system pressure, temperature, and fluid to guarantee a leak-tight joint.

Can Adaptor - T-piece with NPT female thread, carbon steel, type A309 be used with PTFE tape for leak prevention?

Yes. you can use PTFE tape with the Adaptor - T-piece with NPT female thread, carbon steel, type A309 to help prevent leaks, but follow these conditions and best practices: 1. Intended sealing method: The product description states "seal on the thread," which implies a thread-based seal (typical for NPT). PTFE tape is a common and acceptable thread sealant for NPT tapered threads. 2. Thread type confirmation: Ensure the mating connectors are indeed NPT tapered male threads. PTFE tape is appropriate for NPT (tapered) but not for parallel threads that require O-rings or bonded seals. 3. Application technique: - Use 3â5 wraps of clean, high-quality PTFE tape, wrapping clockwise (as you face the male thread) so tape does not unravel during assembly. - Cover threads starting one thread back from the end to avoid tape entering the system. - Avoid over-thick application that can prevent proper thread engagement; keep wraps snug and even. - Tighten to the recommended torque for carbon steel NPT fittings; do not over-tighten. 4. Pressure, media, temperature, and compatibility: - PTFE tape is chemically compatible with most fluids and gases and withstands wide temperatures, but verify compatibility with your specific media and operating temperature/pressure. For very high pressures, aggressive chemicals, or critical gas systems, consider anaerobic sealants, joint compounds rated for the service, or metal-to-metal/sealing washers per manufacturer guidance. - Galvanized carbon steel threads: ensure tape is compatible with any galvanizing residues and that galvanization condition is acceptable for sealing. 5. Safety and standards: - For gas (especially natural gas) installations follow local codes and use approved sealants or certified fittings; some gas codes prohibit only PTFE tape unless labeled for gas service. - If the fitting is used in critical or high-pressure systems, consult the adaptor supplier or engineering specifications for recommended sealing method. Summary: PTFE tape is generally acceptable for sealing NPT threads on the Adaptor - T-piece with NPT female thread, carbon steel, type A309 when used correctly and when compatible with the systemâs pressure, temperature, and media; verify for gas or critical applications and follow applicable codes.

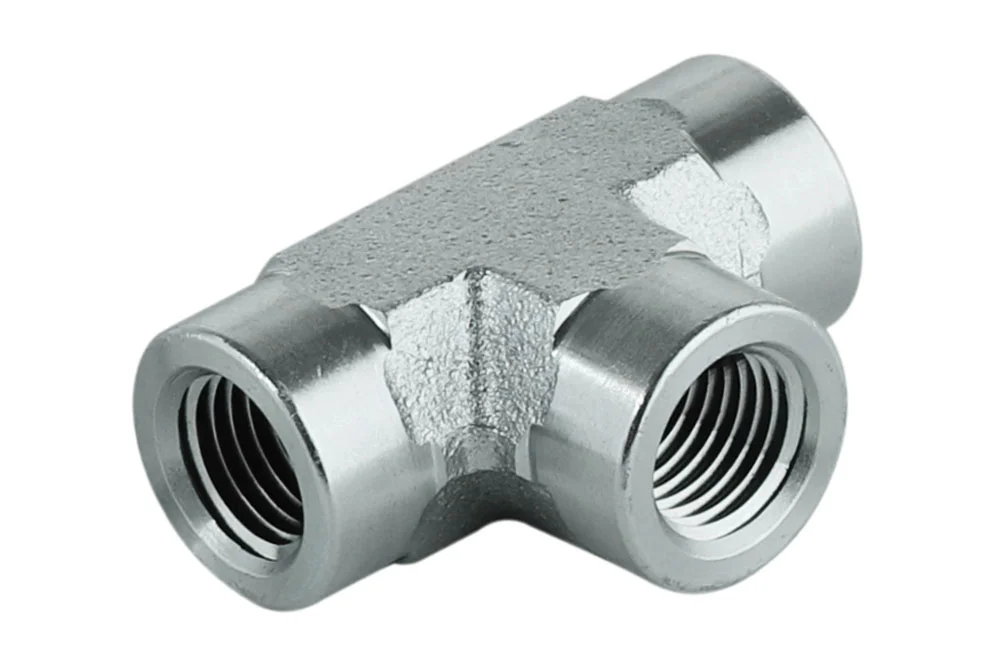

Adaptor – T-piece with NPT female thread, carbon steel, type A309

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adaptor – high-pressure tee, type A309, with internal thread 3 x NPT (seal on the thread). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A309-02	3-way tee 3 x GW NPT 1/8"	-	345	In stock	Enquiry
TI-A309-04	3-way tee 3 x GW NPT 1/4"	-	345	In stock	Enquiry
TI-A309-06	3-way tee 3 x GW NPT 3/8"	-	276	In stock	Enquiry
TI-A309-08	3-way tee 3 x GW NPT 1/2"	-	241	In stock	Enquiry
TI-A309-12	3-way tee 3 x GW NPT 3/4"	-	155	In stock	Enquiry
TI-A309-16	3-way tee 3 x GW NPT 1"	-	138	In stock	Enquiry
TI-A309-20	3-way tee 3 x GW NPT 1.1/4"	-	112	In stock	Enquiry
TI-A309-24	3-way tee 3 x GW NPT 1.1/2"	-	86	In stock	Enquiry
TI-A309-32	3-way tee 3 x GW NPT 2"	-	78	In stock	Enquiry
