Can the Adaptor with GZ NPT, stainless steel, type A301 be used with thread sealant on its external NPT threads for high-pressure applications?

Yes. The Adaptor with GZ NPT, stainless steel, type A301 (High-pressure adapter type A301 with external NPT threads, Material: AISI 316L steel) is suitable for use with an appropriate thread sealant on its external NPT threads for high-pressure applications, provided the following conditions are met: - Use a sealant rated for the systemâs maximum pressure, temperature, and fluid/chemical compatibility (e.g., PTFE tape or anaerobic pipe thread sealant formulated for high-pressure service and compatible with AISI 316L and the conveyed medium). - Apply sealant correctly: wrap PTFE tape in the thread direction, avoid over-application that can contaminate the system, or follow manufacturer instructions for liquid sealants and curing times. - Ensure proper thread engagement and torque per recommended specifications for NPT fittings of the given size to achieve a reliable metal-to-metal seal assisted by the sealant. - Verify component cleanliness and absence of damage on threads before assembly. - Follow applicable codes, standards and system design requirements (pressure ratings, safety factors) and, if required, consult the adapter manufacturer for explicit approval of specific sealants and high-pressure ratings. If any doubt remains about pressure class, media, or safety-critical service, confirm with the manufacturer or a qualified engineer before use.

Is the Adaptor with GZ NPT, stainless steel, type A301 compatible with PTFE tape or pipe dope on its external NPT threads?

Yes. Adaptor with GZ NPT, stainless steel, type A301 has external NPT threads designed as a thread-seal connection, so using PTFE tape or a compatible pipe dope on the external NPT threads is appropriate to ensure a pressure-tight seal. Use PTFE tape rated for the pressure and temperature of your system and wrap it in the thread direction; if using a pipe dope, choose one compatible with AISI 316L stainless steel and the media involved. Avoid over-application that could contaminate the fitting or system.

Are there pressure or chemical limits for using thread sealants on Adaptor with GZ NPT, stainless steel, type A301?

Yes. there are practical limits. Pressure: The adaptor with GZ NPT, stainless steel, type A301 is a high-pressure AISI 316L component, so the metal body itself will withstand typical high-pressure ranges for such adapters. However, thread sealants (PTFE tape, anaerobic pipe sealants, hemp compounds) are not load-bearing and can be compressed or extruded under very high pressures or vibration. For sealed metal-to-metal NPT joints, rely primarily on correct thread engagement (proper torque and thread condition) for pressure containment; thread sealants are to improve sealing and prevent galling, not to raise the mechanical pressure rating. Always follow the adaptorâs specified maximum working pressure and temperature given by the manufacturer; do not assume sealant increases that rating. Chemicals: Chemical compatibility of the thread sealant with system media and AISI 316L is crucial. PTFE-based tapes are broadly chemically inert and suitable for most media, but some anaerobic or solvent-based sealants may swell, degrade, or be attacked by aggressive chemicals (strong acids, bases, oxidizers, certain organic solvents). Also check sealant compatibility with system temperature. many sealants lose strength or outgas at elevated temperatures. Choose a sealant rated for the media, temperature, and pressure of your system and certified for use on stainless steel/NPT threads. Recommendations: - Use manufacturer guidance for torque and maximum working pressure; do not rely on sealant to increase pressure capability. - Select a sealant with proven chemical compatibility (PTFE for broad compatibility; specify chemical-resistant formulations for aggressive media). - Ensure proper application and curing (for anaerobic types) and avoid overuse that could extrude into the flow path. - If in doubt for critical or high-pressure/critical-chemical applications, consult the adaptor manufacturer or a materials/pressure-vessel engineer for a validated sealing solution.

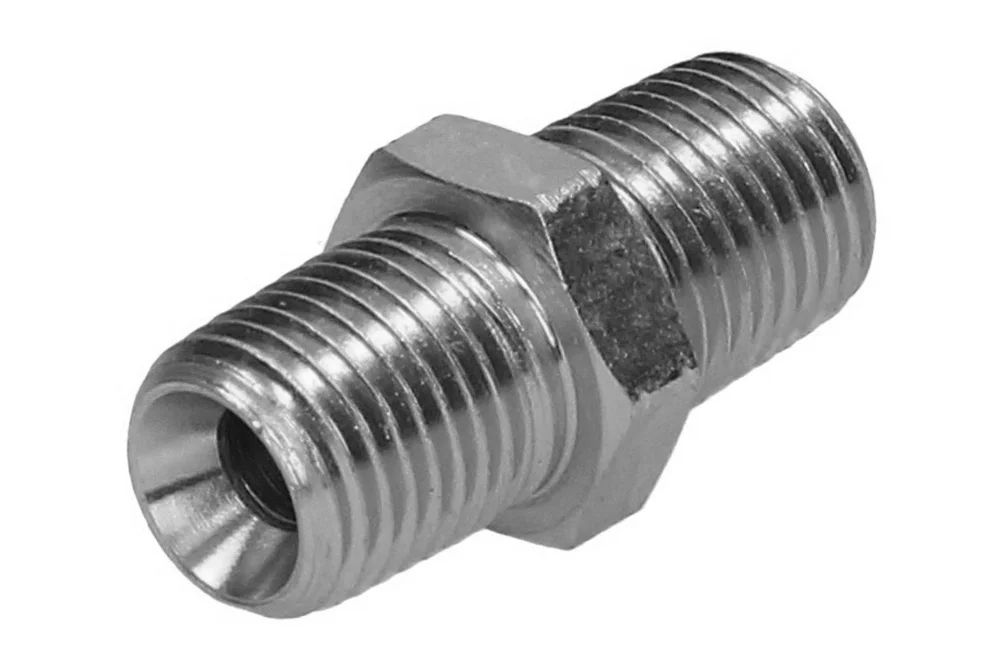

Adaptor with GZ NPT, stainless steel, type A301

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

High-pressure adapter type A301 with external NPT threads (thread seal). Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A301-02-02-SS	Adaptor GZ NPT 1/8" / GZ NPT 1/8", AISI 316	-	345	In stock	Enquiry
TI-A301-02-04-SS	Adaptor GZ NPT 1/8" / GZ NPT 1/4", AISI 316	-	345	In stock	Enquiry
TI-A301-02-06-SS	Adaptor GZ NPT 1/8" / GZ NPT 3/8", AISI 316	-	276	In stock	Enquiry
TI-A301-04-04-SS	Adaptor GZ NPT 1/4" / GZ NPT 1/4", AISI 316	-	345	In stock	Enquiry
TI-A301-04-06-SS	Adaptor GZ NPT 1/4" / GZ NPT 3/8", AISI 316	-	276	In stock	Enquiry
TI-A301-04-08-SS	Adaptor GZ NPT 1/4" / GZ NPT 1/2", AISI 316	-	241	In stock	Enquiry
TI-A301-06-06-SS	Adaptor GZ NPT 3/8" / GZ NPT 3/8", AISI 316	-	276	In stock	Enquiry
TI-A301-06-08-SS	Adaptor GZ NPT 3/8" / GZ NPT 1/2", AISI 316	-	241	In stock	Enquiry
TI-A301-08-08-SS	Adaptor GZ NPT 1/2" / GZ NPT 1/2", AISI 316	-	241	In stock	Enquiry
TI-A301-08-12-SS	Adaptor GZ NPT 1/2" / GZ NPT 3/4", AISI 316	-	155	In stock	Enquiry
TI-A301-08-16-SS	Adaptor GZ NPT 1/2" / GZ NPT 1", AISI 316	-	138	In stock	Enquiry
TI-A301-12-12-SS	Adaptor GZ NPT 3/4" / GZ NPT 3/4", AISI 316	-	155	In stock	Enquiry
TI-A301-12-16-SS	Adaptor GZ NPT 3/4" / GZ NPT 1", AISI 316	-	138	In stock	Enquiry
TI-A301-16-16-SS	Adaptor GZ NPT 1" / GZ NPT 1", AISI 316	-	138	In stock	Enquiry
TI-A301-16-20-SS	Adaptor GZ NPT 1" / GZ NPT 1.1/4", AISI 316	-	112	In stock	Enquiry
TI-A301-20-20-SS	Adaptor GZ NPT 1.1/4" / GZ NPT 1.1/4", AISI 316	-	112	In stock	Enquiry
TI-A301-24-24-SS	Adaptor GZ NPT 1.1/2" / GZ NPT 1.1/2", AISI 316	-	86	In stock	Enquiry
TI-A301-32-32-SS	Adaptor GZ NPT 2" / GZ NPT 2", AISI 316	-	78	In stock	Enquiry
