Is the 90Â° adjustable angle plug connector with female thread, type R34/F compatible with standard pneumatic hose sizes and fittings?

Yes . the 90Â° adjustable angle plug connector with female thread, type R34/F is compatible with standard pneumatic hose sizes and fittings, provided the mating hose or component matches its internal thread and nominal dimensions. Key compatibility points: - Thread interface: Because the connector has an internal (female) thread, compatibility depends on matching the external (male) thread type and size used in your system. Verify the thread standard (e.g., BSP, NPT, metric) and nominal size of the R34/F before connecting. - Sealing: The connector uses NBR sealing and is designed for repeated assemblies without loss of mechanical or pneumatic sealing, so it will maintain a reliable seal with properly matched threaded fittings. - Pressure and media: With a working pressure up to 12 bar and suitability for vacuum and air, it is appropriate for common pneumatic applications. - Temperature and material: Plastic construction and operating range â20Â°C to +60Â°C are standard for many pneumatic hoses; ensure your applicationâs temperature and chemical exposure are within these limits. In summary, the 90Â° adjustable angle plug connector with female thread, type R34/F will work with standard pneumatic hoses and fittings if the thread type/size and application conditions (pressure, temperature, media compatibility) match.

Can the 90Â° adjustable angle plug connector with female thread, type R34/F withstand continuous use at 12 bar without seal degradation?

Yes. The 90Â° adjustable angle plug connector with female thread, type R34/F is specified for a working pressure of 12 bar, uses NBR sealing, and is rated for continuous operation in air/vacuum between -20Â°C and +60Â°C. When used within these conditions (â¤12 bar, compatible medium, and temperature range) it should withstand continuous use without seal degradation. Ensure fittings are assembled correctly and avoid exposure to fluids, chemicals or temperatures outside the specified limits that could degrade NBR.

Does the 90Â° adjustable angle plug connector with female thread, type R34/F support quick assembly/disassembly without tools?

Yes. The 90Â° adjustable angle plug connector with female thread, type R34/F supports quick assembly and disassembly without tools. Its description specifies it is "easy and quick to use for multiple assemblies" while maintaining sealing on both mechanical and pneumatic sides, which indicates tool-free, repeatable connection and release. The plastic construction, NBR sealing, and suitability for vacuum and air up to 12 bar (â20 Â°C to +60 Â°C) further support reliable, swift handling in pneumatic systems.

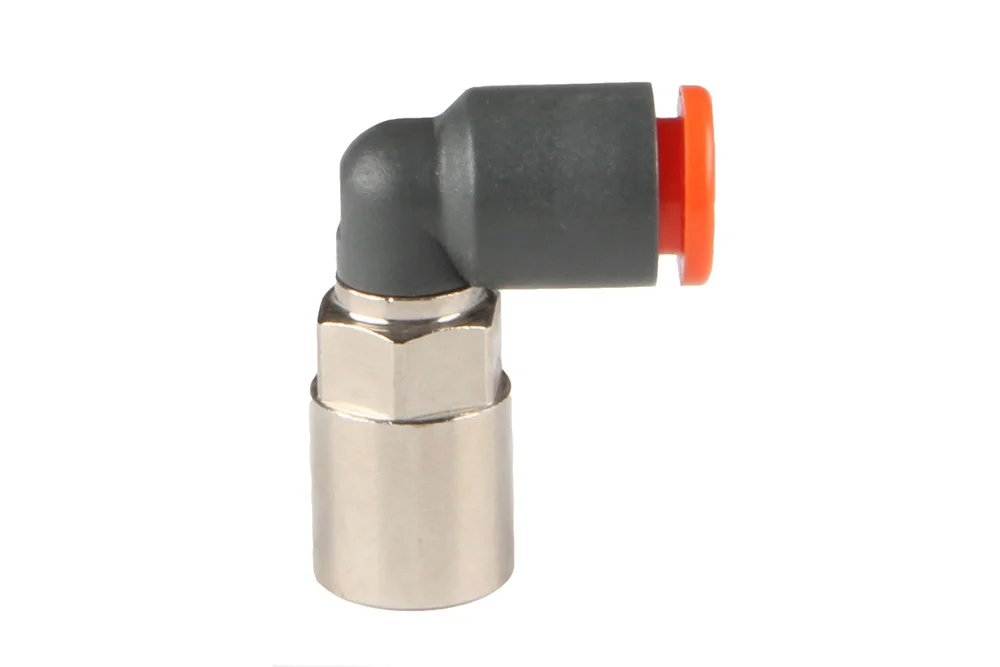

Coupling push-in angled 90° adjustable with a thread internal, type R34/F

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

Coupling push-in angled 90° adjustable with a thread internal, type R34/F, Intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: plastic plastic. Working pressure: 12 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +60°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2L34F01	Fitting angled adjustable RL34/F hose 4 mm, M5 female, plastic	-	12	In stock	Enquiry
MW-2L34F05	Fitting angled adjustable RL34/F hose 4 mm, 1/8" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F06	Fitting angled adjustable RL34/F hose 6 mm, M5 female, plastic	-	12	In stock	Enquiry
MW-2L34F07	Fitting angled adjustable RL34/F hose 6 mm, 1/8" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F08	Fitting angled adjustable RL34/F hose 6 mm, 1/4" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F09	Fitting angled adjustable RL34/F hose 8 mm, 1/8" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F10	Fitting angled adjustable RL34/F hose 8 mm, 1/4" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F13	Fitting angled adjustable RL34/F hose 10 mm, 1/4" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F14	Fitting angled adjustable RL34/F hose 10 mm, 3/8" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F16	Fitting angled adjustable RL34/F hose 12 mm, 3/8" BSP female, plastic	-	12	In stock	Enquiry
MW-2L34F17	Fitting angled adjustable RL34/F hose 12 mm, 1/2" BSP female, plastic	-	12	In stock	Enquiry
