Is the WE-MG adjustable angle screw connection, carbon steel, available in both L (light) and S (heavy) series and rated with a 4:1 safety factor?

Yes. The WE-MG adjustable angle screw connection, carbon steel is available in both L (light) and S (heavy) series and is rated with a 4:1 safety factor. It is a 24Â° DIN 2353 socket with external metric threads, sealed to ISO-6149 type G (oâring with retaining ring), made of galvanized carbon steel.

What mounting torque is recommended for the WE-MG adjustable angle screw connection, carbon steel, to maintain the 4:1 safety factor?

For the WE-MG adjustable angle screw connection, carbon steel (24Â° DIN 2353, ISOâ6149 G sealing) to retain a 4:1 safety factor, use the following recommended tightening torques: - Light series (L): 35â45 NÂ·m - Heavy series (S): 60â80 NÂ·m Apply torque gradually and verify with a calibrated torque wrench. If assembly conditions (lubrication, thread condition, temperature) differ, reduce torque by 10â20% or consult manufacturer data to ensure the 4:1 safety factor is maintained.

Does the WE-MG adjustable angle screw connection, carbon steel, use an O-ring with retaining ring per ISO-6149 type G?

Yes. The WE-MG adjustable angle screw connection, carbon steel uses an O-ring with retaining ring per ISO 6149 type G (24Â° DIN 2353 socket with external metric thread; sealing ISOâ6149 type G).

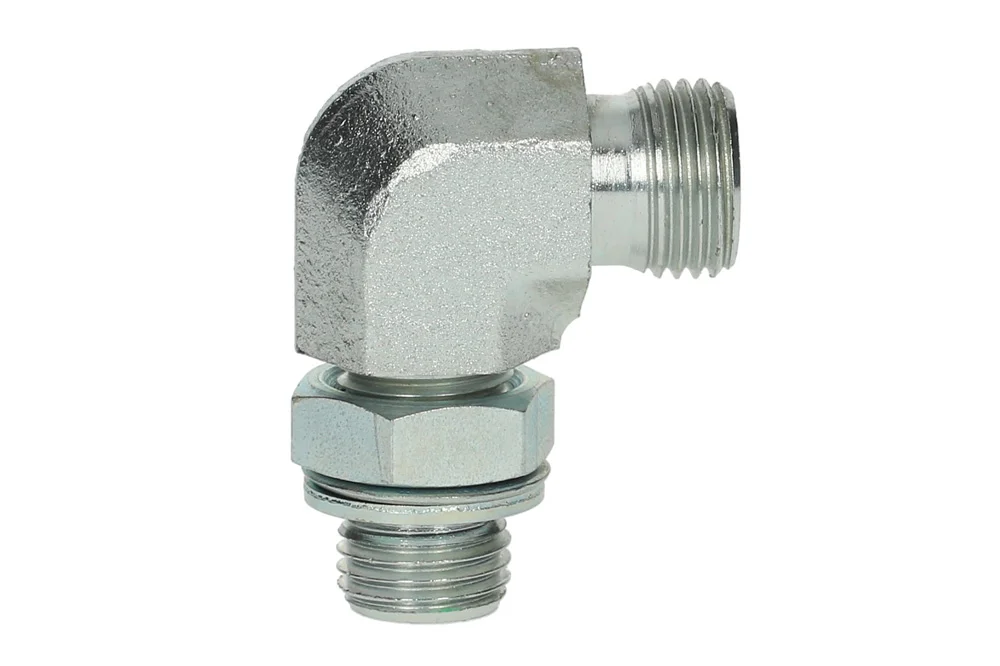

Fitting screw-in angled adjustable WE-MG, carbon steel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 screw-in angled adjustable, type WE-MG: 24° DIN 2353 socket with metric male thread and with metric male thread (sealing ISO-6149 type G – an O-ring with a retaining ring). Safety factor 4:1. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WE-06L-MG-10	Fitting DIN 2353 WE 6L M10x1	-	315	In stock	Enquiry
HD-WE-06S-MG-12	Fitting DIN 2353 WE 6S M12x1.5	-	315	In stock	Enquiry
HD-WE-08L-MG-12	Fitting DIN 2353 WE 8L M12x1.5	-	315	In stock	Enquiry
HD-WE-08S-MG-14	Fitting DIN 2353 WE 8S M14x1.5	-	315	In stock	Enquiry
HD-WE-10L-MG-14	Fitting DIN 2353 WE 10L M14x1.5	-	315	In stock	Enquiry
HD-WE-10S-MG-16	Fitting DIN 2353 WE 10S M16x1.5	-	315	In stock	Enquiry
HD-WE-12L-MG-16	Fitting DIN 2353 WE 12L M16x1.5	-	315	In stock	Enquiry
HD-WE-12S-MG-18	Fitting DIN 2353 WE 12S M18x1.5	-	315	In stock	Enquiry
HD-WE-14S-MG-20	Fitting DIN 2353 WE 14S M20x1.5	-	250	In stock	Enquiry
HD-WE-15L-MG-18	Fitting DIN 2353 WE 15L M18x1.5	-	315	In stock	Enquiry
HD-WE-16S-MG-22	Fitting DIN 2353 WE 16S M22x1.5	-	250	In stock	Enquiry
HD-WE-18L-MG-22	Fitting DIN 2353 WE 18L M22x1.5	-	250	In stock	Enquiry
HD-WE-20S-MG-27	Fitting DIN 2353 WE 20S M27x2	-	250	In stock	Enquiry
HD-WE-22L-MG-27	Fitting DIN 2353 WE 22L M27x2	-	160	In stock	Enquiry
HD-WE-25S-MG-33	Fitting DIN 2353 WE 25S M33x2	-	160	In stock	Enquiry
HD-WE-28L-MG-33	Fitting DIN 2353 WE 28L M33x2	-	160	In stock	Enquiry
HD-WE-30S-MG-42	Fitting DIN 2353 WE 30S M42x2	-	160	In stock	Enquiry
HD-WE-35L-MG-42	Fitting DIN 2353 WE 35L M42x2	-	160	In stock	Enquiry
HD-WE-38S-MG-48	Fitting DIN 2353 WE 38S M48x2	-	160	In stock	Enquiry
HD-WE-42L-MG-48	Fitting DIN 2353 WE 42L M48x2	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 screw-in angled adjustable, type WE-MG: 24° DIN 2353 socket with metric male thread and with metric male thread (sealing ISO-6149 type G – an O-ring with a retaining ring). Safety factor 4:1. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.
