Is the Air gun with a 90 mm bent nozzle, series 208 safe to use with non-explosive fluids at the rated 16 bar working pressure?

Yes. The Air gun with a 90 mm bent nozzle, series 208 is designed for air, water and non-explosive fluids and its specifications support safe use with non-explosive fluids at the rated working pressure of 16 bar. Key points supporting safety: - Intended application: explicitly designed for water and non-explosive fluids. - Materials and seals: POM body, brass valve and NBR sealing are compatible with typical non-explosive liquids in the stated temperature range. - Pressure ratings: rated working pressure 16 bar and burst pressure 64 bar provide a safety margin. - Operating limits: specified temperature range â20Â°C to +60Â°C must be respected. Conditions and cautions: - Use only non-explosive, chemically compatible fluids (check chemical compatibility with POM, brass and NBR). - Do not exceed the 16 bar working pressure or the specified temperature range. - The 90 mm bent nozzle is non-replaceable; ensure flow and cleanliness requirements are met. - Follow applicable safety standards and user instructions for pressure equipment and fluid handling. When these conditions are met, the Air gun with a 90 mm bent nozzle, series 208 can be used safely with non-explosive fluids at 16 bar.

Can the Air gun with a 90 mm bent nozzle, series 208 be used outdoors in temperatures down to -20Â°C without performance loss?

Yes. The Air gun with a 90 mm bent nozzle, series 208 can be used outdoors in temperatures down to -20Â°C without performance loss. The product specification lists an operating temperature range from -20Â°C to +60Â°C, and its materials (POM body, brass valve, NBR seals) and rated working pressure (16 bar) support reliable operation within that range. Ensure proper storage and avoid exposure beyond the stated limits.

Can the Air gun with a 90 mm bent nozzle, series 208 be used to blow contaminants from tight crevices without nozzle replacement?

Yes. The Air gun with a 90 mm bent nozzle, series 208 is designed specifically for blowing out contaminants in hard-to-reach places and features a permanently fixed 90 mm bent nozzle (non-replaceable). Its high blowing force, adjustable flow size, lightweight ergonomic design and low trigger pull make it suitable for cleaning tight crevices without the need to change the nozzle. Considerations: ensure working pressure does not exceed 16 bar and operate within -20Â°C to +60Â°C for safe, effective use.

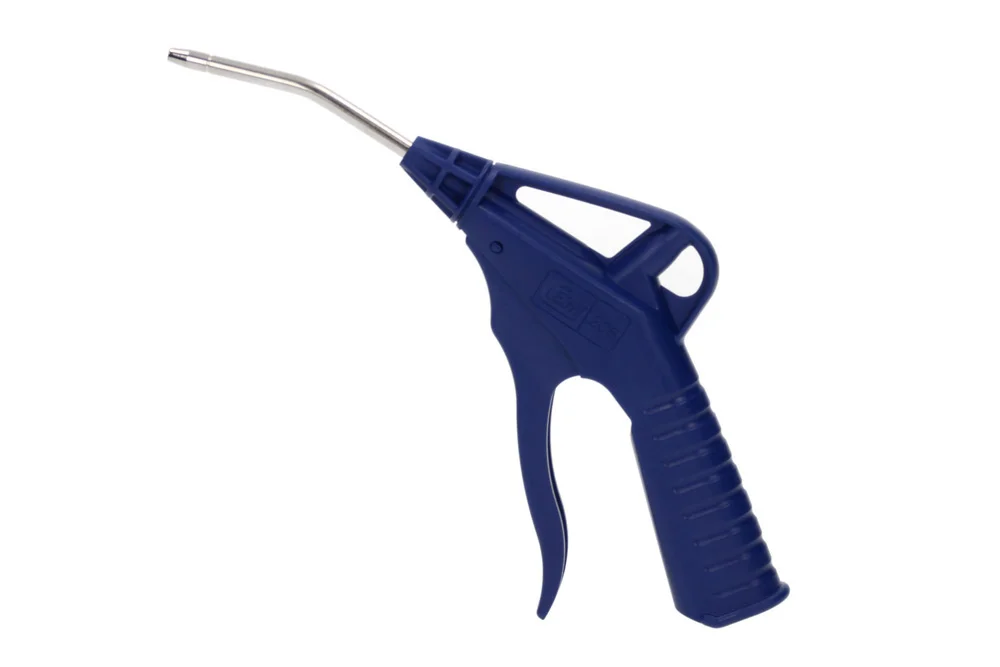

An air gun with nozzle bent 90 mm, series 208

Air guns, All products/

Additional information

A universal gun for air, water and also non-explosive liquids. Intended mainly for blowing out contamination, also in hard-to-reach places. It is characterized by a strong blowing force, with the possibility of adjusting the flow rate. Lightweight construction, ergonomic gun shape and low trigger press force ensure great working comfort. As standard, the gun is equipped with a socket with a 1/4″ BSP or 1/4″ NPT thread. this model Available is in version with nozzle 90 mm bent, which nie is replaceable. Material: POM (body), brass (valve) Sealing: NBR. pressure working: 16 bar. pressure bursting: 64 bar. Operating temperature: from -20°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-112080100	Air gun CEJN, nozzle bent, orifice dia. 3.5 mm, L=90 mm, 1/4" BSP female	-	16	In stock	0 zł		Enquiry
CJ-112080150	Gun CEJN 1/4" NPT, with nozzle 90 mm bent	-	16	In stock	0 zł		Enquiry
