Is the BANJO elbow body, type R13 compatible with standard D-series screws and multiple assembly/disassembly without losing pneumatic or mechanical sealing?

Yes. The BANJO elbow body, type R13 for screws of series D is designed specifically for standard D-series screws and supports repeated assembly/disassembly without loss of pneumatic or mechanical sealing. Key points from the product description: - Compatibility: Intended for screws of series D, so it matches standard Dâseries threaded connections. - Repeated use: Described as easy and quick to use for multiple assemblies without loss of sealing on both mechanical and pneumatic sides. - Sealing system: Uses NBR sealing, suitable for air and vacuum applications. - Performance limits: Nickelâplated brass body, working pressure up to 16 bar, temperature range â20 Â°C to +80 Â°C . within these conditions repeated assembly/disassembly should maintain integrity. Conclusion: Within specified pressure, temperature and media limits, BANJO elbow body, type R13 is compatible with standard Dâseries screws and supports multiple assembly/disassembly cycles without losing pneumatic or mechanical sealing.

Can BANJO elbow body, type R13 maintain sealing after repeated disassembly with D-series screws?

Yes. BANJO elbow body, type R13 for screws of series D is designed for repeated assemblies without loss of sealing on both mechanical and pneumatic sides. Made of nickel-plated brass with NBR seals, it supports vacuum and air up to 16 bar and operates from -20Â°C to +80Â°C, allowing multiple disassemblies and reassemblies while maintaining sealing integrity.

Does the BANJO elbow body, type R13 require re-torquing after repeated disassembly with D-series screws?

Based on the product description of BANJO elbow body, type R13, for screws of series D: the fitting is designed for repeated assembly and disassembly without loss of mechanical or pneumatic sealing. That implies the joint is intended to maintain seal integrity after multiple cycles and therefore does not normally require re-torquing solely because of repeated disassembly, provided the correct screws of series D are used, seals (NBR) are undamaged, and assembly is performed per manufacturerâs recommended torque and installation practice. However, good practice: after reassembly always check for leaks and proper mechanical retention. If screws, threads, or NBR seals show wear, deformation or damage, replace them and re-torque to the specified value. Also follow any specific torque values or service instructions from the manufacturer and consider re-torquing after the first pressure cycle if recommended for your application.

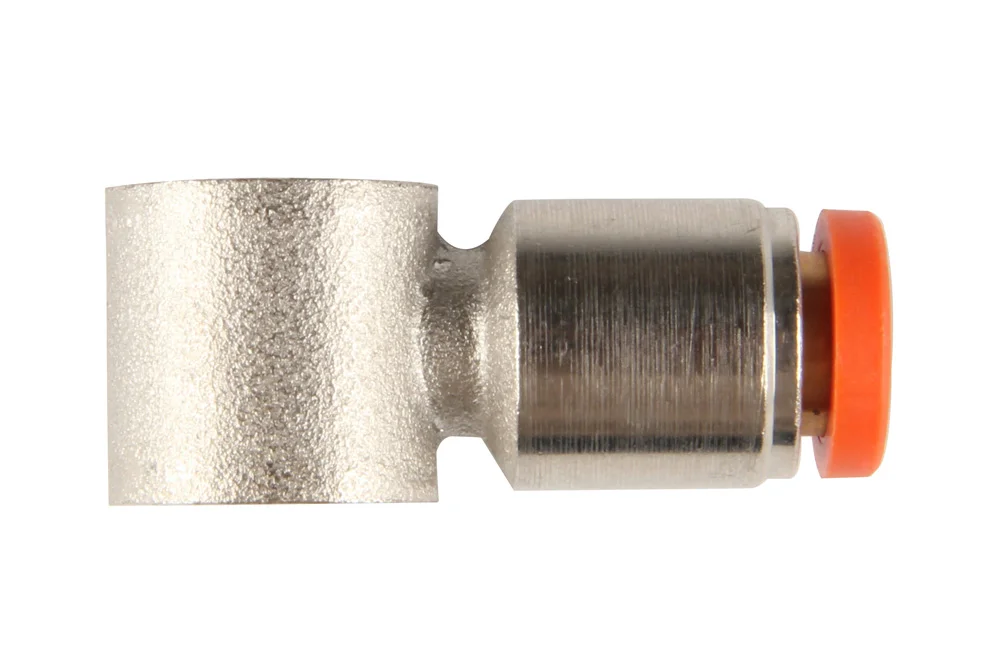

Body elbow BANJO, type R13

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Body elbow BANJO, type R13, for bolts series D, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2012001	Fitting angled BANJO RL13 hose 4 mm, for bolts M5	-	16	In stock	Enquiry
MW-2012002	Fitting angled BANJO RL13 hose 4 mm, for bolts BSP 1/8"	-	16	In stock	Enquiry
MW-2012003	Fitting angled BANJO R13 hose 5 mm, for bolts M5	-	16	In stock	Enquiry
MW-2012004	Fitting angled BANJO R13 hose 5 mm, for bolts BSP 1/8"	-	16	In stock	Enquiry
MW-2012005	Fitting angled BANJO RL13 hose 6 mm, for bolts BSP 1/8"	-	16	In stock	Enquiry
MW-2012006	Fitting angled BANJO RL13 hose 6 mm, for bolts BSP 1/4"	-	16	In stock	Enquiry
MW-2012007	Fitting angled BANJO RL13 hose 8 mm, for bolts BSP 1/8"	-	16	In stock	Enquiry
MW-2012008	Fitting angled BANJO RL13 hose 8 mm, for bolts BSP 1/4"	-	16	In stock	Enquiry
MW-2012009	Fitting angled BANJO RL13 hose 8 mm, for bolts BSP 3/8"	-	16	In stock	Enquiry
MW-2012010	Fitting angled BANJO RL13 hose 10 mm, for bolts BSP 1/4"	-	16	In stock	Enquiry
MW-2012011	Fitting angled BANJO RL13 hose 10 mm, for bolts BSP 3/8"	-	16	In stock	Enquiry
MW-2012012	Fitting angled BANJO RL13 hose 12 mm, for bolts BSP 3/8"	-	16	In stock	Enquiry
MW-2012013	Fitting angled BANJO RL13 hose 12 mm, for bolts BSP 1/4"	-	16	In stock	Enquiry
MW-2012014	Fitting angled BANJO RL13 hose 12 mm, for bolts BSP 1/2"	-	16	In stock	Enquiry
MW-2012A01	Fitting BANJO R13 hose 3.17 mm, for bolts M5	-	16	In stock	Enquiry
MW-2012A02	Fitting BANJO R13 hose 3 mm, for bolts M5	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Body elbow BANJO, type R13, for bolts series D, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.
