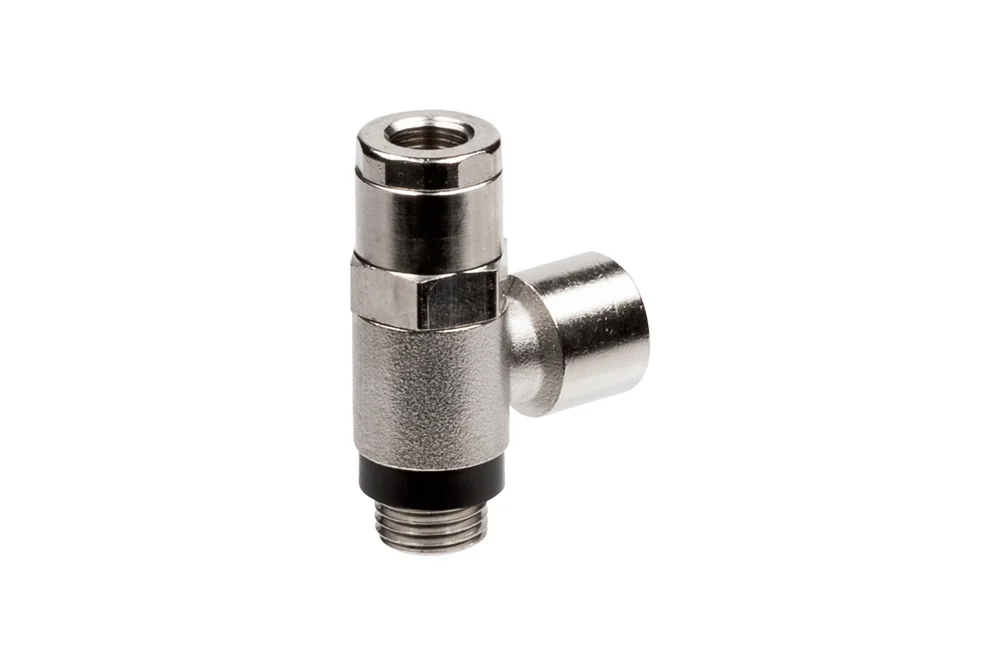

STOP STP-U brass pneumatic shut-off valve with GW check valve

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

STOP shut-off valve series STP-U with a check valve and internal thread, primarily used as a safety valve. When installed on the actuator’s supply connections, it allows airflow only in the presence of a pneumatic control signal. The actuator is stopped after a drop in control pressure. Operating pressure: 0.5 ÷ 10 bar. Operating temperature: from -10°C to +60°C. Body material: nickel-plated brass. Sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W6001001001	STOP valve with STP-U check valve, G 1/8" / GZ 1/8", pilot G M5	-	10	In stock	Enquiry
MW-W6001011011	STOP valve with STP-U check valve, G 1/4" / GZ 1/4", pilot G 1/8"	-	10	In stock	Enquiry
MW-W6001021021	STOP valve with STP-U check valve, G 3/8" / GZ 3/8", pilot G 1/8"	-	10	In stock	Enquiry
