Is the CAMLOCK B connector socket with male thread, polypropylene compatible with standard BSPT hoses and fittings under 7 bar working pressure?

Yes . the CAMLOCK B connector socket with male thread, polypropylene is compatible with standard BSPT hoses and fittings for applications up to 7 bar, with some important clarifications: - Thread type: It is manufactured with an external BSPT (British Standard Pipe Taper) male thread per MIL-C-27487 (A-A-59326), so it will mate correctly with components specified as BSPT (tapered) threads. - Pressure rating: The stated working pressure is up to 7 bar (depending on connector size). Ensure the selected connector size supports the required pressure within that 7 bar limit. - Materials and sealing: Body is glass-fiber-reinforced polypropylene, levers are AISI 304 steel, and the seal is EPDM . suitable for many petrochemical transfer applications but verify chemical compatibility of EPDM and polypropylene with your specific fluid and temperature range. - Installation notes: Because BSPT is a tapered thread, proper sealing (e.g., thread sealant, PTFE tape, or compatible sealant) and correct torque are required to achieve leak-free joints. Confirm mating hose/fitting is BSPT (not parallel BSPP) to avoid improper fit. If your hoses/fittings are standard BSPT and compatible with EPDM and polypropylene for your fluid and temperature, the CAMLOCK B connector socket with male thread, polypropylene will be suitable up to the specified 7 bar (subject to size limits).

Can CAMLOCK B connector socket with male thread, polypropylene withstand corrosive petrochemical fluids at up to 7 bar?

Short answer: Maybe - with significant limitations. CAMLOCK B connector socket with male thread, polypropylene is made from glass fiber reinforced polypropylene, has EPDM seals and AISI 304 steel levers, and is rated for working pressures up to 7 bar (size-dependent). This construction provides good chemical resistance to many hydrocarbons and common petrochemical fluids at moderate pressure and temperature. However: polypropylene and EPDM have limited resistance to some strong solvents, aromatic hydrocarbons, chlorinated solvents and certain aggressive corrosives used in petrochemical processes. AISI 304 levers can corrode in highly chlorideârich or acidic environments. Compatibility depends on the specific fluid composition, concentration, temperature and exposure time. Recommendation: Verify chemical compatibility of glassâfiber polypropylene and EPDM with the exact fluid and operating temperature (use a chemical compatibility chart or supplier datasheet) and consider AISI 316 or specialized materials if corrosive agents are present.

Does CAMLOCK B connector socket with male thread, polypropylene support quick disconnection under full 7 bar pressure?

No. CAMLOCK B connector socket with male thread, polypropylene is not designed for quick disconnection under full 7 bar working pressure. Why: The description states a working pressure "up to 7 bar, depending on the size of the connector," which indicates the rated pressure is the maximum pressure for safe use when the coupling is properly assembled and locked. Camlock (MILâCâ27487 / AâAâ59326) couplings achieve sealing and mechanical retention through the cam arms and gasket; they are not intended to be opened under pressure. Attempting to uncouple while the line is pressurized risks rapid ejection of the coupler halves, violent release of fluid, damage to seals or cams, and serious injury. Practical recommendations: - Depressurize and drain the line before disconnecting the CAMLOCK B connector socket with male thread, polypropylene. - Use an isolation valve or a pressureârelief procedure and verify zero pressure before unlocking cam arms. - For applications requiring live (hot) disconnection, consider couplings specifically rated and designed for underâpressure breakaway or quickâdisconnect service with integrated safety features. Conclusion: Treat the 7 bar rating as the maximum operating pressure, not as permission to disconnect under pressure.

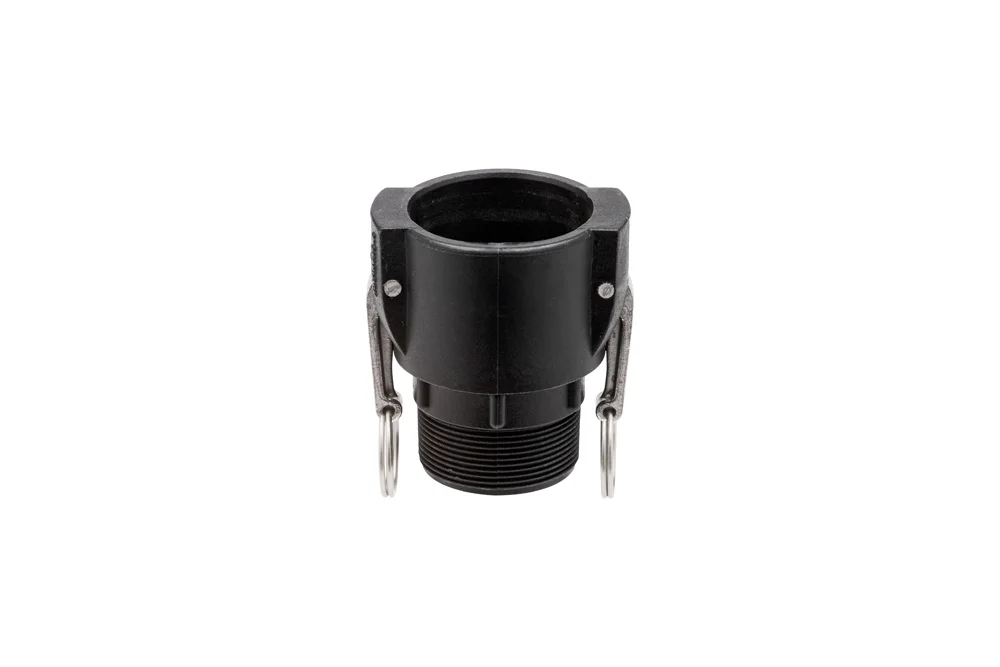

CAMLOCK B connector socket with male thread, polypropylene

Additional information

Material	P – material (plastic)

CAMLOCK B connector socket with external BSPT thread made according to the American military standard MIL-C-27487 (A-A-59326), commonly used as a transfer connection, particularly in the petrochemical industry. Working pressure: up to 7 bar, depending on the size of the connector. Material: glass fiber reinforced polypropylene. Levers: AISI 304 steel. Sealing: EPDM.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-B-050-P	CAMLOCK B 3/4" connector, GZ 1/2" polypropylene	-	5	In stock	Enquiry
AC-B-050-PX	CAMLOCK B 3/4" connector, GZ 1/2" polypropylene	-	5	In stock	Enquiry
AC-B-075-P	CAMLOCK B 3/4" polypropylene connector	-	7	In stock	Enquiry
AC-B-075-PX	CAMLOCK B 3/4" polypropylene connector	-	7	In stock	Enquiry
AC-B-100-P	CAMLOCK B 1" polypropylene connector	-	7	In stock	Enquiry
AC-B-100-PX	CAMLOCK B 1" polypropylene connector	-	7	In stock	Enquiry
AC-B-125-P	CAMLOCK B 1" connector, GZ 1.1/4" polypropylene	-	7	In stock	Enquiry
AC-B-150-P	CAMLOCK B 1.1/2" polypropylene connector	-	7	In stock	Enquiry
AC-B-150-PX	CAMLOCK B 1.1/2" polypropylene connector	-	7	In stock	Enquiry
AC-B-200-P	CAMLOCK B 2" polypropylene connector	-	7	In stock	Enquiry
AC-B-200-PX	CAMLOCK B 2" polypropylene connector	-	7	In stock	Enquiry
AC-B-300-P	CAMLOCK B 3" polypropylene connector	-	4	In stock	Enquiry
AC-B-300-PX	CAMLOCK B 3" polypropylene connector	-	4	In stock	Enquiry
AC-B-400-P	CAMLOCK B 4" polypropylene connector	-	4	In stock	Enquiry
AC-B-400-PX	CAMLOCK B 4" connector, polypropylene	-	4	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CAMLOCK B connector socket with external BSPT thread made according to the American military standard MIL-C-27487 (A-A-59326), commonly used as a transfer connection, particularly in the petrochemical industry. Working pressure: up to 7 bar, depending on the size of the connector. Material: glass fiber reinforced polypropylene. Levers: AISI 304 steel. Sealing: EPDM.
