Is the CAMLOCK BW connector socket for welding, stainless steel compatible with fluids at up to 10 bar working pressure and petrochemical applications?

Yes. The CAMLOCK BW connector socket for welding, stainless steel is suitable for fluid service up to 10 bar and for petrochemical applications. It is manufactured to the MILâCâ27487 (AâAâ59326) standard, commonly used as a transfer connection in the petrochemical industry. Constructed from AISI 316 stainless steel with AISI 304 levers and NBR seals, it supports working pressures up to 10 bar (depending on connector size) and offers chemical resistance and mechanical properties appropriate for typical petrochemical fluids. Ensure compatibility with specific media, temperatures, and regulatory requirements for your application (particularly NBR seal limitations with some aggressive chemicals or high temperatures).

Can CAMLOCK BW connector socket for welding, stainless steel withstand exposure to common petrochemical solvents and hydrocarbons?

Yes - CAMLOCK BW connector socket for welding, stainless steel is suitable for exposure to many common petrochemical solvents and hydrocarbons. Made of AISI 316 stainless steel body (with AISI 304 levers) it provides good corrosion resistance to a wide range of organic solvents and hydrocarbon fuels. Sealing is NBR (nitrile), which is broadly compatible with oils, fuels, and many hydrocarbon solvents but has limited resistance to strong aromatics, chlorinated solvents, ketones, and certain polar solvents. Working pressure up to 10 bar (size-dependent) is adequate for typical transfer applications. For specific chemicals, temperatures, and concentrations, verify compatibility of both AISI 316 and NBR with the exact fluid and operating temperature to ensure long-term service.

Does the CAMLOCK BW connector socket for welding, stainless steel meet MIL-C-27487 (A-A-59326) military standards?

No. the CAMLOCK BW connector socket for welding, stainless steel as described does not meet MIL-C-27487 (A-A-59326). The provided description explicitly states that the CAMLOCK FW connector socket for welding (butt welding) is made according to the American military standard MIL-C-27487 (A-A-59326). There is no statement that the CAMLOCK BW connector socket for welding, stainless steel conforms to that standard. Unless the manufacturer explicitly certifies the CAMLOCK BW model to MIL-C-27487 (A-A-59326) in its documentation or marking, you should not assume compliance. To confirm compliance, request the manufacturerâs certification/test reports or specification sheet for the CAMLOCK BW connector socket for welding, stainless steel showing MIL-C-27487 (A-A-59326) conformity.

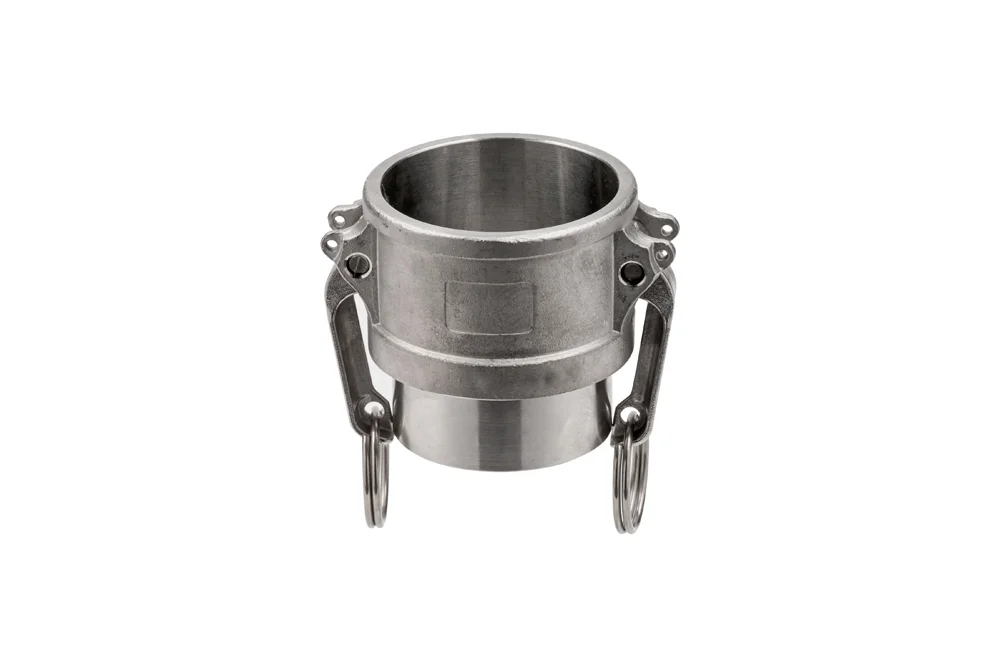

CAMLOCK BW connector socket for welding, stainless steel

Additional information

Material	SS – stainless steel
Standard length [m]	2, 3, 6

CAMLOCK FW connector socket for welding (butt welding) made according to the American military standard MIL-C-27487 (A-A-59326), commonly used as a transfer connection, particularly in the petrochemical industry. Working pressure: up to 10 bar, depending on the size of the connector. Material: AISI 316 steel. Levers: AISI 304 steel. Sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-BW-050-SS	CAMLOCK BW 1/2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-050-SSX	CAMLOCK BW 1/2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-075-SS	CAMLOCK BW 3/4" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-075-SSX	CAMLOCK BW 3/4" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-100-SS	CAMLOCK BW 1" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-100-SSX	CAMLOCK BW 1" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-125-SS	CAMLOCK BW 1.1/4" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-125-SSX	CAMLOCK BW 1.1/4" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-150-SS	CAMLOCK BW 1.1/2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-150-SSX	CAMLOCK BW 1.1/2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-200-SS	CAMLOCK BW 2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-200-SSX	CAMLOCK BW 2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-250-SS	CAMLOCK BW 2.1/2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-250-SSX	CAMLOCK BW 2.1/2" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-300-SS	CAMLOCK BW 3" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-300-SSX	CAMLOCK BW 3" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-400-SS	CAMLOCK BW 4" connector, AISI 316	-	10	In stock	Enquiry
AC-BW-400-SSX	CAMLOCK BW 4" connector, AISI 316	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CAMLOCK FW connector socket for welding (butt welding) made according to the American military standard MIL-C-27487 (A-A-59326), commonly used as a transfer connection, particularly in the petrochemical industry. Working pressure: up to 10 bar, depending on the size of the connector. Material: AISI 316 steel. Levers: AISI 304 steel. Sealing: NBR.
