Is the Plug connector, connector, type R7 suitable for use with vacuum and compressed air at temperatures between -20Â°C and +80Â°C and a working pressure of 16 bar?

Yes. The Plug connector connector, type R7 is suitable. Its specifications list nickel-plated brass construction, compatibility with vacuum and air as working media, an operating temperature range of â20Â°C to +80Â°C, and a working pressure of 16 bar . all matching the conditions you described.

Can the Plug connector connector, type R7 (nickel-plated brass) withstand continuous use at 16 bar with vacuum and air across -20Â°C to +80Â°C?

Yes. Plug connector connector, type R7 (nickel-plated brass) is specified for a working pressure of 16 bar, for use with vacuum and air, and for an operating temperature range of â20Â°C to +80Â°C. Based on those specifications, it is rated to withstand continuous use at 16 bar with vacuum and air across â20Â°C to +80Â°C. Ensure proper installation, maintenance, and that application conditions (pressure spikes, chemical exposure, mechanical stress) do not exceed the stated ratings.

Does the Plug connector, connector, type R7 (nickel-plated brass) require special maintenance when used at 16 bar with vacuum/air and -20Â°C to +80Â°C?

No special maintenance beyond standard good-practice measures is required for the Plug connector connector, type R7 when used at 16 bar with vacuum/air in the temperature range â20 Â°C to +80 Â°C. Recommended routine actions: - Periodic visual inspection for external damage, corrosion of the nickel-plated brass, deformation or wear of sealing surfaces and threads. - Check seals (O-rings) for hardening, cracking or extrusion; replace if any sign of deterioration. Use seal materials compatible with vacuum/air and the specified temperature range. - Ensure connections are clean and free of debris before assembly to maintain sealing and prevent contamination of the medium. - Confirm correct assembly and proper torque to avoid leaks or thread damage; follow any manufacturer torque/specification guidance if available. - Monitor for leaks during initial use and after thermal cycling or mechanical stress; perform leak tests appropriate for vacuum/air service. - If used in aggressive or corrosive environments beyond normal air, consider more frequent inspection or additional protective measures despite the nickel plating. If you need absolute assurance for a critical application, consult the connector manufacturer for detailed maintenance intervals, compatible seal materials and any application-specific recommendations.

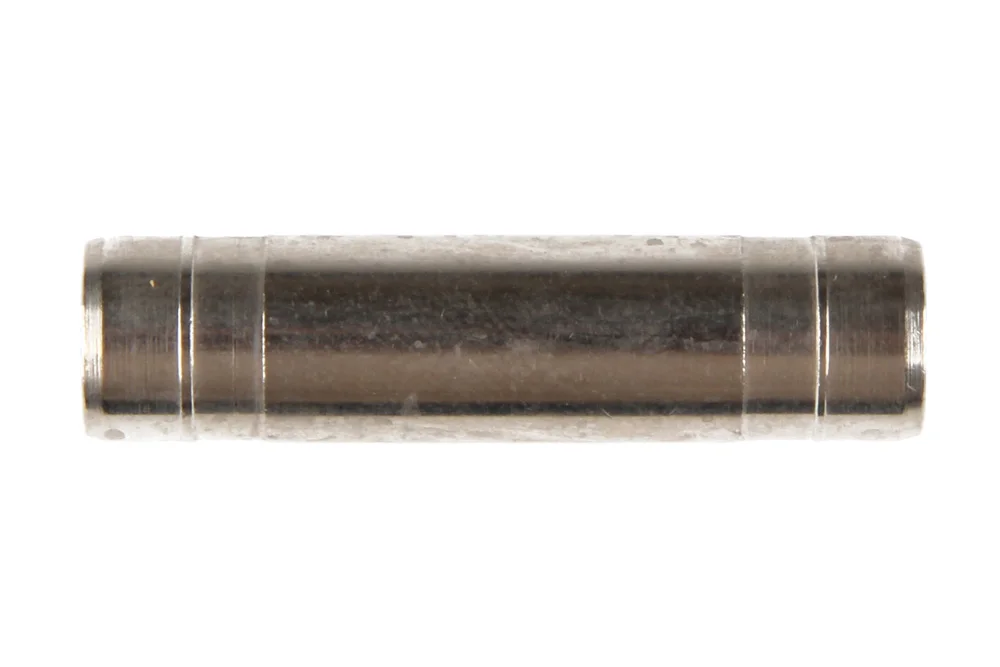

Connector fitting push-in, type R7

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Connector fitting push-in, type R7. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2007001	Fitting connector R7 with spigots 4 mm	-	16	In stock	Enquiry
MW-2007002	Fitting connector R7 with spigots 5 mm	-	16	In stock	Enquiry
MW-2007003	Fitting connector R7 with spigots 6 mm	-	16	In stock	Enquiry
MW-2007005	Fitting connector R7 with spigots 10 mm	-	16	In stock	Enquiry
MW-2007006	Fitting connector R7 with spigots 12 mm	-	16	In stock	Enquiry
MW-2007007	Fitting connector R7 with spigots 14 mm	-	16	In stock	Enquiry
MW-2L07004	Fitting connector RL7 with spigots 8 mm	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Connector fitting push-in, type R7. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C.
