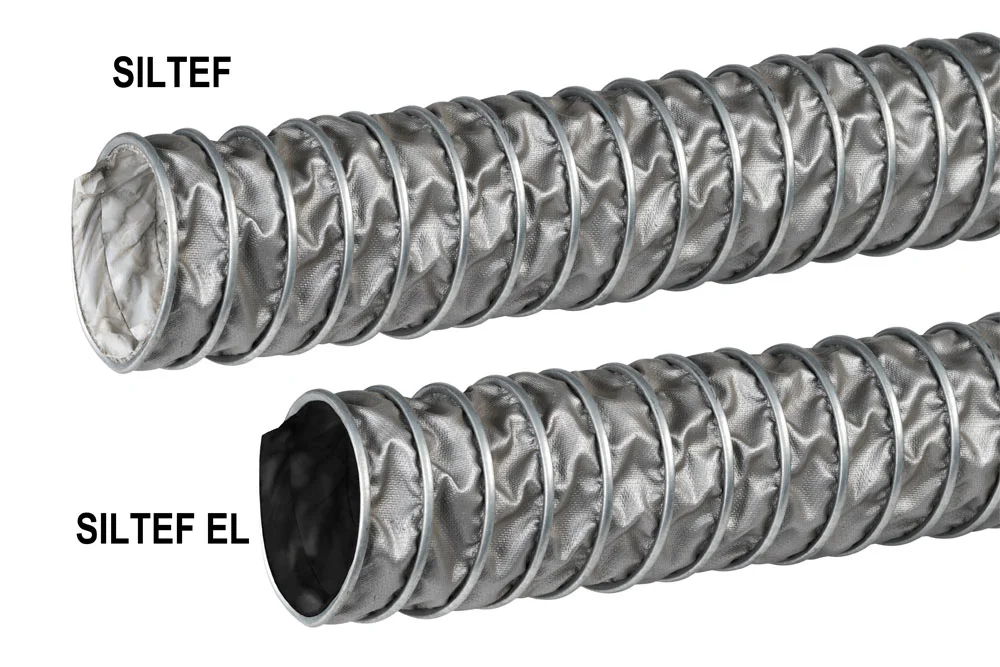

Hose ducting for conveying aggressive chemical vapours with a temperature up to 250°C GRIPFLEX SILTEF, GRIPFLEX SILTEF EL
Light, very flexible and pliable, resistant chemical and temperature-wise two-layer hose intended for discharge most aggressive chemical vapours, gases, dusts and fibres (non-abrasive), air blowing hot air. very good resistance chemical on aggressive chemicals thanks to internal layer PTFE. W version standard inner Layer white natural PTFE meets requirements industry food (FDA). W version antistatic EL black inner Layer PTFE is electrically conductive (R ≤10 6 Ω). thanks to layer outer with fabric glass coated silicone and layer internal with PTFE hose is resistant to temperature for 250ºC. hose is characterized high compressibility – for 1:6, strong design resistant on vibration, stretching and tearing, resistance on impacts thanks to outer spiral. resistant to radiation UV, ozone, aging, conditions atmospheric, flame-retardant. used in industry chemical, metallurgy metals and foundry, industry ceramic and glass. Also available with a stainless steel spiral (from 80 mm diameter). Assembly of the hose on connectors with bridge clamps (lewo-handed). Checking chemical resistance – the chemical resistance table for PTFE (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. length standard: od 2 for 10 m. Material hose Inner layer: white foil PTFE PTFE – version standard SILTEF, black conductive foil PTFE PTFE – version antistatic SITEF EL. Material hose Outer layer: fabric glass coated silicone, silver – grey. Reinforcement: outer spiral with wire and sheet steel galvanized. Operating temperature: od -50°C up to +250°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Light, very flexible and pliable, resistant chemical and temperature-wise two-layer hose intended for discharge most aggressive chemical vapours, gases, dusts and fibres (non-abrasive), air blowing hot air. very good resistance chemical on aggressive chemicals thanks to internal layer PTFE. W version standard inner Layer white natural PTFE meets requirements industry food (FDA). W version antistatic EL black inner Layer PTFE is electrically conductive (R ≤10 6 Ω). thanks to layer outer with fabric glass coated silicone and layer internal with PTFE hose is resistant to temperature for 250ºC. hose is characterized high compressibility – for 1:6, strong design resistant on vibration, stretching and tearing, resistance on impacts thanks to outer spiral. resistant to radiation UV, ozone, aging, conditions atmospheric, flame-retardant. used in industry chemical, metallurgy metals and foundry, industry ceramic and glass. Also available with a stainless steel spiral (from 80 mm diameter). Assembly of the hose on connectors with bridge clamps (lewo-handed). Checking chemical resistance – the chemical resistance table for PTFE (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. length standard: od 2 for 10 m. Material hose Inner layer: white foil PTFE PTFE – version standard SILTEF, black conductive foil PTFE PTFE – version antistatic SITEF EL. Material hose Outer layer: fabric glass coated silicone, silver – grey. Reinforcement: outer spiral with wire and sheet steel galvanized. Operating temperature: od -50°C up to +250°C.
Additional information
| Material | PTFE – teflon and similar |
|---|---|
| Maximum operating temperature [°C] | 250 |
| Minimum operating temperature [°C] | -50 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 2, 6, 60 |
| Reinforcement | external spiral made of galvanized steel wire and sheet metal |
