What noise reduction (dB) can I expect from the MWSPL dynamic muffler with GZ, black acetal resin at 5 bar, 1 m distance and 45Â°?

The MWSPL dynamic muffler with GZ, black acetal resin provides an average noise reduction of about 30 dB when measured at 5 bar supply pressure, at 1 m distance and 45Â° from the silencer axis. Actual reduction can vary by size and installation, but 30 dB is the typical performance figure for these conditions.

How effective is the MWSPL dynamic muffler with GZ, black acetal resin at 5 bar, 1 m distance and 45Â° for reducing compressor noise?

The MWSPL dynamic muffler with GZ, black acetal resin is highly effective: tested at 5 bar, 1 m distance and 45Â° it achieves an average noise reduction of about 30 dB (varies by size). Made of black acetal resin with acoustic insulation, itâs suitable for compressor systems and operates between â10Â°C and +60Â°C with a working pressure up to 6 bar.

Does the MWSPL dynamic muffler with GZ, black acetal resin cut noise by about 30 dB at 5 bar, 1 m, 45Â°?

Yes. The MWSPL dynamic muffler with GZ, black acetal resin reduces noise by about 30 dB at a supply pressure of 5 bar, measured at a distance of 1 m and at a 45Â° angle from the silencer axis (actual reduction may vary by size). Operating temperature: -10Â°C to +60Â°C. Maximum working pressure: 6 bar.

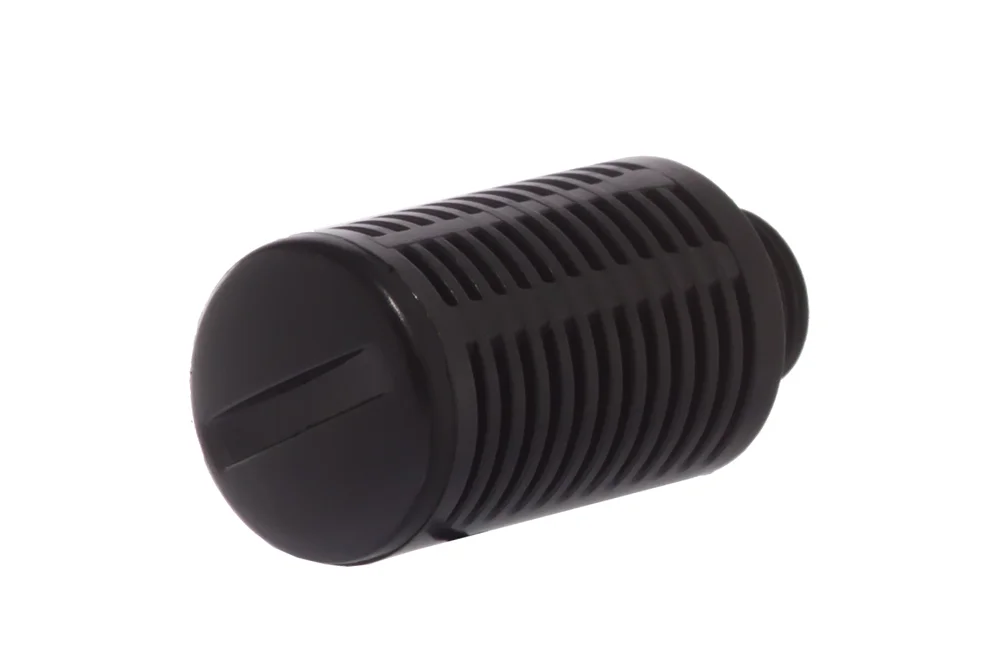

Silencer dynamic MWSPL with male thread, black resin acetal

All products, Equipment for pneumatic valves/

Additional information

Material	P – material (plastic)

Silencer dynamic MWSPL with a thread external used in systems compressed air in order to reducing level noise. The noise reduction that can be achieved by installing a silencer, measured at a supply pressure of 5 bar, at a distance of 1m and at an angle of 45° from the silencer axis, is on average depending on size 30 dB. Material: black resin acetal, insulation acoustic. Operating temperature: from -10°C to +60°C. pressure working: 6 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0970530062	Silencer dynamic MW SPL, acetal, insulation, 1/8" BSP male	-	-	In stock	Enquiry
MW-W0970530063	Silencer dynamic MW SPL, acetal, insulation, 1/4" BSP male	-	-	In stock	Enquiry
MW-W0970530064	Silencer dynamic MW SPL, acetal, insulation, 3/8" BSP male	-	-	In stock	Enquiry
MW-W0970530065	Silencer dynamic MW SPL, acetal, insulation, 1/2" BSP male	-	-	In stock	Enquiry
MW-W0970530066	Silencer dynamic MW SPL, acetal, insulation, 3/4" BSP male	-	-	In stock	Enquiry
MW-W0970530067	Silencer dynamic MW SPL, acetal, insulation, 1" BSP male	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Silencer dynamic MWSPL with a thread external used in systems compressed air in order to reducing level noise. The noise reduction that can be achieved by installing a silencer, measured at a supply pressure of 5 bar, at a distance of 1m and at an angle of 45° from the silencer axis, is on average depending on size 30 dB. Material: black resin acetal, insulation acoustic. Operating temperature: from -10°C to +60°C. pressure working: 6 bar.
