Can the Electrically operated pneumatic diverter valve, monostable, 3/2, 70 series be mounted directly onto actuators or on a connection block without the control coil?

Yes. The Electrically operated pneumatic diverter valve, monostable, 3/2, 70 series (solenoid valve) without control coil can be mounted directly onto actuators or on a connection block. The product description explicitly states it is most commonly used for controlling actuator operation and can be mounted inline, to a wall, directly to actuators, or on a connection block. Ensure mounting and port alignment match the actuator/connection block, and that the appropriate control coil is installed where electrical actuation is required. Also verify operating pressure (up to 10 bar) and temperature range (-10Â°C to +60Â°C) suit your application and that seals/materials (aluminum body, nickelâplated slider, NBR sealing) are compatible.

Does the Electrically operated pneumatic diverter valve, monostable, 3/2, 70 series function properly without its control coil installed?

No. the Electrically operated pneumatic diverter valve, monostable, 3/2, 70 series will not function as intended without its control coil installed. The described item is a universal electric control dividing valve (solenoid valve) supplied without the control coil; the coil is the electrical actuator that generates the magnetic field to shift the internal slider and change the valve from its rest position. Being monostable (spring-return), the valve has a default mechanical position (one of the two positions) when the coil is absent or de-energized. Without the coil, you can only rely on that default position and cannot electrically command the alternate position or switch between states. Mechanically the valve is otherwise intact (aluminum body, nickel-plated slider, NBR seals, plastic end cover) and will withstand specified pressure and temperature, but it will not provide electrically controlled actuation until the appropriate control coil is fitted and energized.

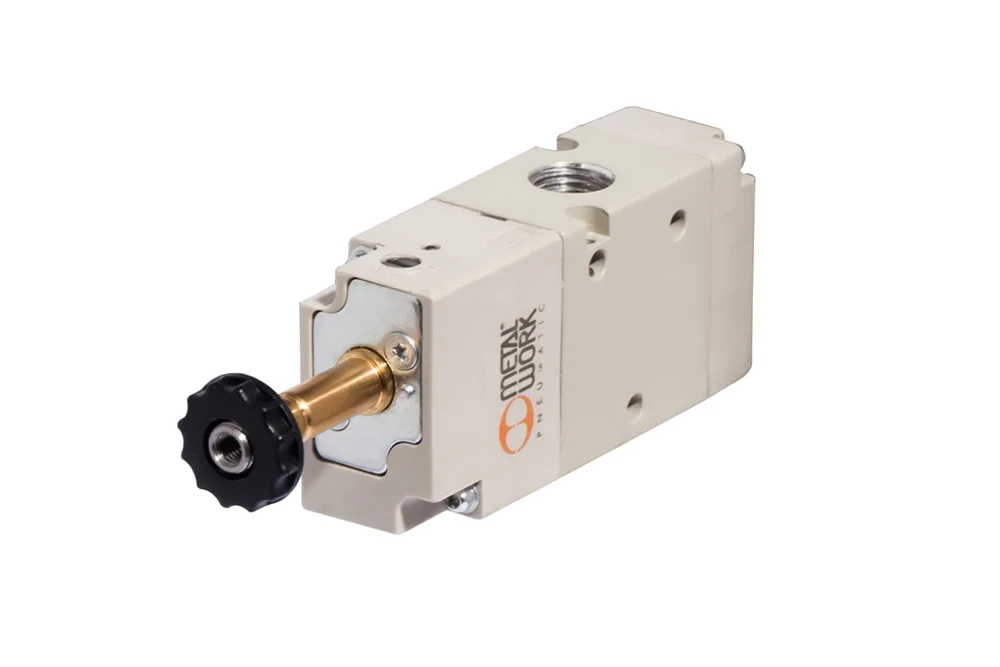

Electrically operated pneumatic diverter valve, monostable, 3/2, 70 series

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10
Standard length [m]	10, 4

Universal electric control dividing valve (solenoid valve), without control coil, most commonly used for controlling actuator operation. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 3/2 – three-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Operating pressure: up to 10 bar. Operating temperature: -10°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-7010020200	Valve series 70 SOV 23 SOS NC	-	10	In stock	Enquiry
MW-7010020400	Valve series 70 SOV 23 SOS NO	-	10	In stock	Enquiry
MW-7010020500	Valve series 70 SOV 23 SES NC	-	10	In stock	Enquiry
MW-7020020200	Valve series 70 SOV 33 SOS NC	-	10	In stock	Enquiry
MW-7020020400	Valve series 70 SOV 33 SOS NO	-	10	In stock	Enquiry
MW-7020020500	Valve series 70 SOV 33 SES NC	-	10	In stock	Enquiry
MW-7030020200	Valve series 70 SOV 43 SOS NC	-	10	In stock	Enquiry
MW-7030020400	Valve series 70 SOV 43 SOS NO	-	10	In stock	Enquiry
MW-7030020500	Valve series 70 SOV 43 SES NC	-	10	In stock	Enquiry
MW-7040020200	Valve series 70 SOV C3 SOS NC	-	10	In stock	Enquiry
MW-7040020400	Valve series 70 SOV C3 SOS NO	-	10	In stock	Enquiry
MW-7040020500	Valve series 70 SOV C3 SES NC	-	10	In stock	Enquiry
MW-7040020600	Valve series 70 SOV C3 SES NO	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal electric control dividing valve (solenoid valve), without control coil, most commonly used for controlling actuator operation. It can be mounted inline, to a wall, directly to actuators, or on a connection block. Function 3/2 – three-way, two-position. Material: valve body – aluminum, slider – nickel-plated aluminum, sealing – NBR, end cover – plastic. Operating pressure: up to 10 bar. Operating temperature: -10°C to +60°C.
