Can FLOWSAFE float be used on both pressure hoses and suction-pressure hoses in sizes 3", 4", and 5"?

Yes. The FLOWSAFE float is suitable for both pressure hoses (without a spiral) and suction-pressure hoses (with a steel spiral) in sizes 3", 4", and 5". It is secured with stainless steel clamps placed in the float grooves. For pressure hoses, a special steel hose must also be used to attach the FLOWSAFE float and prevent displacement when the hose is handled while not under pressure. The FLOWSAFE float is flexible, unsinkable, nonâabsorbent (100% closed pores), UV resistant, does not shrink or deform, and is made of BacellÂ® EVA foam (load capacity 16 kg, weight 2 kg, volume 18 dcmÂ³).

How does the FLOWSAFE float attach securely to pressure hoses to prevent displacement during handling?

The FLOWSAFE float is secured to pressure hoses using stainless steel clamps set into the floatâs grooves. For pressure hoses specifically, a special steel hose (protective steel sleeve) is fitted under the float and attached to the hose; this steel element prevents the FLOWSAFE float from sliding off during handling when the hose is not pressurized. The floatâs groove-and-clamp system combined with the steel hose attachment ensures a firm, durable connection.

Is the FLOWSAFE float resistant to UV and seawater corrosion over long-term use?

Yes. The FLOWSAFE float is made from BacellÂ® EVA foam that is described as UV resistant, unsinkable and nonâabsorbent (100% closed cells), and it does not shrink or deform. These properties make it resistant to longâterm UV exposure and to water ingress and corrosion effects typical in marine and seawater environments. Additionally, stainless steel clamps are used for securing the float, and for pressure hoses a special steel hose attachment is recommended to prevent displacement during handling. Together, the materials and design provide longâterm durability against UV and seawater corrosion.

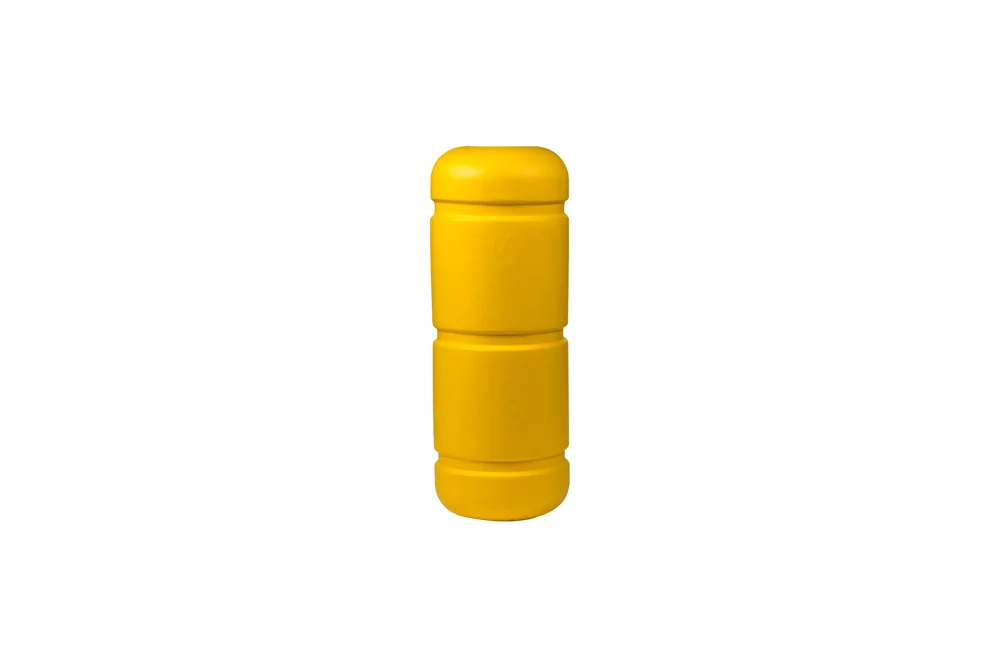

FLOWSAFE float

All products, Floating hoses and accessories/

Additional information

Material	P – material (plastic)

The FLOWSAFE float has been designed for all hoses used in the marine industry. This particularly applies to supply hoses in connections between the vessel and the drilling platform. Thanks to the floats, the hoses remain on the water’s surface, preventing damage from the vessel’s propeller and allowing the floating unit to maneuver. The float can also serve as a protective cover for the hose. It can be used for both pressure hoses (without a spiral) and suction-pressure hoses (with a steel spiral) in sizes 3″, 4″, and 5″. It is secured with stainless steel clamps placed in the grooves of the float. When using floats for pressure hoses, a special steel hose must also be used to attach the float to the hose and prevent its displacement when the hose is being handled and is not under pressure. It is flexible, unsinkable, and non-absorbent (pores 100% closed). It does not shrink or deform. UV resistant. Material: Bacell® – a special EVA foam. Load capacity: 16 kg. Weight: 2 kg. Volume: 18 dcm³.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TZ-90620-48	FLOWSAFE 3 float	-	-	In stock	Enquiry
TZ-90620-64	FLOWSAFE 4" float	-	-	In stock	Enquiry
TZ-90620-80	FLOWSAFE 5 float	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The FLOWSAFE float has been designed for all hoses used in the marine industry. This particularly applies to supply hoses in connections between the vessel and the drilling platform. Thanks to the floats, the hoses remain on the water’s surface, preventing damage from the vessel’s propeller and allowing the floating unit to maneuver. The float can also serve as a protective cover for the hose. It can be used for both pressure hoses (without a spiral) and suction-pressure hoses (with a steel spiral) in sizes 3″, 4″, and 5″. It is secured with stainless steel clamps placed in the grooves of the float. When using floats for pressure hoses, a special steel hose must also be used to attach the float to the hose and prevent its displacement when the hose is being handled and is not under pressure. It is flexible, unsinkable, and non-absorbent (pores 100% closed). It does not shrink or deform. UV resistant. Material: Bacell® – a special EVA foam. Load capacity: 16 kg. Weight: 2 kg. Volume: 18 dcm³.
