Is the Handle for CAMLOCK connector, stainless steel, type HR compatible with AISI 316 fittings and aggressive chemical environments?

Handle for CAMLOCK connector, stainless steel, type HR made of AISI 304 steel offers good corrosion resistance for many applications, but it is not as resistant as AISI 316 in chloride-rich or highly aggressive chemical environments. AISI 304 is suitable for general-purpose use, fresh water, mild acids and alkalis, and many industrial atmospheres. However, in environments with high chloride content (sea water, brine), strong oxidizing acids, or other aggressive chemicals, AISI 304 can suffer pitting and crevice corrosion. If your fittings are AISI 316 or the service involves aggressive chemicals, galvanic compatibility and overall corrosion resistance are better ensured by using an AISI 316 handle. For critical corrosive or marine applications, choose Handle for CAMLOCK connector, stainless steel, type HR in AISI 316 or specify a corrosion-resistant coating or alternative material designed for the specific chemicals and concentrations involved.

Can the Handle for CAMLOCK connector, stainless steel, type HR be used with AISI 304 couplings in food and beverage applications?

Yes. The Handle for CAMLOCK connector, stainless steel, type HR, made of AISI 304, is compatible with AISI 304 CAMLOCK couplings and is suitable for food and beverage applications where AISI 304 stainless steel is acceptable. AISI 304 offers good corrosion resistance and is commonly used in the food industry. However, confirm that AISI 304 meets your specific hygienic, chemical and regulatory requirements (e.g., resistance to cleaning chemicals, CIP/SIP processes, and applicable food safety standards) for the intended application. If higher corrosion resistance is required (e.g., for aggressive environments or frequent sterilization), consider AISI 316 alternatives.

Does the Handle for CAMLOCK connector, stainless steel, type HR come with a corrosion-resistant finish?

Handle for CAMLOCK connector, stainless steel, type HR Format: The handle is made from AISI 304 stainless steel, which offers good general corrosion resistance for many environments. However, AISI 304 is not a special corrosion-resistant or passivated finish beyond the inherent properties of the stainless steel grade. If you require enhanced corrosion resistance (for example, in highly chloride-rich, marine, or aggressive chemical environments), consider AISI 316 or a specific corrosion-resistant coating/finish; otherwise, AISI 304 provides standard stainless corrosion resistance but not an additional dedicated corrosion-resistant finish.

Handle for coupling CAMLOCK, steel stainless, type HR

Additional information

Material	SS – stainless steel

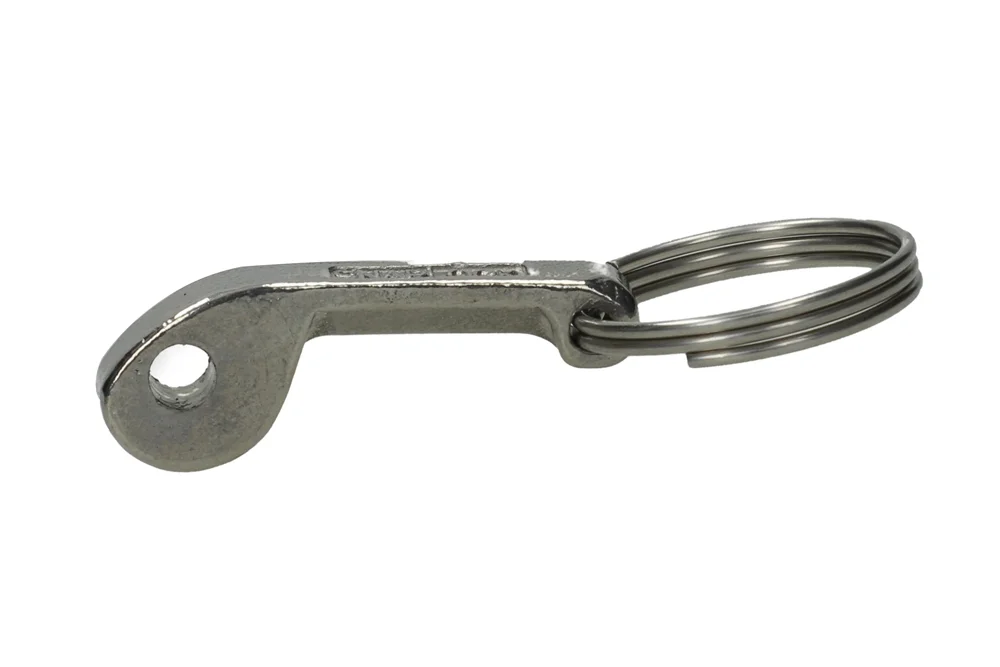

A standard handle (lever) for CAMLOCK couplings, type HR. Material: steel AISI 304.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-HR-050-SS	Handle HR 1/2" ÷ 3/4", AISI 304	-	-	In stock	Enquiry
AC-HR-050-SSX	Handle HR 1/2" ÷ 3/4", AISI 304	-	-	In stock	Enquiry
AC-HR-100-SS	Handle HR 1", AISI 304	-	-	In stock	Enquiry
AC-HR-100-SSX	Handle HR 1", AISI 304	-	-	In stock	Enquiry
AC-HR-200-SS	Handle HR 1.1/4" ÷ 2.1/2", AISI 304	-	-	In stock	Enquiry
AC-HR-200-SSX	Handle HR 1.1/4" ÷ 2.1/2", AISI 304	-	-	In stock	Enquiry
AC-HR-300-SS	Handle HR 3" ÷ 5", AISI 304	-	-	In stock	Enquiry
AC-HR-300-SSX	Handle HR 3" ÷ 5", AISI 304	-	-	In stock	Enquiry
AC-HR-600-SS	Handle HR 6", AISI 304	-	-	In stock	Enquiry
