Hose for the extraction and transfer of flue gases, fumes, gases and dust with high temperatures up to 260°C ARAMID SI CL

Q: Is the Hose for the extraction and transfer of flue gases, fumes, gases and dust with high temperatures up to 260Â°C ARAMID SI CL suitable for use on vehicle exhaust systems?

Yes. The Hose for the extraction and transfer of flue gases, fumes, gases and dust with high temperatures up to 260Â°C ARAMID SI CL is suitable for use on vehicle exhaust systems. It is explicitly described for high-temperature applications including vehicles and engine equipment, handles exhaust gases and hot fumes up to +260Â°C, is flame-retardant, mechanically durable, vibration- and impact-resistant (external galvanized steel spiral), and available in sizes and lengths adaptable to vehicle installations. Ensure correct coupling (bridge clamps, left-handed) and choose appropriate diameter and length for your exhaust system; consult supplier for vehicle-specific fittings and higher-temperature or special-request options.

Q: Can the Hose for the extraction and transfer of flue gases, fumes, gases and dust with high temperatures up to 260Â°C ARAMID SI CL be used in aerospace engine compartments?

Yes. The Hose for the extraction and transfer of flue gases, fumes, gases and dust with high temperatures up to 260Â°C ARAMID SI CL is suitable for aerospace engine compartments: it is explicitly described for aerospace and engine equipment use, withstands operating temperatures from -60Â°C to +260Â°C, is flame-retardant, mechanically durable, vibration- and impact-resistant due to its external galvanized steel spiral reinforcement, and offers excellent compressibility and stretch resistance. For specific aircraft certification, installation conditions, and required approvals, verify compatibility with your platform and obtain any necessary certification or testing.

All products, Ducting and ventilation hoses/

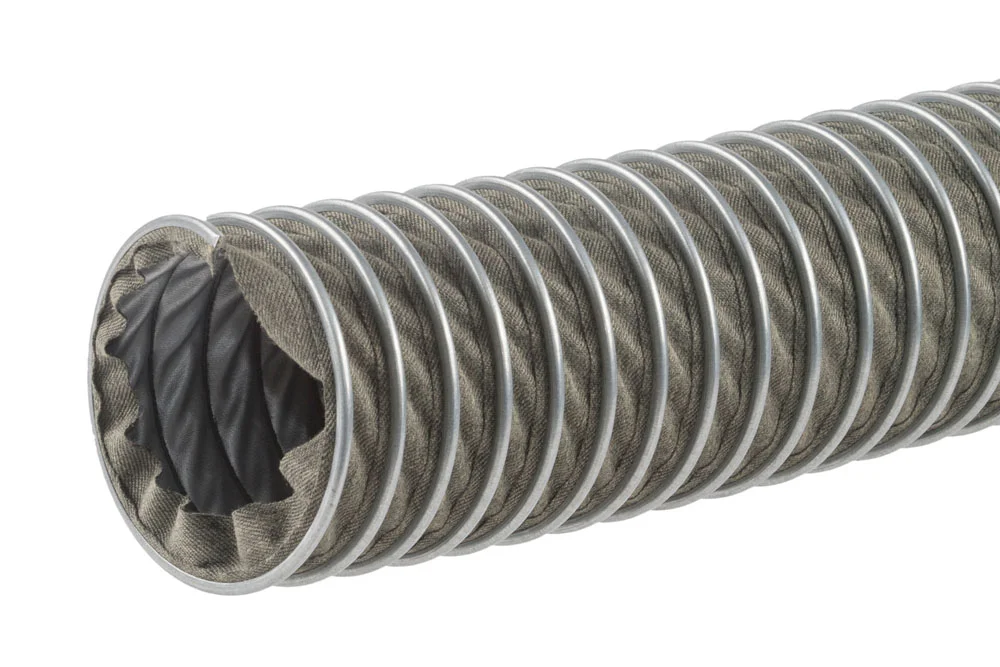

Hose for the extraction and transfer of flue gases, fumes, gases and dust with high temperatures up to 260°C ARAMID SI CL

Additional information

Material	PA – polyamide
Maximum operating temperature [°C]	260
Minimum operating temperature [°C]	-60
Vacuum resistance	yes
Standard length [m]	3
Reinforcement	external spiral made of galvanized steel wire and sheet metal

Lightweight, flexible, and elastic hose designed for the extraction of hot fumes, gases, dust, exhaust gases, cooling air, and blowing. Used in all areas of industry for high-temperature applications, particularly in machine construction, vehicles, engine equipment, aerospace, and military applications. Resistant to temperature, flame-retardant, and very mechanically durable. Characterized by excellent compressibility, a very strong construction resistant to vibrations and stretching, and impact resistance due to the external spiral. Other diameters available upon special request in the range of 50 to 508 mm. Hose installation on couplings with bridge clamps (left-handed). Standard length: 3 m (also available in lengths of 6 and 10 m upon special request). Hose material: aramid fiber fabric internally impregnated with silver-gray silicone, 0.4 mm thick, externally green-gray. Reinforcement: type CLIP – external spiral made of galvanized steel wire and sheet metal, left-handed. Operating temperature: from -60°C to +260°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SC-ARAMID-CL-050	ARAMID HOSE SI CL 50 mm	50	0.9	In stock	Enquiry
SC-ARAMID-CL-060	ARAMID HOSE SI CL 60 mm	60	0.78	In stock	Enquiry
SC-ARAMID-CL-065	ARAMID HOSE SI CL 65 mm	65	0.7	In stock	Enquiry
SC-ARAMID-CL-070	ARAMID HOSE SI CL 70 mm	70	0.65	In stock	Enquiry
SC-ARAMID-CL-076	ARAMID HOSE SI CL 76 mm	75	0.62	In stock	Enquiry
SC-ARAMID-CL-080	ARAMID HOSE SI CL 80 mm	80	0.61	In stock	Enquiry
SC-ARAMID-CL-090	ARAMID HOSE SI CL 90 mm	90	0.56	In stock	Enquiry
SC-ARAMID-CL-102	ARAMID HOSE SI CL 102 mm	100	0.51	In stock	Enquiry
SC-ARAMID-CL-112	ARAMID HOSE SI CL 112 mm	110	0.45	In stock	Enquiry
SC-ARAMID-CL-120	ARAMID HOSE SI CL 120 mm	120	0.36	In stock	Enquiry
SC-ARAMID-CL-127	ARAMID HOSE SI CL 127 mm	125	0.33	In stock	Enquiry
SC-ARAMID-CL-140	ARAMID HOSE SI CL 140 mm	140	0.27	In stock	Enquiry
SC-ARAMID-CL-152	ARAMID HOSE SI CL 152 mm	150	0.22	In stock	Enquiry
SC-ARAMID-CL-160	ARAMID HOSE SI CL 160 mm	160	0.21	In stock	Enquiry
SC-ARAMID-CL-180	ARAMID HOSE SI CL 180 mm	180	0.17	In stock	Enquiry
SC-ARAMID-CL-203	ARAMID HOSE SI CL 203 mm	200	0.15	In stock	Enquiry
SC-ARAMID-CL-254	ARAMID HOSE SI CL 254 mm	250	0.1	In stock	Enquiry
SC-ARAMID-CL-305	ARAMID HOSE SI CL 305 mm	300	0.07	In stock	Enquiry
SC-ARAMID-CL-350	ARAMID HOSE SI CL 350 mm	350	0.06	In stock	Enquiry
SC-ARAMID-CL-407	ARAMID HOSE SI CL 407 mm	400	0.04	In stock	Enquiry
SC-ARAMID-CL-508	ARAMID HOSE SI CL 508 mm	500	0.04	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Lightweight, flexible, and elastic hose designed for the extraction of hot fumes, gases, dust, exhaust gases, cooling air, and blowing. Used in all areas of industry for high-temperature applications, particularly in machine construction, vehicles, engine equipment, aerospace, and military applications. Resistant to temperature, flame-retardant, and very mechanically durable. Characterized by excellent compressibility, a very strong construction resistant to vibrations and stretching, and impact resistance due to the external spiral. Other diameters available upon special request in the range of 50 to 508 mm. Hose installation on couplings with bridge clamps (left-handed). Standard length: 3 m (also available in lengths of 6 and 10 m upon special request). Hose material: aramid fiber fabric internally impregnated with silver-gray silicone, 0.4 mm thick, externally green-gray. Reinforcement: type CLIP – external spiral made of galvanized steel wire and sheet metal, left-handed. Operating temperature: from -60°C to +260°C.

Additional information

Material	PA – polyamide
Maximum operating temperature [°C]	260
Minimum operating temperature [°C]	-60
Vacuum resistance	yes
Standard length [m]	3
Reinforcement	external spiral made of galvanized steel wire and sheet metal
