Can DKL hydraulic end, type ZMW111, light series, carbon steel be crimped using standard hose crimping sleeves and machines?

Yes. The DKL hydraulic end, type ZMW111, light series, carbon steel can be crimped using standard hose crimping sleeves and machines, provided the sleeve and machine are appropriate for the specific hose construction and size. The fitting is expressly designed for crimping in hydraulic and industrial hoses and features a regular hydraulic âtailâ (type Z), internal metric thread with nut, metal-to-metal sealing, and a universal 24Â°/60Â° cone (DKL), which are compatible with common crimping processes. Ensure you use a crimping sleeve sized for the hose and compatible with the fittingâs tail profile, and follow the hose manufacturerâs and fitting supplierâs crimping specifications (crimp diameter, pressure, and inspection criteria). Proper tooling, correct sleeve type/material, and adherence to assembly parameters are essential for a reliable, leak-free crimp.

Is DKL hydraulic end, type ZMW111, light series, carbon steel compatible with crimping sleeves for industrial hoses?

Yes. DKL hydraulic end, type ZMW111, light series, carbon steel is compatible with crimping sleeves for industrial hoses. The product description states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type; it features a regular hydraulic tail (type Z), internal metric thread and nut, metal-to-metal sealing with a universal 24Â°/60Â° cone, and is made of galvanized carbon steel. Ensure you use a crimping sleeve matched to the hose construction and dimensions.

Can DKL hydraulic end, type ZMW111, light series, carbon steel be crimped on hydraulic hoses using standard crimping sleeves?

Yes. DKL hydraulic end, type ZMW111, light series, carbon steel can be crimped on hydraulic hoses using standard crimping sleeves, provided the sleeve and crimping setup match the hose type and dimensions. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Key points to ensure correct crimping: - Use a crimping sleeve compatible with the specific hose construction (e.g., single-wire, multi-wire, textile) and bore size. - Verify sleeve dimensions and profile recommended by the hose manufacturer for a proper swage to the ZMW111 tail. - Confirm crimping machine settings (pressure, die size, number of compression points) per sleeve/hose manufacturer instructions. - Ensure the internal metric thread and nut, and the metal-metal DKL cone (24Â°/60Â°) seating surfaces remain clean and undamaged after crimping. - Material compatibility: carbon steel (galvanized) fitting is suitable with common hydraulic systems, but check for environmental or fluid compatibility if special conditions apply. When these conditions are met, standard crimping sleeves intended for the hose type can be used to crimp the DKL hydraulic end, type ZMW111, light series, carbon steel reliably and safely.

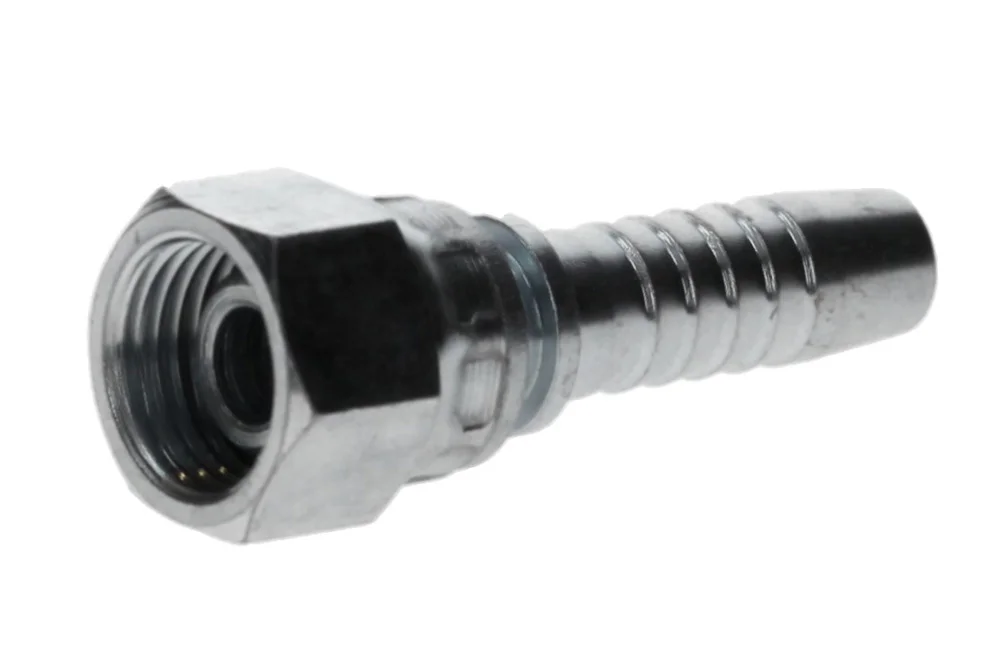

DKL hydraulic end, type ZMW111, light series, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW111-12-04	End. GW M12x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW111-12-05	End. GW M12x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW111-14-04	End. GW M14x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW111-16-04	End. GW M16x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW111-16-05	End. GW M16x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW111-16-06	End. GW M16x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW111-16-08	End. GW M16x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW111-18-05	End. GW M18x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW111-18-06	End. GW M18x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW111-18-08	End. GW M18x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW111-22-06	End. GW M22x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW111-22-08	End. GW M22x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW111-22X16L-08	End. GW M22x1.5, 16L, hose 1/2", 24/60, light	12	-	In stock	Enquiry
TI-ZMW111-26-10	End. GW M26x1.5, hose 5/8", 24/60°, light	16	-	In stock	Enquiry
TI-ZMW111-27-10	End. GW M27x2, hose 5/8", 24/60°, lightweight	16	-	In stock	Enquiry
TI-ZMW111-27X1,5-10	End. GW M27x1.5, hose 5/8", 24/60°, light	16	-	In stock	Enquiry
TI-ZMW111-30-12	End. GW M30x2, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-30X1,75-12	End. GW M30x1.75, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-33-12	End. GW M33x2, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-33X1,5-12	End. GW M33x1.5, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-36-16	End. GW M36x2, hose 1", 24/60°, light	25	-	In stock	Enquiry
TI-ZMW111-45-16	End. GW M45x2, hose 1", 24/60°, light	25	-	In stock	Enquiry
TI-ZMW111-45-20	End. GW M45x2, hose 1.1/4", 24/60°, light	32	-	In stock	Enquiry
TI-ZMW111-52-24	End. GW M52x2, hose 1.1/2", 24/60°, light	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
