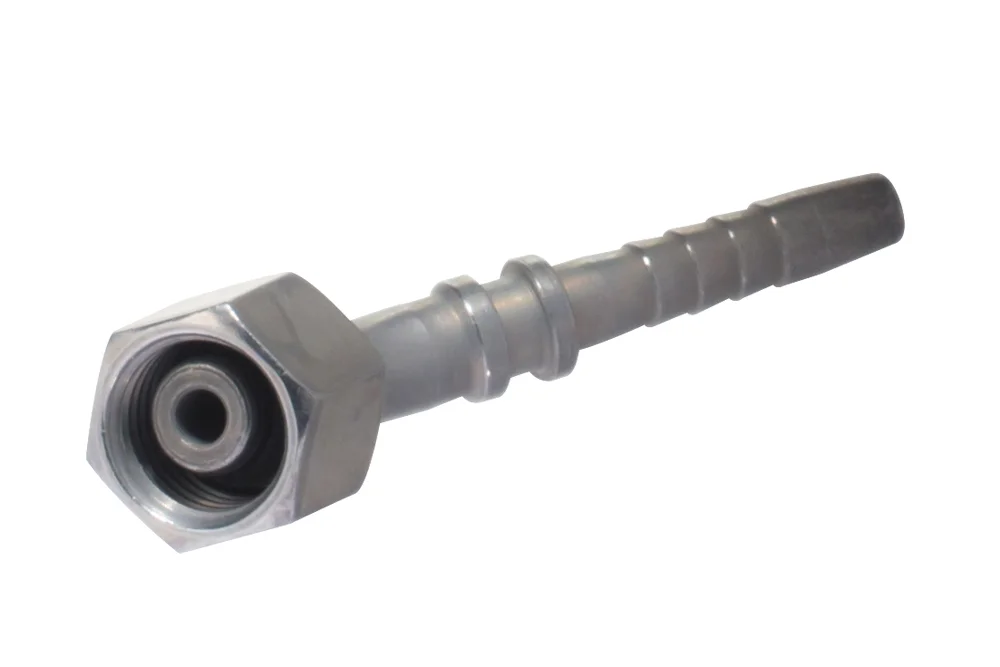

Fitting hydraulic DKOL 45°, type ZMW321, series light, carbon steel, zinc-nickel
Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing an O-ring on a 24° cone (DKOL), angled 45°, series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing an O-ring on a 24° cone (DKOL), angled 45°, series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
Additional information
| Material | CS – steel (cast iron) |
|---|
