Can DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH) be used with hose crimping sleeves other than those marked â-PHâ?

No - DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH) must be crimped using sleeves specified for that fitting, i.e., sleeves marked with the additional â-PHâ. The product description explicitly states it is designed for crimping with a sleeve suitable for the hose type and instructs to use sleeves marked with â-PHâ at the end of the index. Using non-â-PHâ sleeves risks improper crimping, loss of seal, mechanical failure or leaks, and may void warranty or safety approvals. Always follow manufacturer specification and use the recommended â-PHâ crimping sleeves.

Does DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH) require a specific crimp diameter for -PH sleeves?

Yes. DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH) requires a specific crimp diameter for -PH sleeves. The fitting is designed for crimping with sleeves that are specifically marked with the suffix â-PH,â which correspond to the hose type and the fittingâs geometry and material. Use a crimping sleeve sized and profiled for the exact hose model and the -PH designation; the correct crimp diameter depends on the hose inner/outer dimensions and the -PH sleeve dimensions specified by the hose/sleeve manufacturer. Always follow the hose manufacturerâs crimp diameter table and the sleeve supplierâs instructions for ZMW121 (light series) in AISI 316 (PH) material to ensure a secure, leak-free crimp compatible with the DKOL 24Â° cone sealing.

DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH)

Q: Is the DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH) compatible with standard crimping sleeves marked â-PHâ for hose assembly?

Yes. The DKOL hydraulic end, type ZMW121, light series, AISI 316 steel (PH) is compatible with standard crimping sleeves marked â-PHâ. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose and instructs to use sleeves marked with the letters â-PHâ at the end of the index. Material AISI 316 and the DKOL 24Â° cone O-ring sealing do not change that requirement . use crimping sleeves labeled â-PHâ for proper assembly and sealing.

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

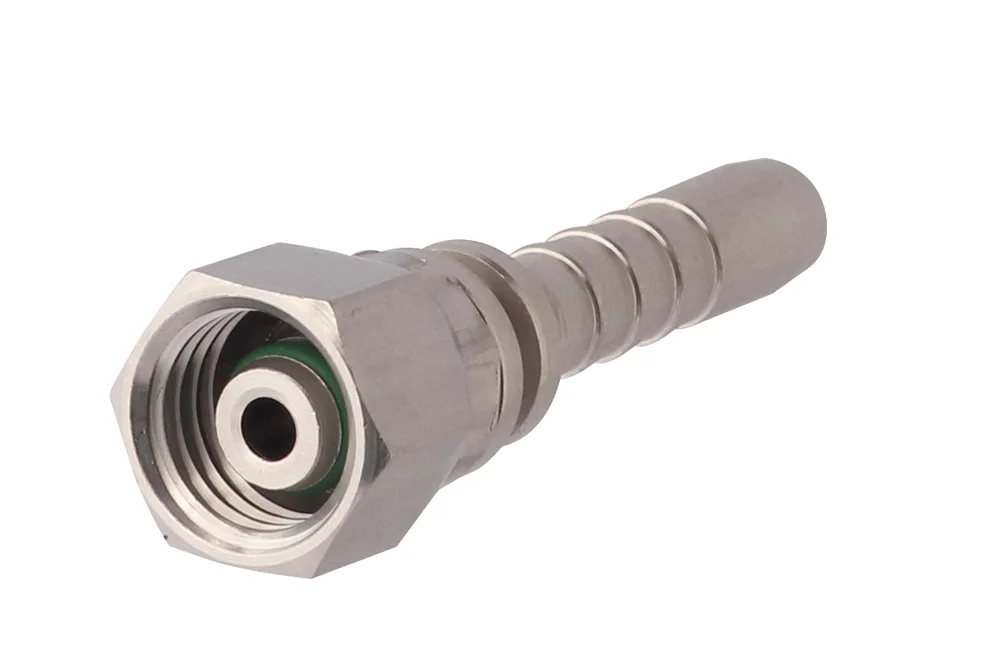

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW121-12-03-SS-PH	End. GW M12x1.5, hose 3/16", 24°, o-ring, light, AISI 316	5	-	In stock	Enquiry
TI-ZMW121-12-04-SS-PH	End. GW M12x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-14-03-SS-PH	End. GW M14x1.5, hose 3/16", 24°, o-ring, lightweight, AISI 316	5	-	In stock	Enquiry
TI-ZMW121-14-04-SS-PH	End. GW M14x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-14-05-SS-PH	End. GW M14x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-14-06-SS-PH	End. GW M14x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-16-04-SS-PH	End. GW M16x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-16-05-SS-PH	End. GW M16x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-16-06-SS-PH	End. GW M16x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-18-04-SS-PH	End. GW M18x1.5, hose 1/4", 24°, o-ring, light, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-18-05-SS-PH	End. GW M18x1.5, hose 5/16", 24°, o-ring, light, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-18-06-SS-PH	End. GW M18x1.5, hose 3/8", 24°, o-ring, light, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-18-08-SS-PH	End. GW M18x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-22-04-SS-PH	End. GW M22x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-22-05-SS-PH	End. GW M22x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-22-06-SS-PH	End. GW M22x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-22-08-SS-PH	End. GW M22x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-22-10-SS-PH	End. GW M22x1.5, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-26-06-SS-PH	End. GW M26x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-26-08-SS-PH	End. GW M26x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-26-10-SS-PH	End. GW M26x1.5, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-26-12-SS-PH	End. GW M26x1.5, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW121-30-08-SS-PH	End. GW M30x2, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-30-10-SS-PH	End. GW M30x2, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-30-12-SS-PH	End. GW M30x2, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW121-30-16-SS-PH	End. GW M30x2, hose 1", 24°, o-ring, lightweight, AISI 316	25	-	In stock	Enquiry
TI-ZMW121-36-10-SS-PH	End. GW M36x2, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-36-12-SS-PH	End. GW M36x2, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW121-36-16-SS-PH	End. GW M36x2, hose 1", 24°, o-ring, lightweight, AISI 316	25	-	In stock	Enquiry
TI-ZMW121-45-16-SS-PH	End. GW M45x2, hose 1", 24°, o-ring, lightweight, AISI 316	25	-	In stock	Enquiry
TI-ZMW121-45-20-SS-PH	End. GW M45x2, hose 1.1/4", 24°, o-ring, lightweight, AISI 316	32	-	In stock	Enquiry
TI-ZMW121-52-20-SS-PH	End. GW M52x2, hose 1.1/4", 24°, o-ring, lightweight, AISI 316	32	-	In stock	Enquiry
TI-ZMW121-52-24-SS-PH	End. GW M52x2, hose 1.1/2", 24°, o-ring, lightweight, AISI 316	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOL), lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose (use sleeves marked additionally with the letters “-PH” at the end of the index). Material: AISI 316 steel.
