Does the DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel require specific crimping sleeve dimensions for secure hose attachment?

Yes . the DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel requires an appropriately sized crimping sleeve for secure hose attachment. The product is designed for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type, so you must use a sleeve whose inner diameter, length and profile match the hose construction (tube, reinforcement, cover) and the fitting tail dimensions. Correct sleeve selection and proper crimping parameters (crimp diameter, swaging profile and machine settings) are essential to ensure mechanical retention, sealing integrity at the 60Â° cone with O-ring and long-term performance. Follow the hose and sleeve manufacturerâs specifications or the crimping chart for the specific hose series; verify crimp dimensions with a calibrated gauge after assembly.

Can DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel be used with hoses of different pressure ratings without changing the crimping sleeve?

No. DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel must be crimped with a sleeve matched to the hose type and its pressure rating. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type." Using a sleeve sized for a different hose or different pressure rating risks improper crimp geometry, inadequate seal, and potential failure under pressure. Always use the correct crimping sleeve and follow hose/manufacturer specifications and crimping parameters for the specific hose pressure class.

What is the recommended O-ring material for DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel to ensure sealing?

For the DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel, sealing on a 60Â° cone, the recommended O-ring material is nitrile rubber (NBR/BunaâN) with a Shore A hardness of 70. Rationale: - Excellent compatibility with mineral hydraulic oils and typical hydraulic fluids used in systems employing carbon steel fittings. - Good compression set resistance and sealing on metal cone faces at typical hydraulic temperatures (-30 Â°C to +100 Â°C continuous). - Adequate resistance to the zincânickel coating and common additives; low risk of galvanic or chemical adverse interaction. If the application involves extended high temperatures (>100 Â°C), aggressive hydraulic fluids (phosphate esters, fireâresistant fluids), or compatibility with fuels/solvents, consider: - Fluorocarbon (FKM/Viton) for higher temperature and chemical resistance (recommended up to ~200 Â°C, good with many aggressive fluids). - Hydrogenated NBR (HNBR) for improved heat and ozone resistance versus standard NBR. - EPDM only if exclusively water/glycol-based fluids are used (not suitable for mineral oils). Typical O-ring dimensions should match the 60Â° cone groove specified by the DKOR hydraulic end; confirm groove geometry and ensure proper squeeze per manufacturerâs guidelines.

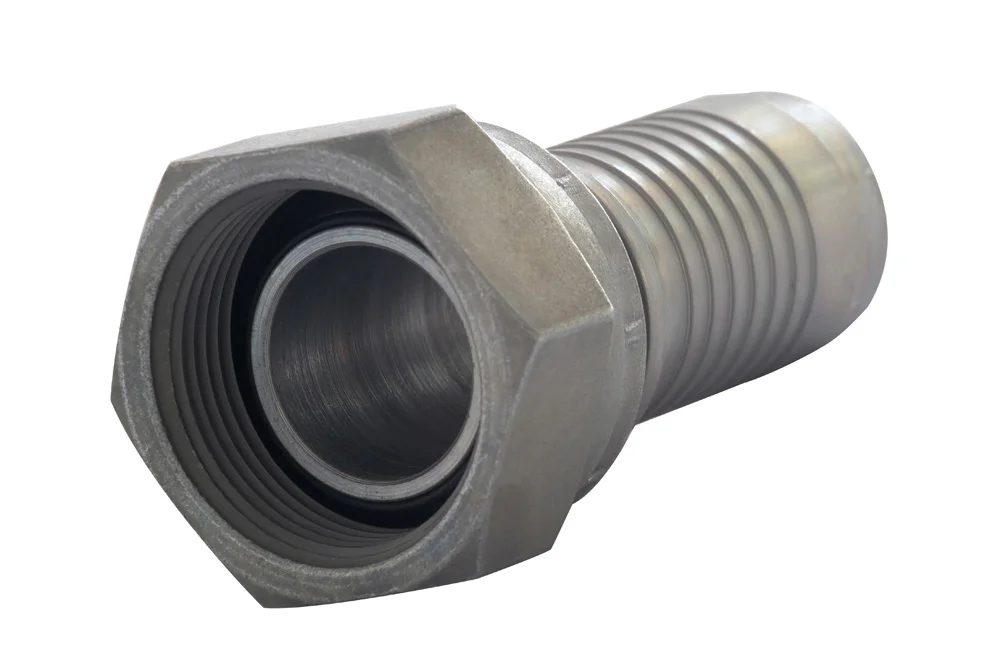

DKOR hydraulic end, type ZBW120, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with internal BSP thread and nut, sealing with an O-ring on a 60° cone (DKOR). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a thickness of 6-10 µm, which exhibits very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW120-04-04-CN	End. GW 1/4" BSP, hose 1/4", cone 60°, o-ring, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW120-06-06-CN	End. GW 3/8" BSP, hose 3/8", cone 60°, o-ring, Zn-Ni	10	-	In stock	Enquiry
TI-ZBW120-08-08-CN	End. GW 1/2" BSP, hose 1/2", cone 60°, o-ring, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW120-10-10-CN	End. GW 5/8" BSP, hose 5/8", cone 60°, o-ring, Zn-Ni	16	-	In stock	Enquiry
TI-ZBW120-12-12-CN	End. GW 3/4" BSP, hose 3/4", cone 60°, o-ring, Zn-Ni	20	-	In stock	Enquiry
TI-ZBW120-16-16-CN	End. GW 1" BSP, hose 1", cone 60°, o-ring, Zn-Ni	25	-	In stock	Enquiry
TI-ZBW120-20-16-CN	End. GW 1.1/4" BSP, hose 1", cone 60°, o-ring, Zn-Ni	25	-	In stock	Enquiry
TI-ZBW120-20-20-CN	End. GW 1.1/4" BSP, hose 1.1/4", cone 60°, o-ring, Zn-Ni	32	-	In stock	Enquiry
TI-ZBW120-24-20-CN	End. GW 1.1/2" BSP, hose 1.1/4", cone 60°, o-ring, Zn-Ni	32	-	In stock	Enquiry
TI-ZBW120-24-24-CN	End. GW 1.1/2" BSP, hose 1.1/2", cone 60°, o-ring, Zn-Ni	38	-	In stock	Enquiry
TI-ZBW120-32-24-CN	End. GW 2" BSP, hose 1.1/2", cone 60°, o-ring, Zn-Ni	38	-	In stock	Enquiry
TI-ZBW120-32-32-CN	End. GW 2" BSP, hose 2", cone 60°, o-ring, Zn-Ni	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with internal BSP thread and nut, sealing with an O-ring on a 60° cone (DKOR). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a thickness of 6-10 µm, which exhibits very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
