Is the DKOS 90Â° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel compatible with standard hose crimping sleeves for industrial hydraulic assemblies?

Yes. The DKOS 90Â° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. It features a standard Z-type hydraulic tail for the hose and a heavy-duty construction intended specifically for sleeve crimping assemblies. The internal metric thread and nut with Oâring sealing on a 24Â° cone (DKOS) do not prevent use with standard crimping sleeves . provided you select a sleeve matched to the hose construction and nominal size. Also note the zincânickel coating (6â10 Âµm) gives high corrosion resistance and does not affect crimp compatibility. Always verify sleeve dimensions and crimping parameters from the hose and sleeve manufacturers to ensure a proper, certified crimp.

Does the DKOS 90Â° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel require specific crimping pressure settings for different hose bore sizes?

Yes. The DKOS 90Â° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel requires specific crimping pressure/settings for different hose bore sizes. It is designed to be crimped with a crimping sleeve suited to the hose type, and correct crimp pressure/die selection must match the hose inner/outer diameter and manufacturer crimp specifications to ensure a secure, leak-free connection and avoid damage. Always follow the hose and sleeve manufacturerâs crimping charts and machine settings for the exact bore size; if in doubt, consult the hose supplier or crimping equipment manual.

Can DKOS 90Â° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel be used with O-ring materials other than standard NBR?

Yes. DKOS 90Â° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel can be used with Oâring materials other than standard NBR, but selection must match application conditions. Considerations: - Temperature range: NBR (nitrile) is suitable for approx. â40Â°C to +120Â°C. For higher temperatures use FKM (Viton) or FFKM; for very low temperatures consider HNBR or silicone. - Fluid compatibility: NBR is good for mineral oils and hydraulic fluids. For phosphate esters, strong glycol-based fluids, some bioâoils, or aggressive chemicals choose FKM, EPDM, or FFKM depending on compatibility charts. - Pressure and sealing performance: Hardness and compression set of the alternative Oâring affect sealing on the 24Â° cone; maintain appropriate Shore A hardness (commonly 70Â±5) unless system specifics require otherwise. - Chemical aging and swelling: Some elastomers swell or degrade in certain fluids; verify compatibility with the exact hydraulic fluid and additives used. - Safety/standards: Ensure the chosen elastomer meets industry standards and temperature/pressure ratings for your system. - Installation and mating materials: Metal surface finish (zincânickel coating) is fine, but confirm no galvanic or chemical interactions with the Oâring compound. Recommendation: Consult the Oâring manufacturerâs chemical compatibility and temperature charts and, if possible, perform compatibility tests under actual operating conditions. For critical or highâtemperature/harshâfluid applications, FKM or FFKM are common alternatives; for steam/water/glycol, EPDM may be appropriate.

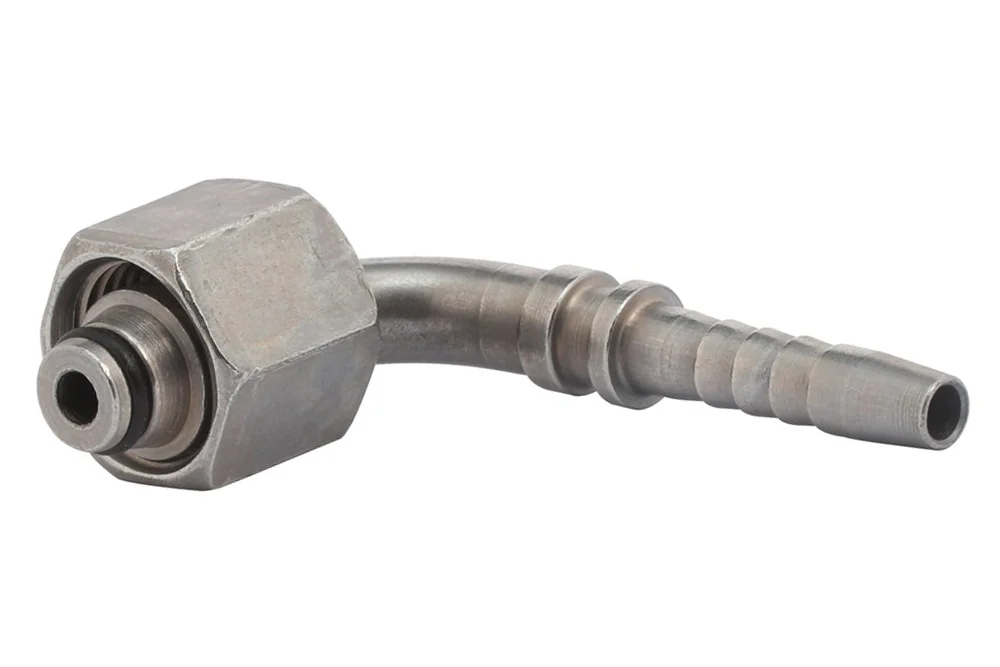

DKOS 90° hydraulic end, type ZMW222, heavy series, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 90° angled, heavy-duty series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW222-16-03-CN	End. 90° G1/2 M16x1.5, hose 3/16", 24°, o-ring, heavy, Zn-Ni	5	-	In stock	Enquiry
TI-ZMW222-16-04-CN	End. 90° G1/2 M16x1.5, hose 1/4", 24°, o-ring, heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW222-18-04-CN	End fitting 90° G1/2 M18x1.5, hose 1/4", 24°, o-ring, heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW222-20-05-CN	End fitting 90° G1/2 M20x1.5, hose 5/16", 24°, o-ring, heavy, Zn-Ni	8	-	In stock	Enquiry
TI-ZMW222-20-06-CN	End fitting 90° G1/2 M20x1.5, hose 3/8", 24°, o-ring, heavy, Zn-Ni	10	-	In stock	Enquiry
TI-ZMW222-22-06-CN	End. 90° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy, Zn-Ni	10	-	In stock	Enquiry
TI-ZMW222-24-08-CN	End. 90° G1 M24x1.5, hose 1/2", 24°, o-ring, heavy, Zn-Ni	12	-	In stock	Enquiry
TI-ZMW222-30-10-CN	End fitting 90° G1/2 M30x2, hose 5/8", 24°, o-ring, heavy, Zn-Ni	16	-	In stock	Enquiry
TI-ZMW222-30-12-CN	End fitting 90° G1/2 M30x2, hose 3/4", 24°, o-ring, heavy, Zn-Ni	20	-	In stock	Enquiry
TI-ZMW222-36-12-CN	End. 90° GW M36x2, hose 3/4", 24°, o-ring, heavy, Zn-Ni	20	-	In stock	Enquiry
TI-ZMW222-36-16-CN	End. 90° G1 M36x2, hose 1", 24°, o-ring, heavy, Zn-Ni	25	-	In stock	Enquiry
TI-ZMW222-42-16-CN	End. 90° G1/2 M42x2, hose 1", 24°, o-ring, heavy, Zn-Ni	25	-	In stock	Enquiry
TI-ZMW222-52-20-CN	End fitting 90° G1/2 M52x2, hose 1.1/4", 24°, o-ring, heavy, Zn-Ni	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOS), 90° angled, heavy-duty series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt chamber). Material: carbon steel, zinc-nickel.
