Does the DKR-F hydraulic end, type ZBW140, AISI 316 steel (PH) require a specific crimping sleeve size or standard for proper installation?

Yes. The DKR-F hydraulic end, type ZBW140, AISI 316 steel (PH) requires crimping with a sleeve sized and specified for the hose type and marked for PH use. Use a crimping sleeve compatible with the hose construction and diameter and specifically those sleeves whose index ends with â-PHâ (PH-designated sleeves). Follow the hose manufacturerâs recommended sleeve dimensions and the crimping machineâs settings for that hose/sleeve combination to ensure correct swage profile, seal and mechanical strength. Also use the required flat gasket for the flat sealing connection.

Can DKR-F hydraulic end, type ZBW140, AISI 316 steel (PH) be crimped with standard PH-marked sleeves for all hose types?

Yes - DKR-F hydraulic end, type ZBW140, AISI 316 steel (PH) can be crimped with standard PH-marked sleeves, provided the sleeve matches the hose construction and dimensions. The product is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type; use sleeves whose index ends with â-PHâ. Also ensure correct sleeve size and crimping parameters for the specific hose to achieve a secure, leak-free assembly and account for the required flat gasket for sealing.

Is a specific crimping pressure or machine setting required to crimp the DKR-F hydraulic end, type ZBW140, AISI 316 steel (PH)?

Yes. crimping the DKR-F hydraulic end, type ZBW140, AISI 316 steel (PH) requires using crimping settings specific to the hose and sleeve combination. Key points: - Use a crimping sleeve marked ââ¦-PHâ matched to the hose type and to the DKR-F end. These sleeves are sized and profiled for AISI 316 (PH) fittings. - Follow the sleeve manufacturerâs recommended crimp diameter and pressure for the exact hose construction and sleeve index. Stainless (AISI 316) fittings and PH-design sleeves may require different compression values than carbon-steel sleeves. - Use a calibrated hydraulic or mechanical crimper capable of achieving and verifying the specified crimp diameter/pressure. Do not rely on âfeelâ or generic settings. - Verify crimp quality with go/noâgo gauges, measured crimp diameter, and pressure testing per applicable standard or supplier instructions. - If supplier/sleeve documentation for the ZBW140 DKR-F end specifies a crimping chart or machine setting, follow those values exactly. When in doubt, contact the sleeve or fitting supplier for the precise crimp diameter/pressure for the hose/sleeve/fitting combination. In summary: a specific crimp setting is required. use the ââ¦-PHâ sleeve, the sleeve manufacturerâs crimp chart, a calibrated crimper, and perform verification tests.

Fitting hydraulic DKR-F, type ZBW140, AISI 316 (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

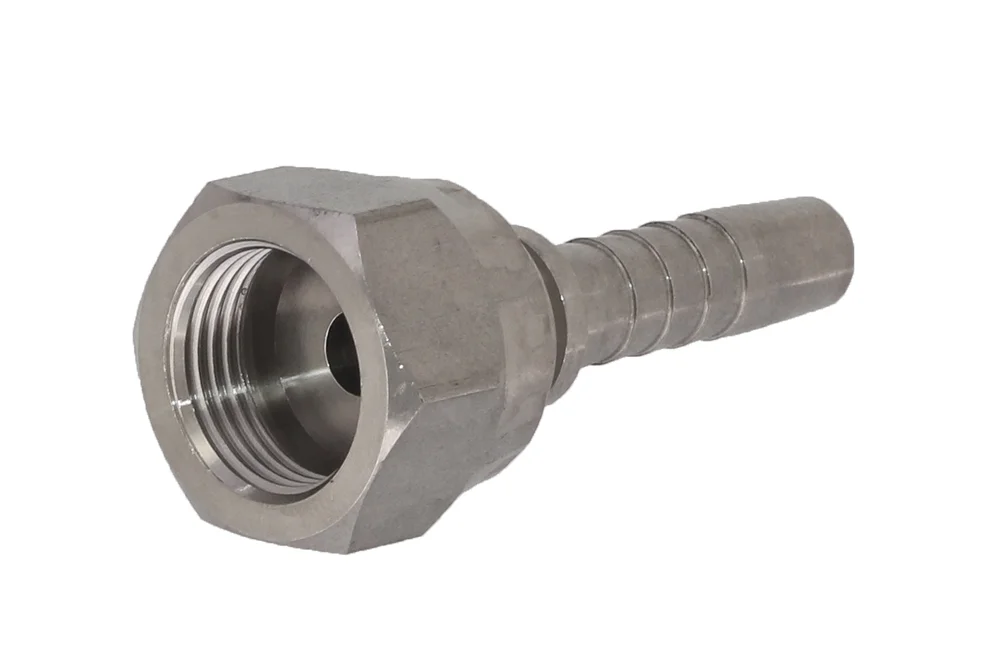

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, flat sealing – requires the use of an additional flat gasket (DKR-F). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type (use ferrules additionally marked with the letters “-PH” at the end of the index). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW140-02-03-SS-PH	Fitting 1/8" BSP female, hose 3/16", face, AISI 316	5		In stock	Enquiry
TI-ZBW140-02-04-SS-PH	Fitting 1/8" BSP female, hose 1/4", face, AISI 316	6		In stock	Enquiry
TI-ZBW140-04-03-SS-PH	Fitting 1/4" BSP female, hose 3/16", face, AISI 316	5	450	In stock	Enquiry
TI-ZBW140-04-04-SS-PH	Fitting 1/4" BSP female, hose 1/4", face, AISI 316	6	450	In stock	Enquiry
TI-ZBW140-04-05-SS-PH	Fitting 1/4" BSP female, hose 5/16", face, AISI 316	8	445	In stock	Enquiry
TI-ZBW140-04-06-SS-PH	Fitting 1/4" BSP female, hose 3/8", face, AISI 316	10	445	In stock	Enquiry
TI-ZBW140-06-04-SS-PH	Fitting 3/8" BSP female, hose 1/4", face, AISI 316	6	445	In stock	Enquiry
TI-ZBW140-06-05-SS-PH	Fitting 3/8" BSP female, hose 5/16", face, AISI 316	8	445	In stock	Enquiry
TI-ZBW140-06-06-SS-PH	Fitting 3/8" BSP female, hose 3/8", face, AISI 316	10	445	In stock	Enquiry
TI-ZBW140-06-08-SS-PH	Fitting 3/8" BSP female, hose 1/2", face, AISI 316	12	415	In stock	Enquiry
TI-ZBW140-08-04-SS-PH	Fitting 1/2" BSP female, hose 1/4", face, AISI 316	6	415	In stock	Enquiry
TI-ZBW140-08-05-SS-PH	Fitting 1/2" BSP female, hose 5/16", face, AISI 316	8	415	In stock	Enquiry
TI-ZBW140-08-06-SS-PH	Fitting 1/2" BSP female, hose 3/8", face, AISI 316	10	415	In stock	Enquiry
TI-ZBW140-08-08-SS-PH	Fitting 1/2" BSP female, hose 1/2", face, AISI 316	12	415	In stock	Enquiry
TI-ZBW140-08-10-SS-PH	Fitting 1/2" BSP female, hose 5/8", face, AISI 316	16	350	In stock	Enquiry
TI-ZBW140-10-08-SS-PH	Fitting 5/8" BSP female, hose 1/2", face, AISI 316	12	350	In stock	Enquiry
TI-ZBW140-10-10-SS-PH	Fitting 5/8" BSP female, hose 5/8", face, AISI 316	16	350	In stock	Enquiry
TI-ZBW140-12-08-SS-PH	Fitting 3/4" BSP female, hose 1/2", face, AISI 316	12	350	In stock	Enquiry
TI-ZBW140-12-10-SS-PH	Fitting 3/4" BSP female, hose 5/8", face, AISI 316	16	350	In stock	Enquiry
TI-ZBW140-12-12-SS-PH	Fitting 3/4" BSP female, hose 3/4", face, AISI 316	20	350	In stock	Enquiry
TI-ZBW140-16-12-SS-PH	Fitting 1" BSP female, hose 3/4", face, AISI 316	20	280	In stock	Enquiry
TI-ZBW140-16-16-SS-PH	Fitting 1" BSP female, hose 1", face, AISI 316	25	280	In stock	Enquiry
TI-ZBW140-20-12-SS-PH	Fitting 1.1/4" BSP female, hose 3/4", face, AISI 316	20	210	In stock	Enquiry
TI-ZBW140-20-16-SS-PH	Fitting 1.1/4" BSP female, hose 1", face, AISI 316	25	210	In stock	Enquiry
TI-ZBW140-20-20-SS-PH	Fitting 1.1/4" BSP female, hose 1.1/4", face, AISI 316	32	210	In stock	Enquiry
TI-ZBW140-24-20-SS-PH	Fitting 1.1/2" BSP female, hose 1.1/4", face, AISI 316	32		In stock	Enquiry
TI-ZBW140-24-24-SS-PH	Fitting 1.1/2" BSP female, hose 1.1/2", face, AISI 316	38		In stock	Enquiry
TI-ZBW140-32-32-SS-PH	Fitting 2" BSP female, hose 2", face, AISI 316	50		In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, flat sealing – requires the use of an additional flat gasket (DKR-F). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type (use ferrules additionally marked with the letters “-PH” at the end of the index). Material: AISI 316.
