Is the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel is compatible with standard crimping sleeves for industrial hydraulic hoses, provided the sleeve matches the hose type and dimensions. The product description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Key points to ensure compatibility: - Use a crimping sleeve sized and rated for the specific hose construction (inner diameter, reinforcement layers, and outer cover). - Follow the hose manufacturerâs and sleeve supplierâs recommendations for crimp dimensions and crimping procedure. - Confirm the internal metric thread, nut, and DKS 24Â°/60Â° metal-to-metal cone sealing are appropriate for your hose assembly and operating pressures. - Verify material and galvanization are acceptable for your application environment. If those conditions are met, standard crimping sleeves for the hose type will be compatible with the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel.

Can the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel be used with metric-threaded hoses requiring metal-to-metal sealing?

Yes. The DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel is specified with an internal metric thread and nut and metal-to-metal sealing (universal cone 24Â°/60Â° DKS), so it is suitable for use with metric-threaded hoses requiring metal-to-metal sealing. It is designed for crimping to hydraulic and industrial hoses using an appropriate crimping sleeve for the hose type. Ensure the hose, sleeve and crimping specifications (dimensions, pressure rating, and material compatibility) match the fitting manufacturerâs recommendations before assembly.

Does the DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel require a specific crimping pressure or diameter for proper installation?

DKS 90Â° hydraulic end, type ZMW212, heavy series, carbon steel: The product description indicates it is intended to be crimped into hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. It does not specify a single universal crimping pressure or sleeve inner diameter in the provided text. Proper crimping pressure/diameter depends on the hose manufacturerâs specifications, the hose size (inner/outer diameter, reinforcement type) and the sleeve geometry recommended for that hose and fitting combination. Practical guidance: - Use the hose manufacturerâs recommended crimping dimensions and pressure for the specific hose model and the matching sleeve type. - Ensure the crimping sleeve is compatible with the heavy-series fitting and the hose construction (covers, reinforcement layers). - Follow crimping machine settings (pressure, die size, depth) specified by the hose or sleeve supplier and perform pull/pressure tests after assembly per relevant standards. - If unsure, contact the hose or fitting supplier for the exact crimping tool/die and pressure parameters for ZMW212 with your hose. Summary: No specific crimping pressure/diameter is given in the description; use the hose and sleeve manufacturerâs prescribed crimping specs and validate assemblies with tests.

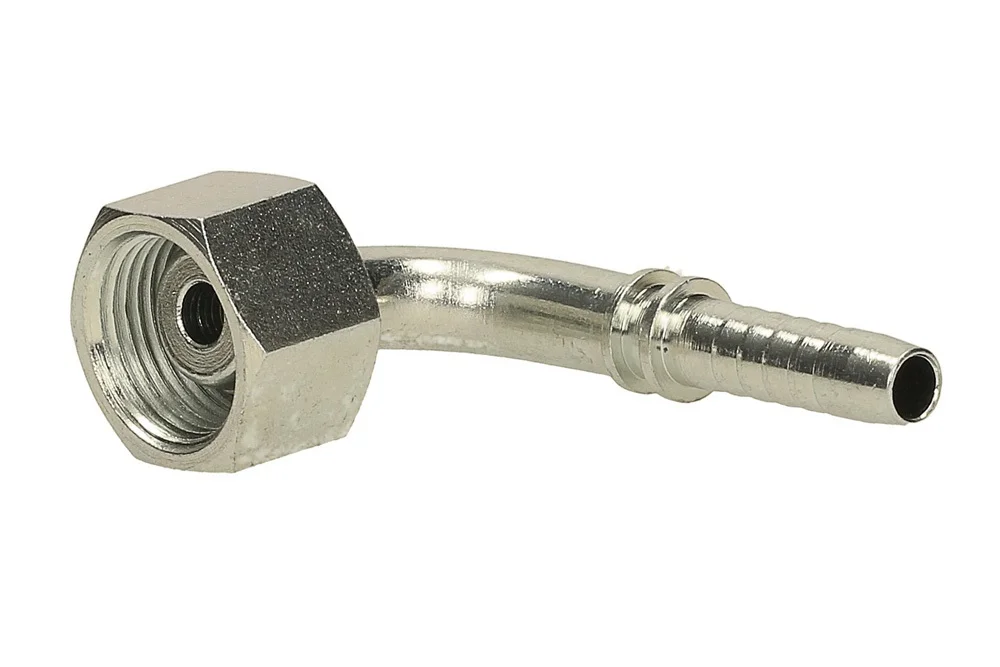

DKS 90° hydraulic end, type ZMW212, heavy series, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKS), 90° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW212-18-04	End fitting 90° G1/2 M18x1.5, hose 1/4", 24/60°, heavy	6	-	In stock	Enquiry
TI-ZMW212-20-05	End fitting 90° G1/2 M20x1.5, hose 5/16", 24/60°, heavy	8	-	In stock	Enquiry
TI-ZMW212-22-06	End fitting 90° G1/2 M22x1.5, hose 3/8", 24/60°, heavy	10	-	In stock	Enquiry
TI-ZMW212-24-08	End. 90° G1 M24x1.5, hose 1/2", 24/60°, heavy	12	-	In stock	Enquiry
TI-ZMW212-30-10	End. 90° G1 M30x2, hose 5/8", 24/60°, heavy	16	-	In stock	Enquiry
TI-ZMW212-36-12	End. 90° G1 M36x2, hose 3/4", 24/60°, heavy	20	-	In stock	Enquiry
TI-ZMW212-42-16	End. 90° G1/2 M42x2, hose 1", 24/60°, heavy	25	-	In stock	Enquiry
TI-ZMW212-52-20	End fitting 90° G1/2 M52x2, hose 1.1/4", 24/60°, heavy	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKS), 90° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
