Is the ORFS hydraulic end, type ZOZ110, carbon steel, Y compatible with standard crimping sleeves for hose assemblies?

Yes. The ORFS hydraulic end, type ZOZ110, carbon steel, Y is designed for crimping in hydraulic and industrial hoses using a crimping sleeve appropriate for the hose type. Its construction (regular hydraulic tail, external UNF thread, face seal with Oâring) and carbon steel, galvanized material are compatible with standard crimping sleeves specified for the hose being used. Ensure you select a sleeve matched to the hose inner/outer diameter and pressure rating, and follow the hose and fitting manufacturerâs crimping specifications and tooling guidelines for proper assembly and safe operation.

Does the ORFS hydraulic end, type ZOZ110, carbon steel, Y require a specific crimping pressure or die profile for proper installation?

The ORFS hydraulic end, type ZOZ110, carbon steel, Y Format does not state a specific crimping pressure or die profile in the provided description. It is designed for crimping using a crimping sleeve suitable for the hose type, so the correct crimping pressure and die profile depend on the hose construction, sleeve specification and manufacturer recommendations. To ensure proper installation, follow the hose and sleeve makerâs published crimping parameters (crimp diameter, pressure, and die type) and use calibrated crimping equipment; if unavailable, consult the hose or fitting supplier for the exact crimp specs.

Can ORFS hydraulic end, type ZOZ110, carbon steel, Y be used with hoses requiring metric crimp sleeves?

Yes. the ORFS hydraulic end, type ZOZ110, carbon steel, Y Format can be used with hoses that require metric crimp sleeves, provided the crimping sleeve selected matches the hose type and dimensions. The product description states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Key requirements for compatibility: - Sleeve profile and size: Use a metric crimp sleeve whose internal profile and diameter match the hose reinforcement and the ZOZ110 tail dimensions. - Crimping machine and die: The crimping tool and dies must be specified for the chosen metric sleeve and hose assembly procedure to achieve correct crimp dimensions and swage pattern. - Seal and thread: ORFS face-seal with Oâring and the external UNF thread remain the same; ensure Oâring and thread engagement are not compromised by the crimping process. - Material and corrosion protection: ZOZ110 is carbon steel, galvanized. verify sleeve material and plating are compatible for the operating environment to avoid galvanic issues. If you confirm the hose manufacturerâs recommended metric sleeve and crimp specifications are followed and the crimping equipment is set accordingly, the ORFS hydraulic end, type ZOZ110, carbon steel, Y Format is suitable for use with metric crimp sleeves.

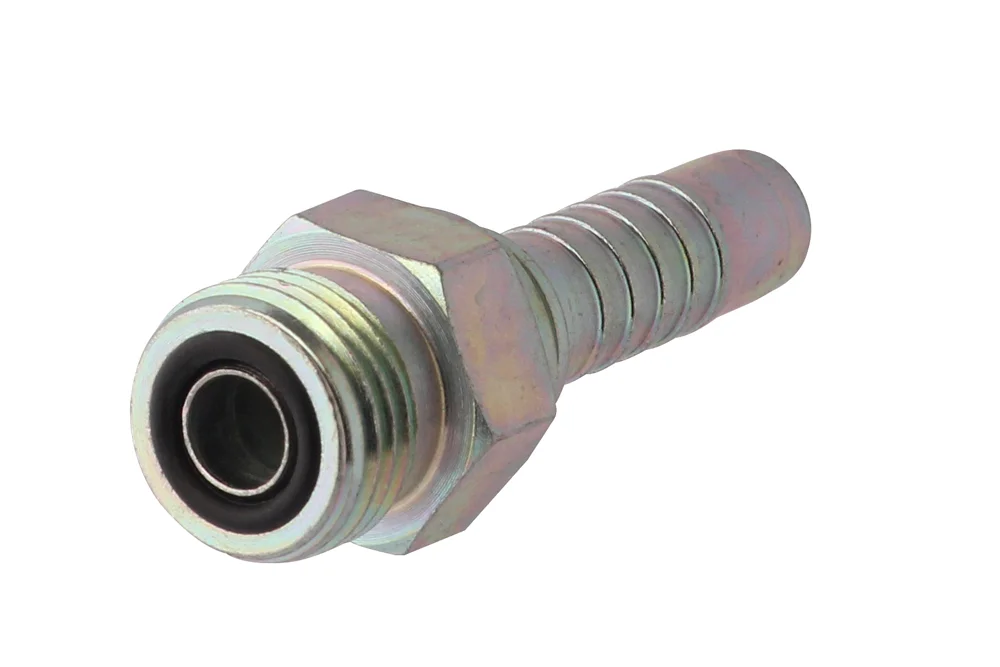

Fitting hydraulic ORFS, type ZOZ110, carbon steel, Y

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with UNF male thread, sealing face with an O-ring (ORFS). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZOZ110-11-04-Y	Fitting ORFS 11/16" male, hose 1/4"	6	-	In stock	Enquiry
TI-ZOZ110-11-06-Y	Fitting ORFS 11/16" male, hose 3/8"	10	-	In stock	Enquiry
TI-ZOZ110-13-06-Y	Fitting ORFS 13/16" male, hose 3/8"	10	-	In stock	Enquiry
TI-ZOZ110-13-08-Y	Fitting ORFS 13/16" male, hose 1/2"	12	-	In stock	Enquiry
TI-ZOZ110-16-08-Y	Fitting ORFS 1" male, hose 1/2"	12	-	In stock	Enquiry
TI-ZOZ110-16-10-Y	Fitting ORFS 1" male, hose 5/8"	16	-	In stock	Enquiry
TI-ZOZ110-19-12-Y	Fitting ORFS 1.3/16" male, hose 3/4"	20	-	In stock	Enquiry
TI-ZOZ110-23-16-Y	Fitting ORFS 1.7/16" male, hose 1"	25	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with UNF male thread, sealing face with an O-ring (ORFS). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
