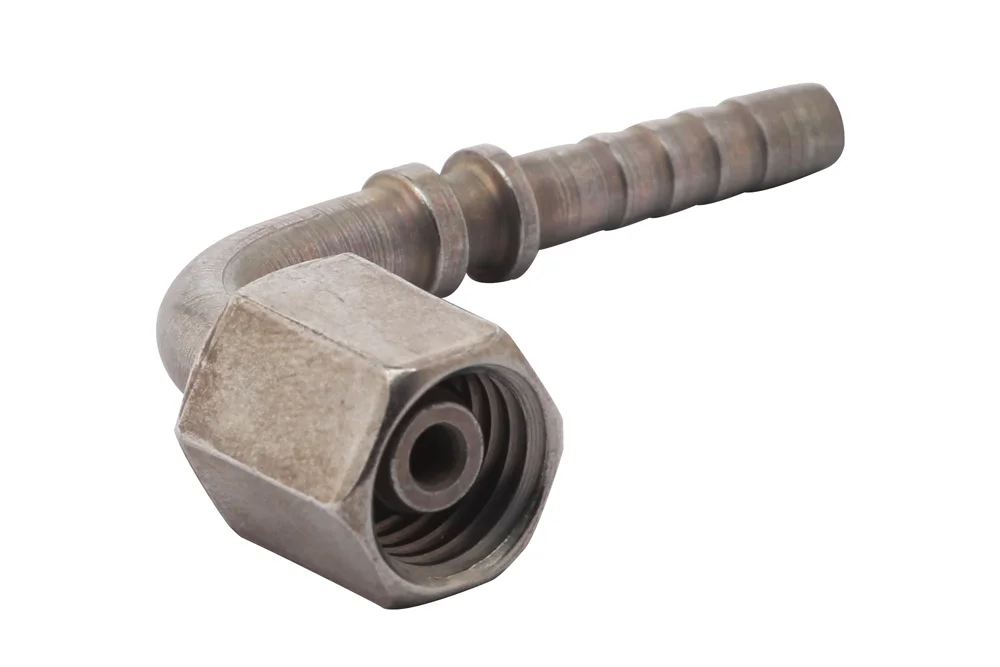

DKOL 90° hydraulic end, type ZMW221, light series, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, sealing with an O-ring on a 24° cone (DKOL), 90° angled, lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW221-12-03-CN	End fitting 90° G1/2 M12x1.5, hose 3/16", 24°, o-ring, lightweight, Zn-Ni	5	-	In stock	Enquiry
TI-ZMW221-12-04-CN	End fitting 90° G1/2 M12x1.5, hose 1/4", 24°, o-ring, lightweight, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW221-14-04-CN	End fitting 90° G1/2 M14x1.5, hose 1/4", 24°, o-ring, lightweight, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW221-16-04-CN	End fitting 90° G1/2 M16x1.5, hose 1/4", 24°, o-ring, lightweight, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW221-16-05-CN	End fitting 90° G1/2 M16x1.5, hose 5/16", 24°, o-ring, lightweight, Zn-Ni	8	-	In stock	Enquiry
TI-ZMW221-16-06-CN	End. 90° G1/2 M16x1.5, hose 3/8", 24°, o-ring, lightweight, Zn-Ni	10	-	In stock	Enquiry
TI-ZMW221-18-05-CN	End fitting 90° G1/2 M18x1.5, hose 5/16", 24°, o-ring, lightweight, Zn-Ni	8	-	In stock	Enquiry
TI-ZMW221-18-06-CN	End fitting 90° G1/2 M18x1.5, hose 3/8", 24°, o-ring, lightweight, Zn-Ni	10	-	In stock	Enquiry
TI-ZMW221-22-08-CN	End. 90° G1/2" M22x1.5, hose 1/2", 24°, o-ring, lightweight, Zn-Ni	12	-	In stock	Enquiry
TI-ZMW221-26-10-CN	End. 90° G1 M26x1.5, hose 5/8", 24°, o-ring, lightweight, Zn-Ni	16	-	In stock	Enquiry
TI-ZMW221-30-12-CN	End. 90° G1 M30x2, hose 3/4", 24°, o-ring, lightweight, Zn-Ni	20	-	In stock	Enquiry
TI-ZMW221-36-16-CN	End. 90° GW M36x2, hose 1", 24°, o-ring, lightweight, Zn-Ni	25	-	In stock	Enquiry
TI-ZMW221-45-20-CN	End fitting 90° G1/2 M45x2, hose 1.1/4", 24°, o-ring, lightweight, Zn-Ni	32	-	In stock	Enquiry
TI-ZMW221-52-24-CN	End fitting 90° G1/2" M52x2, hose 1.1/2", 24°, o-ring, lightweight, Zn-Ni	38	-	In stock	Enquiry
