What is the load capacity (kg/100 bar) and available stroke range for the Hydraulic plunger cylinder, single acting, type SE?

Hydraulic plunger cylinder, single acting, type SE Load capacity: Not fixed.depends on selected piston diameter. For reference, theoretical load (kg) per 100 bar can be calculated from piston area: Load (kg/100 bar) â (Piston area in cmÂ²) Ã 10. Piston diameters available: Ã25, Ã... up to Ã60 mm. - Ã25 mm â area = ÏÃ(1.25 cm)Â² â 4.91 cmÂ² â â 49 kg per 100 bar - Ã60 mm â area = ÏÃ(3.0 cm)Â² â 28.27 cmÂ² â â 283 kg per 100 bar Available stroke range: working stroke from 100 mm to 700 mm. Notes: Maximum working pressure up to 210 bar; exact load scales linearly with pressure and chosen piston diameter.

How is the Hydraulic plunger cylinder, single acting, type SE protected against corrosion and which parts are coated?

Hydraulic plunger cylinder, single acting, type SE is protected against corrosion by chrome-plating the plunger. All other parts are uncoated (no additional protective coatings). The gland is made of cast iron and the main body materials are carbon steel, but only the plunger receives a chrome protective coating.

Hydraulic plunger cylinder, single acting, type SE

Q: What sealing materials are used in the Hydraulic plunger cylinder, single acting, type SE and what temperatures do they withstand?

Hydraulic plunger cylinder, single acting, type SE - Sealing materials used: PU (polyurethane), POM (polyoxymethylene/acetal), and NBR (nitrile rubber). Operating temperature range for these seals (as specified): â30Â°C to +110Â°C.

All products, Hydraulic cylinders/

Additional information

Maximum operating temperature [°C]	110
Minimum operating temperature [°C]	-30
Standard length [m]	10

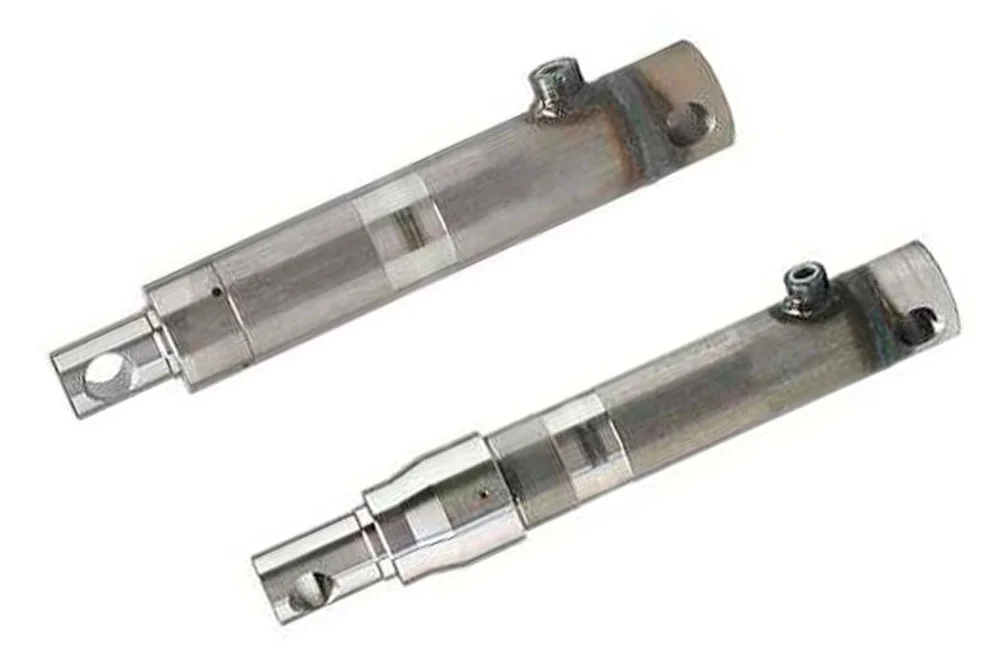

Single-acting plunger actuator with a screw-on gland, designed for hydraulic power systems. Depending on the application, load capacity (expressed in kG/100 bar) and stroke of the actuator must be selected. Repair kits for seals available upon request. Piston diameter: Ø 25 mm to Ø 60 mm. Working stroke: from 100 mm to 700 mm. Maximum working pressure: up to 210 bar. Medium: hydraulic oil. Material: carbon steel, cast iron (gland). Protective coating: chrome-plated plunger, the rest uncoated. Sealing: PU, POM, NBR. Operating temperature: from -30°C to +110°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HS-SE25100	Hydraulic actuator, single-acting, diameter 25/32 mm, stroke 100 mm	-	180	In stock	Enquiry
HS-SE25150	Hydraulic actuator single-acting O 25/32 mm, stroke 150 mm	-	180	In stock	Enquiry
HS-SE25200	Hydraulic actuator single-acting O 25/32 mm, stroke 200 mm	-	180	In stock	Enquiry
HS-SE25250	Hydraulic actuator single-acting O 25/32 mm, stroke 250 mm	-	180	In stock	Enquiry
HS-SE25300	Hydraulic actuator, single-acting, diameter 25/32 mm, stroke 300 mm	-	180	In stock	Enquiry
HS-SE30150	Hydraulic actuator, single-acting, diameter 30/40 mm, stroke 150 mm	-	180	In stock	Enquiry
HS-SE30200	Hydraulic actuator single-acting O 30/40 mm, stroke 200 mm	-	180	In stock	Enquiry
HS-SE30250	Hydraulic actuator single-acting diameter 30/40 mm, stroke 250 mm	-	180	In stock	Enquiry
HS-SE30300	Hydraulic actuator, single-acting, diameter 30/40 mm, stroke 300 mm	-	180	In stock	Enquiry
HS-SE30350	Hydraulic actuator, single-acting, diameter 30/40 mm, stroke 350 mm	-	180	In stock	Enquiry
HS-SE30400	Hydraulic actuator single-acting O 30/40 mm, stroke 400 mm	-	180	In stock	Enquiry
HS-SE30450	Hydraulic actuator, single-acting, diameter 30/40 mm, stroke 450 mm	-	180	In stock	Enquiry
HS-SE30550	Hydraulic actuator, single-acting, diameter 30/40 mm, stroke 550 mm	-	180	In stock	Enquiry
HS-SE30700	Hydraulic actuator, single-acting, diameter 30/40 mm, stroke 700 mm	-	180	In stock	Enquiry
HS-SE40200	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 200 mm	-	180	In stock	Enquiry
HS-SE40250	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 250 mm	-	180	In stock	Enquiry
HS-SE40300	Hydraulic actuator single-acting O 40/50 mm, stroke 300 mm	-	180	In stock	Enquiry
HS-SE40350	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 350 mm	-	180	In stock	Enquiry
HS-SE40400	Hydraulic actuator single-acting O 40/50 mm, stroke 400 mm	-	180	In stock	Enquiry
HS-SE40450	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 450 mm	-	180	In stock	Enquiry
HS-SE40500	Hydraulic actuator single-acting diameter 40/50 mm, stroke 500 mm	-	180	In stock	Enquiry
HS-SE40550	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 550 mm	-	180	In stock	Enquiry
HS-SE40600	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 600 mm	-	180	In stock	Enquiry
HS-SE40700	Hydraulic actuator, single-acting, diameter 40/50 mm, stroke 700 mm	-	180	In stock	Enquiry
HS-SE45200	Hydraulic actuator, single-acting, diameter 45/50 mm, stroke 200 mm	-	210	In stock	Enquiry
HS-SE45300	Hydraulic actuator, single-acting, diameter 45/50 mm, stroke 300 mm	-	210	In stock	Enquiry
HS-SE45400	Hydraulic actuator, single-acting, diameter 45/50 mm, stroke 400 mm	-	210	In stock	Enquiry
HS-SE45550	Hydraulic actuator, single-acting, diameter 45/50 mm, stroke 550 mm	-	210	In stock	Enquiry
HS-SE45700	Hydraulic actuator, single-acting, diameter 45/50 mm, stroke 700 mm	-	210	In stock	Enquiry
HS-SE50200	Hydraulic actuator single-acting diameter 50/55 mm, stroke 200 mm	-	210	In stock	Enquiry
HS-SE50300	Hydraulic actuator single-acting diameter 50/55 mm, stroke 300 mm	-	210	In stock	Enquiry
HS-SE50400	Hydraulic actuator, single-acting, diameter 50/55 mm, stroke 400 mm	-	210	In stock	Enquiry
HS-SE50550	Hydraulic actuator, single-acting, diameter 50/55 mm, stroke 550 mm	-	210	In stock	Enquiry
HS-SE50700	Hydraulic actuator, single-acting, diameter 50/55 mm, stroke 700 mm	-	210	In stock	Enquiry
HS-SE55300	Hydraulic actuator single-acting O 55/60 mm, stroke 300 mm	-	210	In stock	Enquiry
HS-SE55550	Hydraulic actuator, single-acting, diameter 55/60 mm, stroke 550 mm	-	210	In stock	Enquiry
HS-SE55700	Hydraulic actuator, single-acting, diameter 55/60 mm, stroke 700 mm	-	210	In stock	Enquiry
HS-SE60200	Hydraulic actuator, single-acting, diameter 60/65 mm, stroke 200 mm	-	210	In stock	Enquiry
HS-SE60300	Hydraulic actuator, single-acting, diameter 60/65 mm, stroke 300 mm	-	210	In stock	Enquiry
HS-SE60400	Hydraulic actuator single-acting diameter 60/65 mm, stroke 400 mm	-	210	In stock	Enquiry
HS-SE60550	Hydraulic actuator single-acting diameter 60/65 mm, stroke 550 mm	-	210	In stock	Enquiry
HS-SE60700	Hydraulic actuator, single-acting, diameter 60/65 mm, stroke 700 mm	-	210	In stock	Enquiry
