Is the Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD suitable for pulsating pressure if working pressure is reduced by 50%?

Yes . Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD is suitable for pulsating pressure provided the working pressure is reduced by 50% as specified. Reasoning: - The product description explicitly states: "For pulsating pressure, the maximum working pressure should be reduced by 50%." - The coupling is designed for heavy-duty hydraulic service (hydraulic oil) and constructed from AISI 316 stainless steel with appropriate seals (Viton or NBR) and a safety factor of 4:1, supporting reliable use under demanding conditions. - Ensure selection of the correct seal material (Viton for higher temperatures up to +200Â°C; NBR for lower temperature range) and confirm the diameter-specific maximum working pressure (up to 300 bar) before applying the 50% reduction for pulsation. Also verify flow requirements (pressure drop provided for 3 bar) against your system needs.

Can the Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD be used with steam and chemicals at high temperatures?

Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD Format: Yes-with limits. The product is specified for industrial media including steam and chemicals and is made of AISI 316 stainless steel, suitable up to 300 bar (depending on size). Critical constraints: sealing material and temperature range. With Viton seals the operating range is â20Â°C to +200Â°C (suitable for many highâtemperature steam/chemical applications); with NBR seals the range is â30Â°C to +100Â°C (not suitable for high temperatures). For pulsating pressure reduce maximum working pressure by 50%. Always verify chemical compatibility with Viton or NBR for specific chemicals and confirm required pressure/temperature ratings for your coupling diameter and service conditions.

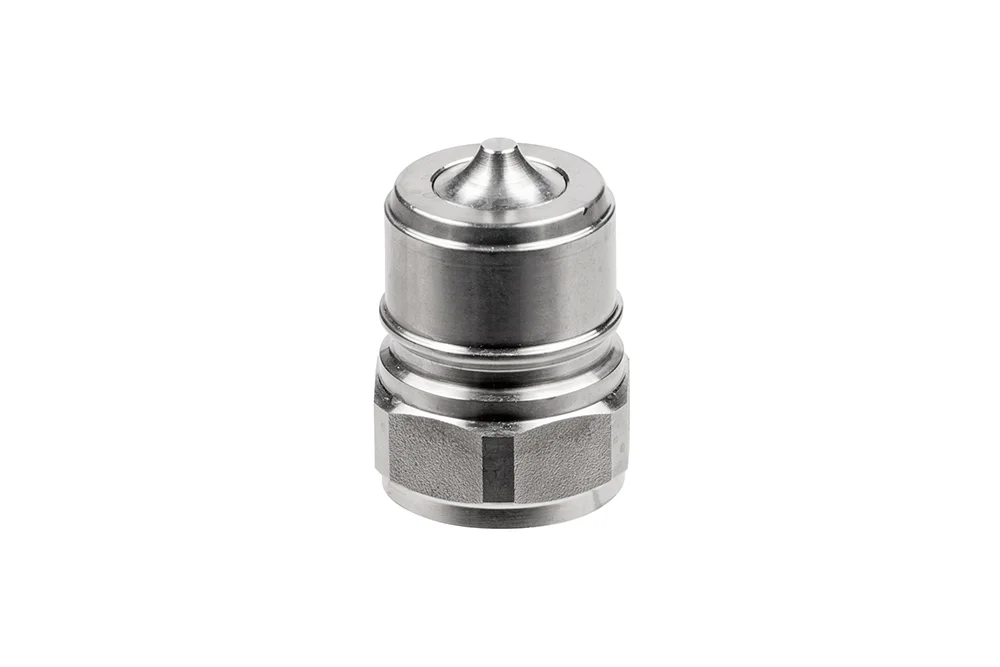

Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD

Q: Can the Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD be used for gases and chemicals?

Yes. Hydraulic quick coupling with valve, plug with GW BSP, stainless steel, TEMA STANDARD can be used for gases and chemicals, with the following constraints: - The product description explicitly lists gases and chemicals among intended industrial applications. - Material compatibility: body is AISI 316 stainless steel, suitable for many chemicals and gases, but verify specific media compatibility (corrosive or aggressive chemicals may require special alloys or coatings). - Seals: available in Viton (â20Â°C to +200Â°C) and NBR (â30Â°C to +100Â°C). Ensure the chosen seal material is chemically compatible with the specific gas or chemical and temperature range. - Pressure/temperature: working pressure up to 300 bar (depends on diameter); safety factor 4:1. For pulsating pressure, reduce maximum working pressure by 50%. Confirm the operating pressure and any pulsation characteristics of your system. - Other considerations: check for gas tightness requirements (leak rate), regulatory or safety requirements for the specific gas (e.g., toxic, flammable), and service conditions (flow/pressure drop was specified for a 3 bar drop). Recommendation: confirm chemical compatibility with AISI 316 and the selected seal (Viton or NBR), verify required pressure/temperature margins (including pulsation reduction), and assess leak-tightness and safety/regulatory needs for the specific gas or chemical before use.

All products, Hydraulic quick couplings/

Additional information

Material	SS – stainless steel

TEMA STANDARD quick coupling plug (NORDIC RANGE) with shut-off valve and internal thread BSP, NPT. Designed for heavy-duty working conditions. For pulsating pressure, the maximum working pressure should be reduced by 50%. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: stainless steel AISI 316. Working pressure: up to 300 bar (depending on diameter). Safety factor 4:1. Sealing: viton, NBR. Operating temperature: from -20°C to +200°C – viton, from -30°C to +100°C – NBR. Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TA-H-10020RV	SS plug with 1" BSP thread, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-10020RVNPT	SS plug with 1" NPT thread, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-15020RV	SS plug with GW 1.1/2" BSP, Viton seal, with valve	-	150	In stock	Enquiry
TA-H-20020RV	SS plug with 2" BSP, Viton seal, with valve	-	120	In stock	Enquiry
TA-H-2320RFV	SS plug with 1/8" BSP thread, Viton seal, with valve	-	200	In stock	Enquiry
TA-H-2520RF	SS plug with 1/4" BSP thread, nitrile seal, with MS valve	-	250	In stock	Enquiry
TA-H-2520RFV	SS plug with 1/4" BSP thread, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-2520RV	SS plug with 1/4" BSP thread, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-3820RV	SS plug with 3/8" BSP thread, Viton seal, with valve	-	300	In stock	Enquiry
TA-H-5020RV	SS plug with 1/2" BSP thread, Viton seal, with valve	-	300	In stock	Enquiry
TA-H-7520RV	SS plug with 3/4" BSP thread, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-7520RVNPT	SS plug with 3/4" NPT, Viton seal, with valve	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

TEMA STANDARD quick coupling plug (NORDIC RANGE) with shut-off valve and internal thread BSP, NPT. Designed for heavy-duty working conditions. For pulsating pressure, the maximum working pressure should be reduced by 50%. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: stainless steel AISI 316. Working pressure: up to 300 bar (depending on diameter). Safety factor 4:1. Sealing: viton, NBR. Operating temperature: from -20°C to +200°C – viton, from -30°C to +100°C – NBR. Flow has been provided for a pressure drop of 3 bar.
