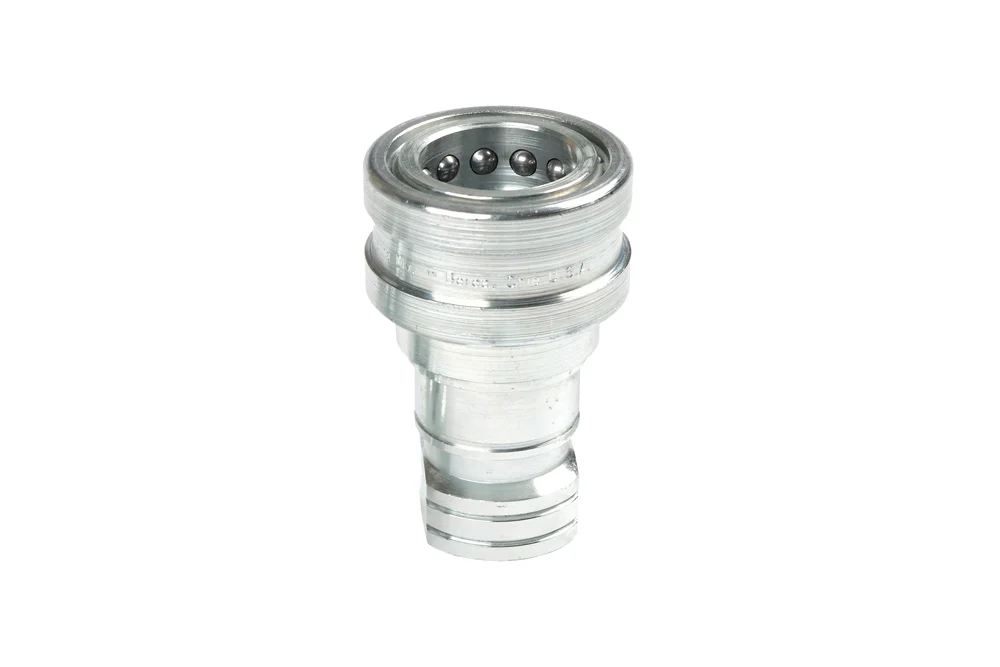

ISO-B quick-connection socket with GW (1/8″ ÷ 1″) in galvanized steel, HANSEN, type HK
HANSEN type HK quick coupling socket with internal thread. Compliant with ISO 7241-1 B standard. Can alternatively be connected with ISO-B quick couplings from other manufacturers. Quick couplings made of carbon steel in sizes from 1/2” to 1” are made of special hardened steel, providing increased resistance to pressure pulsations. In the case of pulsating pressure at the disconnected coupling, the maximum working pressure should be reduced by 50%. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases, chemicals). Thread: BSP, NPT. Material: galvanized steel. Sealing: NBR, viton. Operating temperature: from -40°C to +204°C (depending on the type of sealing). Working pressure: up to 345 bar (depending on the size of the quick coupling). Flow is given for a pressure drop of 3 bar.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
HANSEN type HK quick coupling socket with internal thread. Compliant with ISO 7241-1 B standard. Can alternatively be connected with ISO-B quick couplings from other manufacturers. Quick couplings made of carbon steel in sizes from 1/2” to 1” are made of special hardened steel, providing increased resistance to pressure pulsations. In the case of pulsating pressure at the disconnected coupling, the maximum working pressure should be reduced by 50%. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases, chemicals). Thread: BSP, NPT. Material: galvanized steel. Sealing: NBR, viton. Operating temperature: from -40°C to +204°C (depending on the type of sealing). Working pressure: up to 345 bar (depending on the size of the quick coupling). Flow is given for a pressure drop of 3 bar.
Additional information
| Material | CS – steel (cast iron) |
|---|
