Can the Lever hose crimper UPS-1 and UPS-2 crimp EC-type ferrules across the stated DN ranges without changing jaw sets, and is the EC-100250 base required for any sizes?

Yes. The Lever hose crimper UPS-1 and UPS-2 come standard with two sets of jaws (6 segments each) that cover the stated DN ranges without changing jaw sets: UPS-1 covers DN 3â8 (EC ferrules Ã 8â17 mm) and DN 10â16 (EC ferrules Ã 18â28 mm); UPS-2 covers DN 20 (EC ferrules Ã 30â34 mm) and DN 25 (EC ferrules Ã 32â38 mm). The EC-100250 base is optional and may be purchased separately; it is not listed as required for any of the stated sizes.

Do the Lever hose crimper UPS-1 and UPS-2 include both jaw sets for all listed EC ferrule sizes, or must jaws be swapped for certain DN ranges?

The Lever hose crimper UPS-1 and UPS-2 each come standard with two sets of jaws (6 segments per set). These two standard jaw sets together cover the listed EC ferrule ranges for each model, but you must swap between those two sets to crimp different DN ranges. UPS-1: one jaw set for DN 3â8 (EC ferrule ID 8â17 mm) and the other for DN 10â16 (EC ferrule ID 18â28 mm). UPS-2: one jaw set for DN 20 (EC ferrule ID 30â34 mm) and the other for DN 25 (EC ferrule ID 32â38 mm). An additional base EC-100250 is available separately.

Are both jaw sets included with the Lever hose crimper UPS-1, UPS-2 for all EC ferrule sizes or sold separately?

Both jaw sets are included as standard with the Lever hose crimper UPS-1, UPS-2. The press is delivered with two sets of jaws (each set has 6 crimping segments) covering the specified EC ferrule size ranges for UPS-1 (EC ferrules 8â17 mm and 18â28 mm) and UPS-2 (EC ferrules 30â34 mm and 32â38 mm).

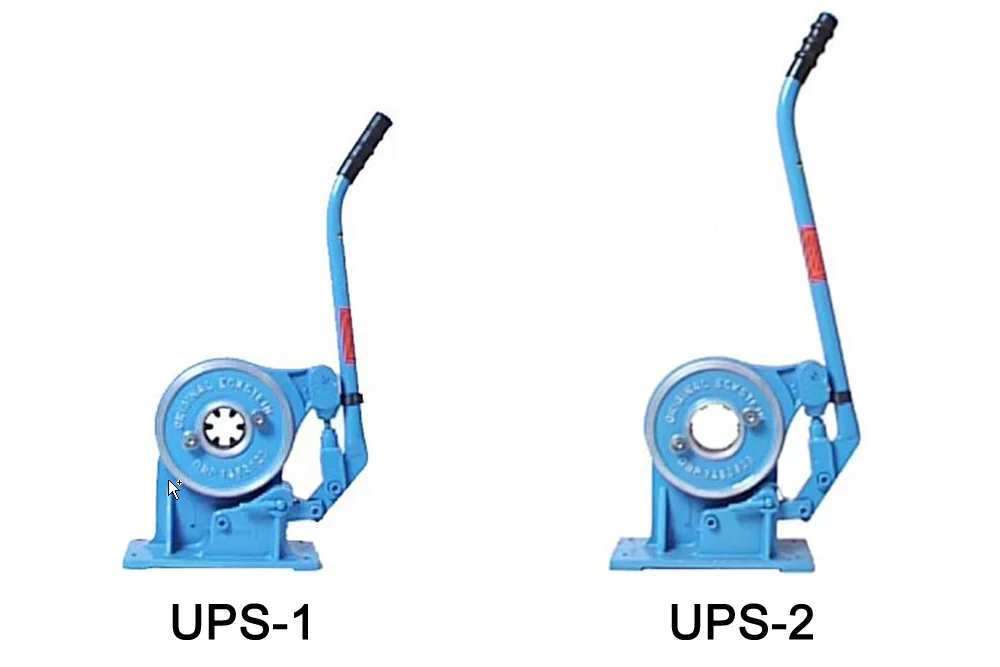

Lever hose crimper UPS-1, UPS-2

Additional information

The UPS crimping press is designed for crimping textile-reinforced hoses with EC-type ferrules using a manual lever. It is standardly equipped with two sets (6 crimping segments each) of jaws. The working range for the internal diameter of crimped hoses for the UPS-1 press: DN 3 ÷ 8 (internal diameter range of EC ferrules: 8 ÷ 17 mm), DN 10 ÷ 16 (internal diameter range of EC ferrules: 18 ÷ 28 mm). The working range for the internal diameter of crimped hoses for the UPS-2 press: DN 20 (internal diameter range of EC ferrules: 30 ÷ 34 mm), DN 25 (internal diameter range of EC ferrules: 32 ÷ 38 mm). An additional base with the index EC-100250 can be purchased for the press.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EC-UPS-1	UPS 1 type pressing machine	-	-	In stock	0 zł		Enquiry
EC-UPS-2	UPS 2 type pressing machine	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The UPS crimping press is designed for crimping textile-reinforced hoses with EC-type ferrules using a manual lever. It is standardly equipped with two sets (6 crimping segments each) of jaws. The working range for the internal diameter of crimped hoses for the UPS-1 press: DN 3 ÷ 8 (internal diameter range of EC ferrules: 8 ÷ 17 mm), DN 10 ÷ 16 (internal diameter range of EC ferrules: 18 ÷ 28 mm). The working range for the internal diameter of crimped hoses for the UPS-2 press: DN 20 (internal diameter range of EC ferrules: 30 ÷ 34 mm), DN 25 (internal diameter range of EC ferrules: 32 ÷ 38 mm). An additional base with the index EC-100250 can be purchased for the press.
