Lightweight, eco-friendly extraction hose ECO 0.6

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral

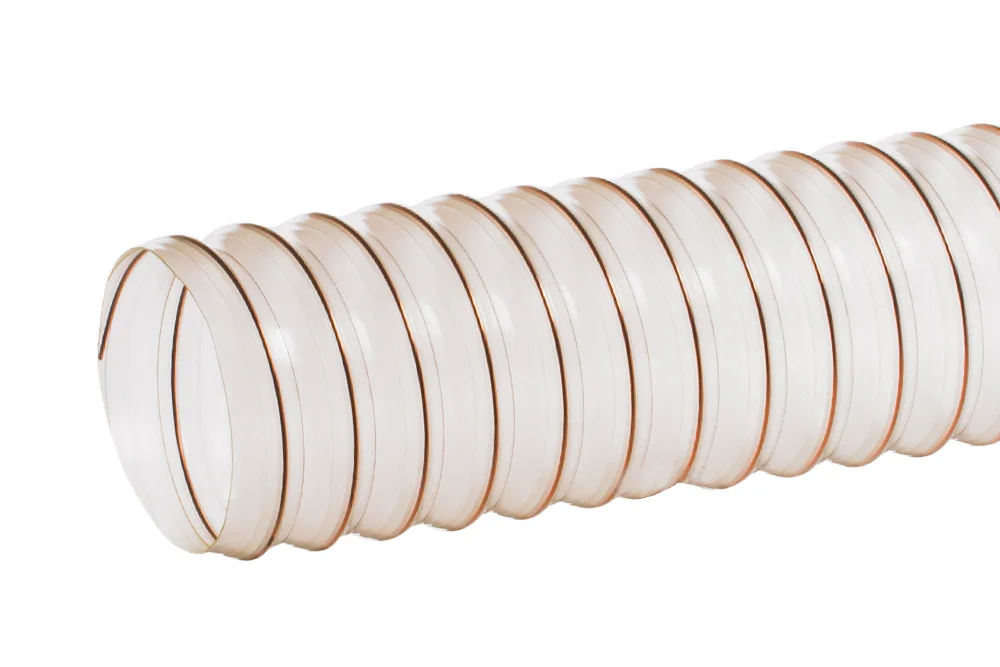

Lightweight, flexible hose designed for the conveyance of air, dust, powders, wood shavings, fine chips, light bulk materials, etc. Suitable for all types of industries, particularly frequently used for dust extraction and the removal of fine solid particles in the woodworking, furniture, ceramics, and plastics industries. Flexible and elastic, even at low temperatures. Compressible, smoother inside compared to ECO 0.4 hose. Good abrasion resistance, also resistant to microbes and hydrolysis. Non-toxic, free from halogen compounds and plasticizers. Resistant to oils and gasoline. The hose is marked with an arrow indicating the correct direction of medium flow. Wall thickness of the hose is measured between the spiral. Installation on couplings with bridge clamps (right-handed). Other diameters may be available upon special request. The hose is available in the following versions: ECO – standard version, ECO SE – flame-retardant material version (without fire classification), ECO AS – permanently antistatic version ISO 8031: R <109 Ω, TRGS 727 (6.4.2.4): R <2.5 x 108 Ωm, directive 2014/34/EU (ATEX): can be used in specific explosion hazard zones after risk analysis, ECO SE AS – antistatic and flame-retardant version (available on special request). The ECO hose is produced in a manufacturing process compliant with sustainable development policies, using raw materials from recycled clean production waste, renewable energy, closed water cycles, and other innovations. Hose material: transparent polyester-polyurethane. Reinforcement: steel wire spiral. Wall thickness measured between the spiral: 0.6 mm. Operating temperature: from -40°C to +100°C (temporarily up to +125°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-ECO-025-06ECO hose 0.6 25 mm251.55In stock
Enquiry
SC-ECO-038-06ECO hose 0.6 38 mm381.36In stock
Enquiry
SC-ECO-040-06ECO hose 0.6 40 mm501.26In stock
Enquiry
SC-ECO-060-06ECO hose 0.6 60 mm600.98In stock
Enquiry
SC-ECO-060-06SEECO SE Hose 0.6 60 mm600.98In stock
Enquiry
SC-ECO-065-06ECO hose 0.6 65 mm650.81In stock
Enquiry
SC-ECO-065-06SEECO SE Hose 0.6 65 mm650.81In stock
Enquiry
SC-ECO-070-06SEECO SE hose 0.6 70 mm700.69In stock
Enquiry
SC-ECO-075-06SEECO SE hose 0.6 75 mm750.69In stock
Enquiry
SC-ECO-080-06ECO hose 0.6 80 mm800.69In stock
Enquiry
SC-ECO-080-06SEECO SE Hose 0.6 80 mm800.69In stock
Enquiry
SC-ECO-090-06ECO hose 0.6 90 mm900.6In stock
Enquiry
SC-ECO-090-06SEECO SE Hose 0.6 90 mm900.6In stock
Enquiry
SC-ECO-100-06ECO hose 0.6 100 mm1000.5In stock
Enquiry
SC-ECO-100-06SEECO SE hose 0.6 100 mm1000.5In stock
Enquiry
SC-ECO-110-06ECO hose 0.6 110 mm1100.41In stock
Enquiry
SC-ECO-110-06SEECO SE Hose 0.6 110 mm1100.41In stock
Enquiry
SC-ECO-120-06ECO hose 0.6 120 mm1200.36In stock
Enquiry
SC-ECO-120-06SEECO SE hose 0.6 120 mm1200.36In stock
Enquiry
SC-ECO-125-06ECO hose 0.6 125 mm1250.31In stock
Enquiry
SC-ECO-125-06SEECO SE hose 0.6 125 mm1250.31In stock
Enquiry
SC-ECO-130-06ECO hose 0.6 130 mm1300.26In stock
Enquiry
SC-ECO-130-06SEECO SE hose 0.6 130 mm1300.26In stock
Enquiry
SC-ECO-140-06ECO hose 0.6 140 mm1400.22In stock
Enquiry
SC-ECO-140-06SEECO SE hose 0.6 140 mm1400.22In stock
Enquiry
SC-ECO-150-06ECO hose 0.6 150 mm1500.17In stock
Enquiry
SC-ECO-150-06SEECO SE hose 0.6 150 mm1500.17In stock
Enquiry
SC-ECO-160-06ECO hose 0.6 160 mm1600.14In stock
Enquiry
SC-ECO-160-06SEECO SE hose 0.6 160 mm1600.14In stock
Enquiry
SC-ECO-175-06SEECO SE hose 0.6 175 mm1800.14In stock
Enquiry
SC-ECO-180-06ECO hose 0.6 180 mm1800.12In stock
Enquiry
SC-ECO-180-06SEECO SE Hose 0.6 180 mm1800.12In stock
Enquiry
SC-ECO-200-06ECO hose 0.6 200 mm2000.12In stock
Enquiry
SC-ECO-200-06SEECO SE hose 0.6 200 mm2000.12In stock
Enquiry
SC-ECO-225-06ECO hose 0.6 225 mm2250.07In stock
Enquiry
SC-ECO-225-06SEECO SE hose 0.6 225 mm2250.07In stock
Enquiry
SC-ECO-250-06SEECO SE Hose 0.6 250 mm2500.04In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Lightweight, flexible hose designed for the conveyance of air, dust, powders, wood shavings, fine chips, light bulk materials, etc. Suitable for all types of industries, particularly frequently used for dust extraction and the removal of fine solid particles in the woodworking, furniture, ceramics, and plastics industries. Flexible and elastic, even at low temperatures. Compressible, smoother inside compared to ECO 0.4 hose. Good abrasion resistance, also resistant to microbes and hydrolysis. Non-toxic, free from halogen compounds and plasticizers. Resistant to oils and gasoline. The hose is marked with an arrow indicating the correct direction of medium flow. Wall thickness of the hose is measured between the spiral. Installation on couplings with bridge clamps (right-handed). Other diameters may be available upon special request. The hose is available in the following versions: ECO – standard version, ECO SE – flame-retardant material version (without fire classification), ECO AS – permanently antistatic version ISO 8031: R <109 Ω, TRGS 727 (6.4.2.4): R <2.5 x 108 Ωm, directive 2014/34/EU (ATEX): can be used in specific explosion hazard zones after risk analysis, ECO SE AS – antistatic and flame-retardant version (available on special request). The ECO hose is produced in a manufacturing process compliant with sustainable development policies, using raw materials from recycled clean production waste, renewable energy, closed water cycles, and other innovations. Hose material: transparent polyester-polyurethane. Reinforcement: steel wire spiral. Wall thickness measured between the spiral: 0.6 mm. Operating temperature: from -40°C to +100°C (temporarily up to +125°C).

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral
