Can the Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK be connected or disconnected under pressure up to 300 bar safely?

Yes . the Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK can be connected and disconnected under pressure safely up to 300 bar. The product description states that connection of the socket to the permanently installed hardened-steel plug is possible under pressure up to 300 bar (switching pressure). Operating (working) pressure ratings are 600 bar for the plug alone and for the connected socketâplug assembly, with minimum burst pressures of 2400 bar (plug alone) and 1300 bar (connected assembly). These specifications, together with precise manufacturing and NBR sealing, support safe make/break operations up to the stated 300 bar switching pressure when used within the given temperature and installation guidelines.

Is the Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK compatible with standard hydraulic hoses rated 600 bar?

Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK is compatible with standard hydraulic hoses rated 600 bar. The productâs working pressure when connected to the plug is 600 bar (plug unconnected also rated 600 bar), connection under pressure up to 300 bar, and minimum burst pressures (connected assembly 1300 bar, plug alone 2400 bar) confirm suitability. Ensure hose fittings and seals (NBR) and temperature range (â30Â°C to +100Â°C) match your hose specifications.

Does the Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK include red protective caps as standard?

Yes. Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK includes red protective caps as standard.

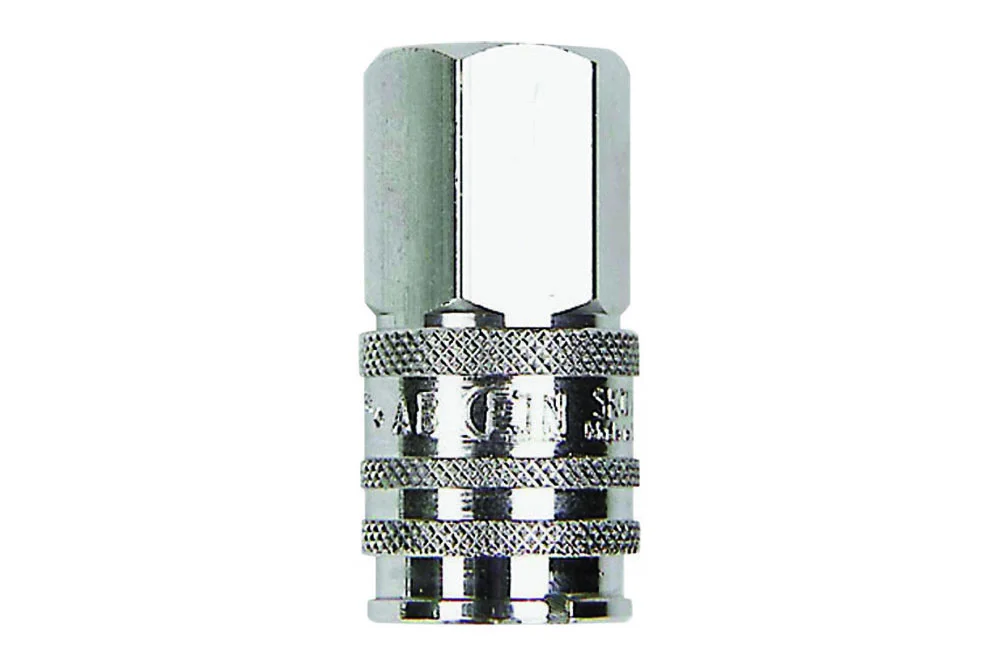

Socket for quick gauge connector with GW, without valve, CEJN 358 SNAP-CHECK

All products, Quick-connect measurement fittings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

Measurement quick-connect socket SNAP-CHECK manufactured in Sweden, designed for pressure measurement in hydraulic systems. Quick-connect plugs made of hardened steel are permanently installed in the hydraulic system, while the quick-connect sockets are connected by a hose to the pressure gauge. Connection of the socket to the plug is possible under pressure up to 300 bar. The working pressure for the plug not connected to the socket is 600 bar, and the minimum burst pressure is 2400 bar. The working pressure for the connected socket and plug is also 600 bar, while the minimum burst pressure is 1300 bar. The precise manufacturing of the quick-connects ensures the tightness and reliability of the measurement points in the hydraulic system. The connection range for measurement plugs allows for easy configuration of the connection. Quick-connect sockets are supplied as standard with red plastic caps. Working pressure: 600 bar. Switching pressure: up to 300 bar. Body material: galvanized steel. Sealing: NBR. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-H-103580202	Snap-Check measurement quick-connect socket, GW 1/4" BSP	-	600	In stock	0 zł		Enquiry
CJ-H-103580402	Snap-Check measurement quick-connect socket without valve, GW 1/4" NPT	-	600	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Measurement quick-connect socket SNAP-CHECK manufactured in Sweden, designed for pressure measurement in hydraulic systems. Quick-connect plugs made of hardened steel are permanently installed in the hydraulic system, while the quick-connect sockets are connected by a hose to the pressure gauge. Connection of the socket to the plug is possible under pressure up to 300 bar. The working pressure for the plug not connected to the socket is 600 bar, and the minimum burst pressure is 2400 bar. The working pressure for the connected socket and plug is also 600 bar, while the minimum burst pressure is 1300 bar. The precise manufacturing of the quick-connects ensures the tightness and reliability of the measurement points in the hydraulic system. The connection range for measurement plugs allows for easy configuration of the connection. Quick-connect sockets are supplied as standard with red plastic caps. Working pressure: 600 bar. Switching pressure: up to 300 bar. Body material: galvanized steel. Sealing: NBR. Operating temperature: from -30°C to +100°C.
