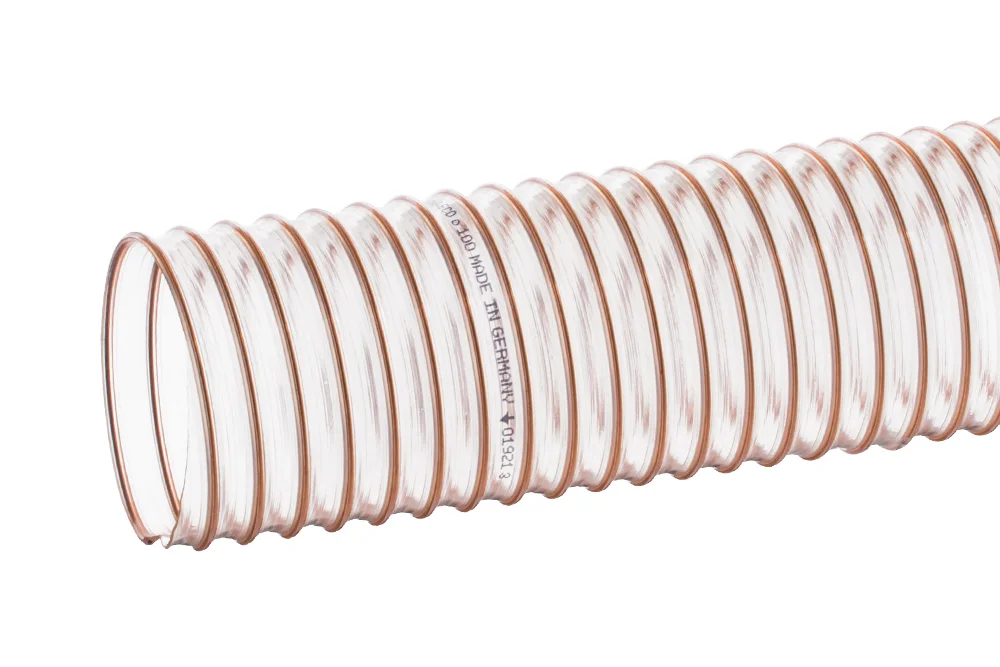

Medium thickness, eco-friendly extraction hose ECO 1.0

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral

Strong, flexible medium-thickness hose designed for the transport of chips, bulk materials, granules, etc. Suitable for all types of industries, particularly commonly used for the removal of chips and other solid particles in the woodworking, furniture, ceramics, and plastics industries. The medium-thick wall and dense reinforcing spiral provide higher pressure parameters compared to ECO hoses 0.4, 0.6, and 0.7. Very smooth on the inside, low compressibility, and flexible – even at low temperatures. Good abrasion resistance, also resistant to microbes and hydrolysis. Non-toxic, free from halogen compounds and plasticizers. Resistant to oils and gasoline. The hose is marked with an arrow indicating the correct direction of medium flow. The wall thickness of the hose is measured between the spiral. Installation on couplings with bridge clamps (right-handed). Other diameters may be available upon special request. The hose is available in the following versions: ECO – standard version, ECO SE – flame-retardant material version (UL94 V-2), ECO AS – permanently antistatic version (ISO 8031: R <109 Ω, TRGS 727 (6.4.2.4): R <2.5 x 108 Ωm, directive 2014/34/EU (ATEX): can be used in specific explosion hazard zones after risk analysis), ECO SE AS – antistatic and flame-retardant version (available on special order). The ECO hose is produced in a manufacturing process compliant with sustainable development policies, using raw materials from recycled clean waste from the production process, renewable energy, closed water circulation, and other innovations. Hose material: transparent polyester-polyurethane. Reinforcement: steel wire spiral. Wall thickness measured between the spiral: 1.0 mm. Operating temperature: from -40°C to +100°C (temporarily up to +125°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-ECO-040-10ECO Hose 1.0 40 mm401.25In stock
Enquiry
SC-ECO-040-10SEECO SE Hose 1.0 40 mm401.25In stock
Enquiry
SC-ECO-050-10ECO Hose 1.0 50 mm501.2In stock
Enquiry
SC-ECO-050-10SEECO SE Hose 1.0 50 mm501.2In stock
Enquiry
SC-ECO-060-10ECO Hose 1.0 60 mm601.15In stock
Enquiry
SC-ECO-060-10SEECO SE Hose 1.0 60 mm601.15In stock
Enquiry
SC-ECO-065-10ECO Hose 1.0 65 mm651.12In stock
Enquiry
SC-ECO-065-10SEECO SE Hose 1.0 65 mm651.12In stock
Enquiry
SC-ECO-070-10ECO Hose 1.0 70 mm701.08In stock
Enquiry
SC-ECO-070-10SEECO SE Hose 1.0 70 mm701.08In stock
Enquiry
SC-ECO-075-10ECO Hose 1.0 75 mm751.05In stock
Enquiry
SC-ECO-075-10SEECO SE Hose 1.0 75 mm751.05In stock
Enquiry
SC-ECO-080-10ECO Hose 1.0 80 mm801.05In stock
Enquiry
SC-ECO-080-10SEECO SE Hose 1.0 80 mm801.05In stock
Enquiry
SC-ECO-090-10ECO Hose 1.0 90 mm900.85In stock
Enquiry
SC-ECO-090-10SEECO SE Hose 1.0 90 mm900.85In stock
Enquiry
SC-ECO-100-10ECO Hose 1.0 100 mm1000.7In stock
Enquiry
SC-ECO-100-10SEECO SE Hose 1.0 100 mm1000.7In stock
Enquiry
SC-ECO-110-10ECO Hose 1.0 110 mm1100.65In stock
Enquiry
SC-ECO-110-10SEECO SE Hose 1.0 110 mm1100.65In stock
Enquiry
SC-ECO-120-10ECO Hose 1.0 120 mm1200.65In stock
Enquiry
SC-ECO-120-10SEECO SE Hose 1.0 120 mm1200.65In stock
Enquiry
SC-ECO-125-10ECO Hose 1.0 125 mm1250.55In stock
Enquiry
SC-ECO-130-10ECO Hose 1.0 130 mm1300.55In stock
Enquiry
SC-ECO-130-10SEECO SE Hose 1.0 130 mm1300.55In stock
Enquiry
SC-ECO-140-10ECO Hose 1.0 140 mm1400.55In stock
Enquiry
SC-ECO-140-10SEECO SE Hose 1.0 140 mm1400.55In stock
Enquiry
SC-ECO-150-10ECO Hose 1.0 150 mm1500.45In stock
Enquiry
SC-ECO-150-10SEECO SE Hose 1.0 150 mm1500.45In stock
Enquiry
SC-ECO-160-10ECO Hose 1.0 160 mm1600.4In stock
Enquiry
SC-ECO-160-10SEECO SE Hose 1.0 160 mm1600.4In stock
Enquiry
SC-ECO-175-10SEECO SE Hose 1.0 175 mm1800.36In stock
Enquiry
SC-ECO-180-10ECO Hose 1.0 180 mm1800.35In stock
Enquiry
SC-ECO-180-10SEECO SE Hose 1.0 180 mm1800.35In stock
Enquiry
SC-ECO-200-10ECO Hose 1.0 200 mm2000.3In stock
Enquiry
SC-ECO-200-10SEECO SE Hose 1.0 200 mm2000.3In stock
Enquiry
SC-ECO-225-10ECO Hose 1.0 225 mm2250.25In stock
Enquiry
SC-ECO-225-10SEECO SE Hose 1.0 225 mm2250.25In stock
Enquiry
SC-ECO-250-10ECO Hose 1.0 250 mm2500.25In stock
Enquiry
SC-ECO-250-10SEECO SE Hose 1.0 250 mm2500.25In stock
Enquiry
SC-ECO-275-10ECO Hose 1.0 275 mm2750.22In stock
Enquiry
SC-ECO-275-10SEECO SE Hose 1.0 275 mm2750.22In stock
Enquiry
SC-ECO-300-10ECO Hose 1.0 300 mm3000.2In stock
Enquiry
SC-ECO-300-10SEECO SE Hose 1.0 300 mm3000.2In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Strong, flexible medium-thickness hose designed for the transport of chips, bulk materials, granules, etc. Suitable for all types of industries, particularly commonly used for the removal of chips and other solid particles in the woodworking, furniture, ceramics, and plastics industries. The medium-thick wall and dense reinforcing spiral provide higher pressure parameters compared to ECO hoses 0.4, 0.6, and 0.7. Very smooth on the inside, low compressibility, and flexible – even at low temperatures. Good abrasion resistance, also resistant to microbes and hydrolysis. Non-toxic, free from halogen compounds and plasticizers. Resistant to oils and gasoline. The hose is marked with an arrow indicating the correct direction of medium flow. The wall thickness of the hose is measured between the spiral. Installation on couplings with bridge clamps (right-handed). Other diameters may be available upon special request. The hose is available in the following versions: ECO – standard version, ECO SE – flame-retardant material version (UL94 V-2), ECO AS – permanently antistatic version (ISO 8031: R <109 Ω, TRGS 727 (6.4.2.4): R <2.5 x 108 Ωm, directive 2014/34/EU (ATEX): can be used in specific explosion hazard zones after risk analysis), ECO SE AS – antistatic and flame-retardant version (available on special order). The ECO hose is produced in a manufacturing process compliant with sustainable development policies, using raw materials from recycled clean waste from the production process, renewable energy, closed water circulation, and other innovations. Hose material: transparent polyester-polyurethane. Reinforcement: steel wire spiral. Wall thickness measured between the spiral: 1.0 mm. Operating temperature: from -40°C to +100°C (temporarily up to +125°C).
