Can BANJO metric RNM hydraulic end, type ZMB600, carbon steel be used with crimping sleeves specific to industrial hose types?

Yes. BANJO metric RNM hydraulic end, type ZMB600, carbon steel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. As a standard Z-type hydraulic tail with metric RNM screw, it is compatible with crimping sleeves matched to the hose internal diameter, reinforcement type and material. Ensure the sleeve profile, crimp dimensions and crimper settings follow the hose and sleeve manufacturerâs specifications, and verify the galvanized carbon steel fittingâs pressure rating and thread compatibility with the hose assembly requirements before final installation.

Does BANJO metric RNM hydraulic end, type ZMB600, carbon steel require specific crimping sleeve dimensions?

NoâBANJO metric RNM hydraulic end, type ZMB600, carbon steel does not require a unique or proprietary crimping sleeve dimension. According to the product description, it is designed for crimping into hydraulic and industrial hoses using a crimping sleeve appropriate to the specific hose type. Therefore you must select a sleeve sized and shaped to match the hose inner diameter, wall construction and manufacturer recommendations (and compatible with the ZMB600 endâs tail profile), and use a suitable crimping die/profile for that hose/sleeve combination. Also ensure crimp dimensions, crimping force and inspection meet the hose and crimping machine manufacturerâs specifications and relevant hydraulic standards.

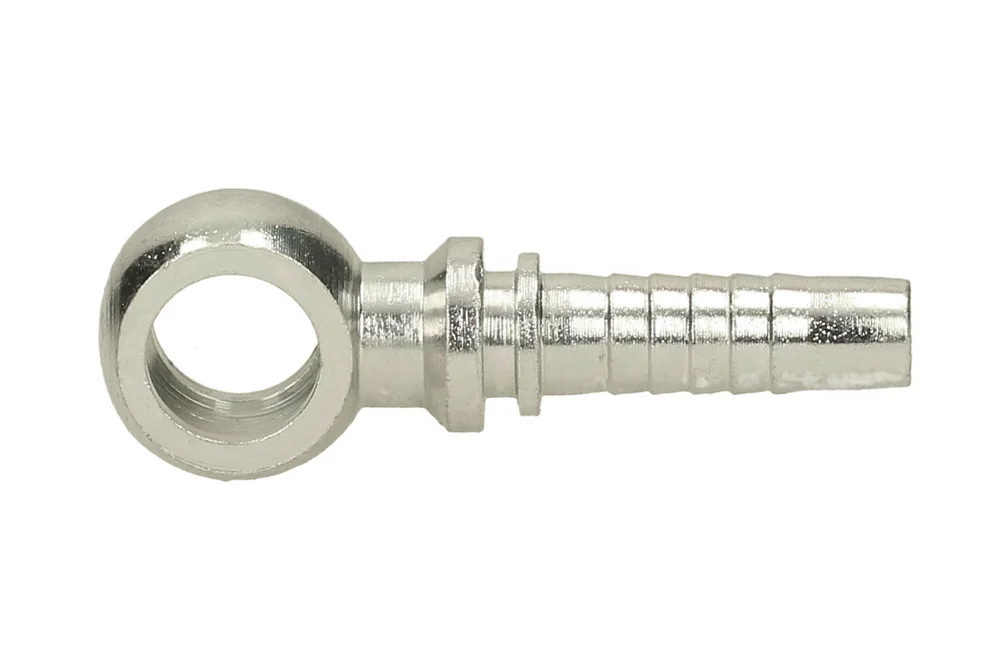

BANJO metric RNM hydraulic end, type ZMB600, carbon steel

Q: Is the BANJO metric RNM hydraulic end, type ZMB600, carbon steel compatible with standard crimping sleeves for hydraulic hose crimping?

Yes. The BANJO metric RNM hydraulic end, type ZMB600, carbon steel is designed for crimping with a standard crimping sleeve corresponding to the hose type. It is a standard hydraulic end fitting (type Z) with a regular hydraulic tail made for insertion into hydraulic and industrial hoses and is explicitly described as âdesigned for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose.â Ensure you use the correct sleeve material, dimensions and crimp profile recommended by the hose manufacturer and crimping machine settings for the hose size and construction. Proper sleeve selection and correct crimping parameters are essential for a reliable, leak-free connection.

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), BANJO for screw with metric thread (RNM). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMB600-10-03	End. BANJO M10, hose 3/16"	5	-	In stock	Enquiry
TI-ZMB600-10-04	End. BANJO M10, hose 1/4"	6	-	In stock	Enquiry
TI-ZMB600-12-03	End. BANJO M12, hose 3/16"	5	-	In stock	Enquiry
TI-ZMB600-12-04	End. BANJO M12, hose 1/4"	6	-	In stock	Enquiry
TI-ZMB600-12-05	End. BANJO M12, hose 5/16"	8	-	In stock	Enquiry
TI-ZMB600-12-06	End. BANJO M12, hose 3/8"	10	-	In stock	Enquiry
TI-ZMB600-14-03	End. BANJO M14, hose 3/16"	5	-	In stock	Enquiry
TI-ZMB600-14-04	End. BANJO M14, hose 1/4"	6	-	In stock	Enquiry
TI-ZMB600-14-05	End. BANJO M14, hose 5/16"	8	-	In stock	Enquiry
TI-ZMB600-14-06	End. BANJO M14, hose 3/8"	10	-	In stock	Enquiry
TI-ZMB600-16-04	End. BANJO M16, hose 1/4"	6	-	In stock	Enquiry
TI-ZMB600-16-05	End. BANJO M16, hose 5/16"	8	-	In stock	Enquiry
TI-ZMB600-16-06	End. BANJO M16, hose 3/8"	10	-	In stock	Enquiry
TI-ZMB600-18-05	End. BANJO M18, hose 5/16"	8	-	In stock	Enquiry
TI-ZMB600-18-06	End. BANJO M18, hose 3/8"	10	-	In stock	Enquiry
TI-ZMB600-18-08	End. BANJO M18, hose 1/2"	12	-	In stock	Enquiry
TI-ZMB600-20-06	End. BANJO M20, hose 3/8"	10	-	In stock	Enquiry
TI-ZMB600-20-08	End. BANJO M20, hose 1/2"	12	-	In stock	Enquiry
TI-ZMB600-22-08	End. BANJO M22, hose 1/2"	12	-	In stock	Enquiry
TI-ZMB600-22-10	End. BANJO M22, hose 5/8"	16	-	In stock	Enquiry
TI-ZMB600-26-10	End. BANJO M26, hose 5/8"	16	-	In stock	Enquiry
TI-ZMB600-26-12	End. BANJO M26, hose 3/4"	20	-	In stock	Enquiry
TI-ZMB600-30-12	End. BANJO M30, hose 3/4"	20	-	In stock	Enquiry
TI-ZMB600-30-16	End. BANJO M30, hose 1"	25	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), BANJO for screw with metric thread (RNM). Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
