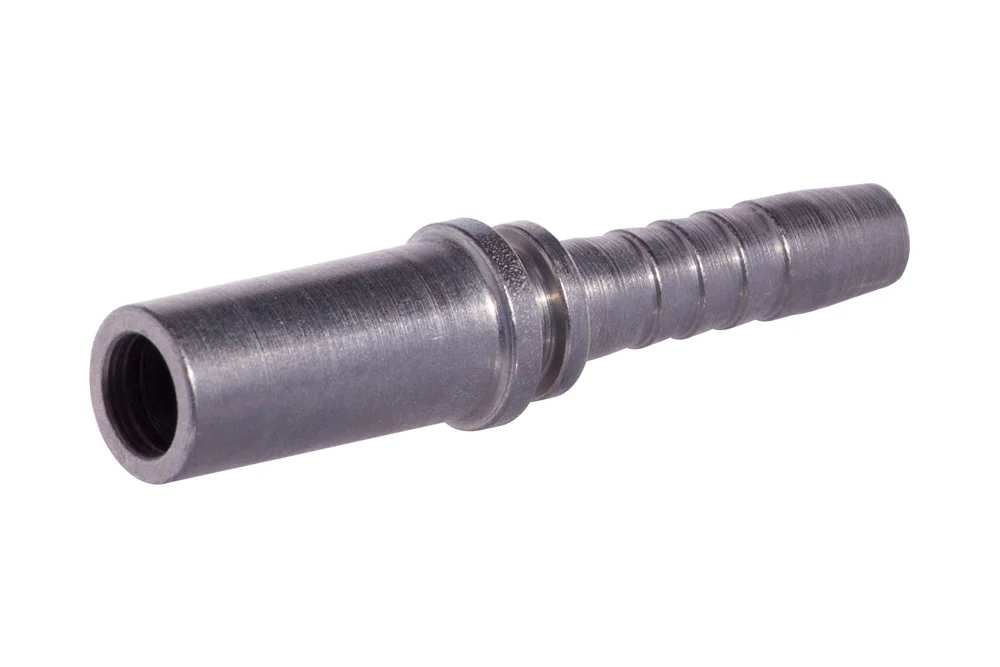

Fitting tube metric BES, type ZMR112, series heavy, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with tube metric, cutting-ring sealing (BES), series heavy. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMR112-08-04-CN	Fitting tube 8 mm, hose 1/4", heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMR112-10-04-CN	Fitting tube 10 mm, hose 1/4", heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMR112-12-04-CN	Fitting tube 12 mm, hose 1/4", heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMR112-12-05-CN	Fitting tube 12 mm, hose 5/16", heavy, Zn-Ni	8	-	In stock	Enquiry
TI-ZMR112-14-06-CN	Fitting tube 14 mm, hose 3/8", heavy, Zn-Ni	10	-	In stock	Enquiry
TI-ZMR112-14-08-CN	Fitting tube 14 mm, hose 1/2", heavy, Zn-Ni	12	-	In stock	Enquiry
TI-ZMR112-16-08-CN	Fitting tube 16 mm, hose 1/2", heavy, Zn-Ni	12	-	In stock	Enquiry
TI-ZMR112-20-10-CN	Fitting tube 20 mm, hose 5/8", heavy, Zn-Ni	16	-	In stock	Enquiry
TI-ZMR112-20-12-CN	Fitting tube 20 mm, hose 3/4", heavy, Zn-Ni	20	-	In stock	Enquiry
TI-ZMR112-25-12-CN	Fitting tube 25 mm, hose 3/4", heavy, Zn-Ni	20	-	In stock	Enquiry
TI-ZMR112-25-16-CN	Fitting tube 25 mm, hose 1", heavy, Zn-Ni	25	-	In stock	Enquiry
TI-ZMR112-30-16-CN	Fitting tube 30 mm, hose 1", heavy, Zn-Ni	25	-	In stock	Enquiry
TI-ZMR112-38-20-CN	Fitting tube 38 mm,hose 1.1/4", heavy, Zn-Ni	32	-	In stock	Enquiry
