Does the Pilot reduction valve for compressed air REG P, SKILLAIRÂ® series require filtered air and is a small air bleed normal during operation?

Pilot reduction valve for compressed air REG P, SKILLAIRÂ® series does require filtered air and a small air bleed during normal operation. The product description recommends using filtered air, and it states that the presence of a slight air bleed is necessary for proper function and is not a sign of damage (this is typical for large-sized pressure reducing valves).

Can the Pilot reduction valve for compressed air REG P, SKILLAIRÂ® series handle inlet pressures up to 13 bar and what are the available output pressure ranges?

Pilot reduction valve for compressed air REG P, SKILLAIRÂ® series can handle supply (inlet) pressures up to 13 bar. Available output pressure ranges are: 0â2, 0â4, 0â8 and 0â12 bar.

Is the slight air bleed from the Pilot reduction valve for compressed air REG P, SKILLAIRÂ® series indicative of damage or normal operation?

The slight air bleed from the Pilot reduction valve for compressed air REG P, SKILLAIRÂ® series is normal and not indicative of damage. This pilot-operated pressure reducing valve relies on a small bleed to function correctly, providing high accuracy and low hysteresis by minimizing friction. A slight continuous leak is typicalâespecially in larger-sized pressure reducing valves (series 400)âand necessary for proper regulation. To ensure optimal performance and reduce wear, use properly filtered air.

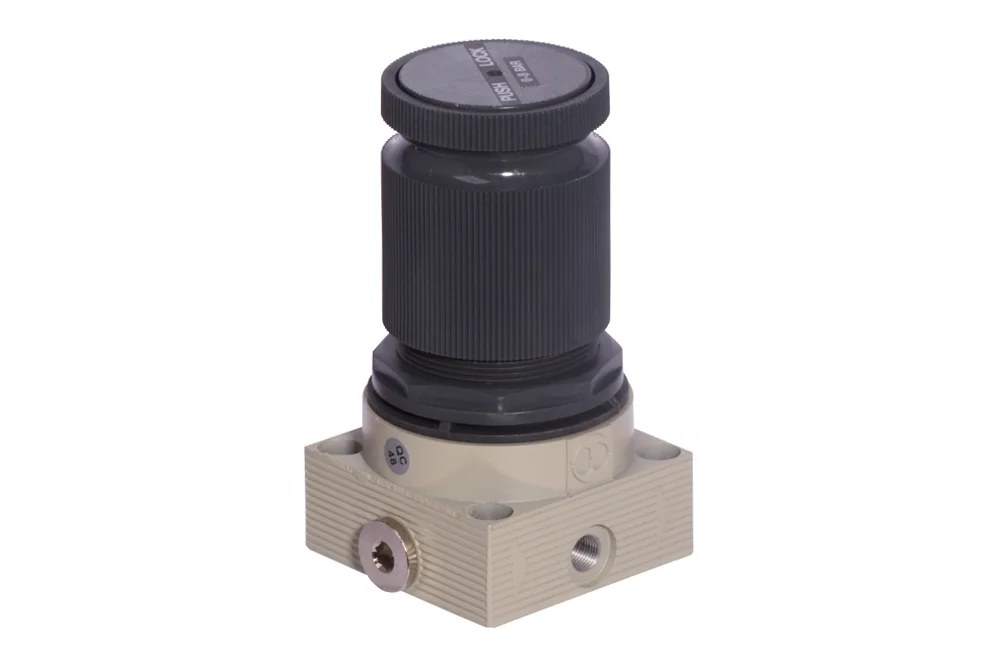

Valve reducing pilot for compressed air REG P, series SKILLAIR®

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

Valve reducing pilot REG P, series SKILLAIR®, serves for maintaining pressure air everywhere tam, where required is high accuracy its setting, at variable conditions use. W a valve practically eliminated friction, thanks to which is characterized on mentioned earlier high accuracy and low hysteresis. presence slight bleed air is necessary for correct use valve and not is a sign its damage. typical for valves reducing large dimensions (series 400). recommended use air filtered. Size: 1/4″. range pressure output: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 13 bar. Operating temperature: up to +50°C. Connection: 1/4″ BSP female. Pressure gauge connection: 1/8″ BSP female. Flow rate: 140 l/min (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3206001	Reducing valve pilot REG P 1/4 02 (SKILLAIR)	-	-	In stock	Enquiry
MW-3206002	Reducing valve pilot REG P 1/4 04 (SKILLAIR)	-	-	In stock	Enquiry
MW-3206003	Reducing valve pilot REG P 1/4 08 (SKILLAIR)	-	-	In stock	Enquiry
MW-3206004	Reducing valve pilot REG P 1/4 012 (SKILLAIR)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Valve reducing pilot REG P, series SKILLAIR®, serves for maintaining pressure air everywhere tam, where required is high accuracy its setting, at variable conditions use. W a valve practically eliminated friction, thanks to which is characterized on mentioned earlier high accuracy and low hysteresis. presence slight bleed air is necessary for correct use valve and not is a sign its damage. typical for valves reducing large dimensions (series 400). recommended use air filtered. Size: 1/4″. range pressure output: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 13 bar. Operating temperature: up to +50°C. Connection: 1/4″ BSP female. Pressure gauge connection: 1/8″ BSP female. Flow rate: 140 l/min (at an inlet pressure of 6 bar Δp = 1 bar).
