A cross plug-in, type R40

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

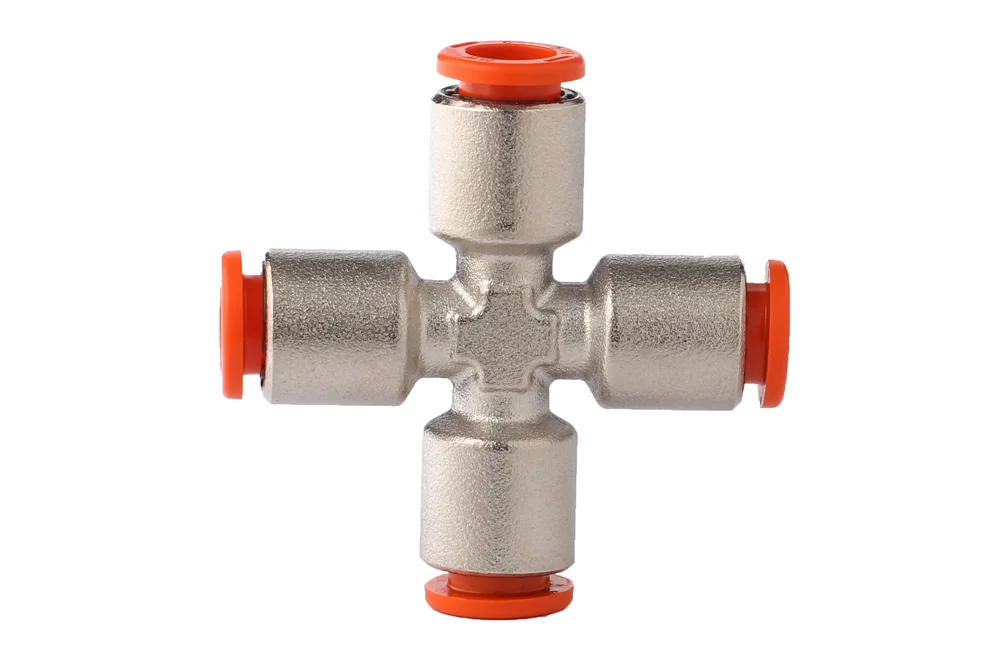

A cross plug-in, type R40, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2L40001	Cross fitting RL40 hose 4 mm	-	16	In stock	Enquiry
MW-2L40003	Cross fitting RL40 hose 6 mm	-	16	In stock	Enquiry
MW-2L40004	Cross fitting RL40 hose 8 mm	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A cross plug-in, type R40, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.
