Does the Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE require special maintenance for the NBR seal to ensure reliable performance?

The Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE does not require unusual maintenance, but proper care of the NBR seal is important to ensure reliable performance and service life. Recommended maintenance practices: - Regular inspection: check the NBR seal for cuts, swelling, hardening, or extrusion every few months or per your facilityâs maintenance schedule. - Cleaning: keep the sealing surfaces and mating plug clean from dirt, debris and particles that may abrade or displace the NBR. Use a clean, lintâfree cloth and compressed air; avoid aggressive solvents. - Lubrication: if needed, apply a thin film of compatible pneumatic-grade oil or silicone-free lubricant approved for NBR to ease coupling and reduce wear. Do not use petroleum-based solvents that can degrade NBR. - Avoid incompatible chemicals and temperatures: NBR works in the specified operating range (â20Â°C to +100Â°C). Prevent exposure to oils, fuels or chemicals known to swell or harden NBR outside recommended conditions. - Replace when worn: replace the NBR seal if you notice air leaks, difficulty coupling, or visible deterioration. Keep spare seals on hand for quick replacement to maintain safety features (disconnection without pressure). - Pressure and usage: operate within specified working pressure (16 bar) and typical duty cycles; excessive pressure spikes or mechanical abuse can shorten seal life. Following these standard precautions will maintain reliable performance of the Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE and its NBR seal in typical pneumatic installations.

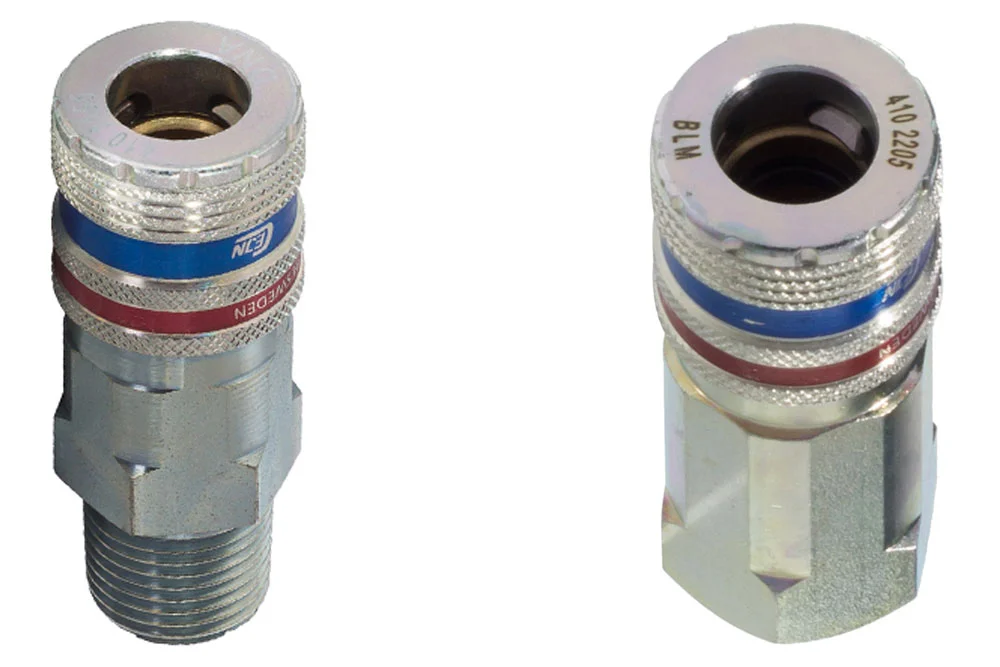

Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE

Q: Can the Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE be safely disconnected under pressure to prevent recoil?

No . the Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE cannot be safely disconnected under pressure. The CEJN DN10.4 quick coupling socket in ESAFE version is designed for disconnection without pressure to avoid the risk of recoil and is compliant with ISO 4414 and EN 983 standards. That means the coupling must be depressurized before disconnecting; it incorporates a valve and safety features to prevent accidental recoil, but safe disconnection requires the system pressure to be removed first. Operating data: Eurostandard DN10, working pressure 16 bar, flow 4000 l/min (Pe=6 bar, Îp=0.5 bar), material brass/galvanized steel, NBR seals, temperature â20Â°C to +100Â°C.

Q: Is the Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE suitable for one-handed connection in confined spaces?

Yes. The Socket for pneumatic quick-release coupling DN10.4 with valve, threaded, carbon steel, CEJN 410 ESAFE is suitable for one-handed connection in confined spaces. It is designed for one-handed operation with minimal force required for connection, compliant with ISO 4414 and EN 983 for safe disconnection without pressure, and its compact DN10 Eurostandard construction and threaded BSP/BSPT options make it versatile for tight pneumatic installations. Operating pressure up to 16 bar and a high flow rate (4000 l/min at Pe=6 bar) ensure effective performance in confined environments.

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)

CEJN DN10.4 quick coupling socket in ESAFE version (disconnection without pressure to avoid the risk of recoil, compliant with ISO 4414 and EN 983 standards) with external BSPT thread or internal BSP thread. Versatile use in the industry, mainly in pneumatic installations. Operated with one hand with minimal force required for connection. Manufactured according to Eurostandard DN10. Working pressure: 16 bar. Flow rate: 4000 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/galvanized steel. Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CJ-104102154	CEJN 410 ESAFE quick coupling socket, GZ 3/8" BSPT	-	16	In stock	Enquiry
CJ-104102155	CEJN 410 ESAFE quick coupling socket, GZ 1/2" BSPT	-	16	In stock	Enquiry
CJ-104102157	CEJN 410 ESAFE quick coupling socket, GZ 3/4" BSPT	-	16	In stock	Enquiry
CJ-104102204	CEJN 410 ESAFE quick coupling socket, 3/8" BSP thread	-	16	In stock	Enquiry
CJ-104102205	CEJN 410 ESAFE quick coupling socket, 1/2" BSP thread	-	16	In stock	Enquiry
CJ-104102207	CEJN 410 ESAFE quick coupling socket, 3/4" BSP thread	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

CEJN DN10.4 quick coupling socket in ESAFE version (disconnection without pressure to avoid the risk of recoil, compliant with ISO 4414 and EN 983 standards) with external BSPT thread or internal BSP thread. Versatile use in the industry, mainly in pneumatic installations. Operated with one hand with minimal force required for connection. Manufactured according to Eurostandard DN10. Working pressure: 16 bar. Flow rate: 4000 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/galvanized steel. Sealing: NBR. Operating temperature: from -20°C to +100°C.
