Is the Clamping tool PW 4-8 suitable for crimping hoses with textile reinforcement using EC type crimping sleeves in a bench vice?

Yes. Clamping tool PW 4-8 is specifically designed for clamping hoses with textile reinforcement using EC type crimping sleeves, and the crimping operation is performed in a bench vice. It covers a working range for hose internal diameters of approximately 5â10 mm and weighs 2.5 kg, making it suitable for that application.

Can Clamping tool PW 4-8 crimp hoses with textile reinforcement when used with EC sleeves for 5â10 mm internal diameters?

Yes. Clamping tool PW 4-8 is designed for crimping hoses with textile reinforcement using EC-type crimping sleeves. It operates with a bench vice and covers an internal hose diameter range of approximately 5â10 mm, so it can crimp EC sleeves for hoses within that range. Weight: 2.5 kg.

Does Clamping tool PW 4-8 require any special preparation of the hose or sleeve before crimping?

Clamping tool PW 4-8 does not explicitly require any special or complex preparation of the hose or sleeve beyond standard good-practice steps for crimping textile-reinforced hoses with EC-type sleeves. Before crimping you should: - Cut the hose squarely and remove any damaged or flattened end. - Ensure the hose internal bore is clean and free of debris. - Slide the appropriate EC crimping sleeve onto the hose, positioning it according to the sleeve manufacturerâs recommended overlap and insertion depth. - Verify the hose and sleeve match the toolâs working range (hose internal diameter approx. 5â10 mm). - Secure the assembly in a bench vise as the crimping operation will be performed using the vise with Clamping tool PW 4-8. If the sleeve or hose manufacturer gives additional preparation or lubricant instructions, follow those.

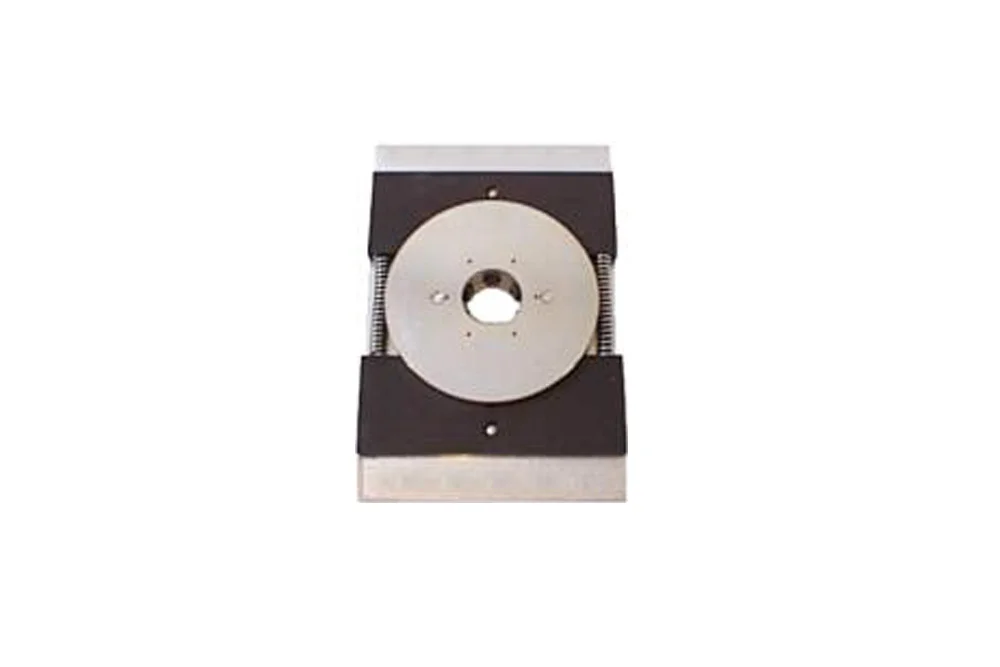

Clamping tool PW 4-8

Additional information

Small clamping tool PW 4-8 designed for clamping hoses with textile reinforcement using EC type crimping sleeves. The crimping is performed using a bench vice. Working range (internal diameter of the hose) approx. 5 ÷ 10 mm. Weight: 2.5 kg.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
EC-PW4-8	Clamping tool	-	-

Small clamping tool PW 4-8 designed for clamping hoses with textile reinforcement using EC type crimping sleeves. The crimping is performed using a bench vice. Working range (internal diameter of the hose) approx. 5 ÷ 10 mm. Weight: 2.5 kg.
