Is the Quick connector socket for water DN11.8 with GW, stainless steel compatible with standard high-pressure hoses and water guns up to 200 bar and +100Â°C?

Yes. The Quick connector socket for water DN11.8 with GW, stainless steel is compatible with standard high-pressure hoses and water guns rated up to 200 bar and +100Â°C. The product description states a working pressure of 200 bar and an operating temperature up to +100Â°C, uses AISI 303/304L stainless steel construction and Viton sealing.materials commonly used for high-pressure, high-temperature cleaning equipment.so it matches those specifications. Ensure mating threads and coupling type (DN11.8 with internal thread/GW) match your hose/gun fittings before use.

Can the Quick connector socket for water DN11.8 with GW, stainless steel be used with Viton seals in hot-water applications up to +100Â°C?

Yes. The Quick connector socket for water DN11.8 with GW, stainless steel uses Viton seals and is specified for an operating temperature up to +100Â°C and a working pressure of 200 bar. Given the material (AISI 303/304L) and the stated sealing and temperature rating, it is suitable for hot-water applications up to +100Â°C. Ensure compatibility with any specific chemicals or steam exposure, and verify installation and maintenance practices to maintain seal performance.

Does the Quick connector socket for water DN11.8 with GW, stainless steel come with replaceable Viton seals?

Yes. The Quick connector socket for water DN11.8 with GW, stainless steel comes with Viton seals. The product description specifies "Sealing: viton," which indicates the sealing material used is Viton (FKM), suitable for pressures up to 200 bar and temperatures up to +100Â°C. If you need confirmation that the seals are replaceable, please check with the supplier or product manual, as the description confirms the seal material but does not explicitly state replaceability.

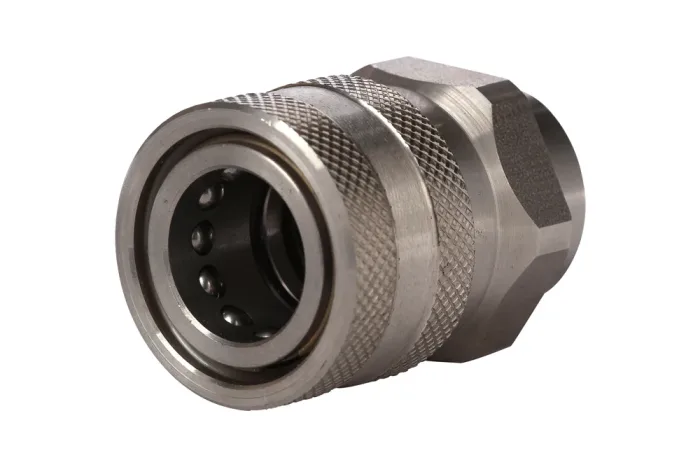

Socket water quick coupling DN11.8 with female thread, steel stainless

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel

A DN11.8 quick coupling socket with a female thread, facilitating quick connection of a water spray gun with a hose or other washing accessories. Material: steel AISI 303/304L. Sealing: Viton. Working pressure: 200 bar. Operating temperature: up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AK-COUPL-04-F	Quick coupling socket DN11.8, 1/4" BSP female, stainless steel, Viton	-	200	In stock	Enquiry
AK-COUPL-06-F	Quick coupling socket DN11.8, 3/8" BSP female, stainless steel, Viton	-	200	In stock	Enquiry
AK-COUPL-08-F	Socket quick coupling DN11.8, 1/2" BSP female, stainless steel, Viton	-	200	In stock	Enquiry
AK-COUPL-12-F	Quick coupling socket DN11.8, 3/4" BSP female, stainless steel, Viton	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A DN11.8 quick coupling socket with a female thread, facilitating quick connection of a water spray gun with a hose or other washing accessories. Material: steel AISI 303/304L. Sealing: Viton. Working pressure: 200 bar. Operating temperature: up to +100°C.
