Is the Reducing coupler with BSP female thread, cast iron, type 240/3 suitable for piping carrying media at 300Â°C and 20 bar?

Yes. The Reducing coupler with BSP female thread, cast iron, type 240/3 is specified for operating temperatures up to +300Â°C and a working pressure of 20 bar at temperatures up to +300Â°C. For piping carrying media at 300Â°C and 20 bar, the productâs rated limits match the service conditions, so it is suitable provided installation and media compatibility requirements (e.g., chemical compatibility with ductile iron, correct sealing, and adherence to relevant standards and safety margins) are met.

Can Reducing coupler with BSP female thread, cast iron, type 240/3 be used in industrial piping up to 25 bar at temperatures below 120Â°C?

Yes. Reducing coupler with BSP female thread, cast iron, type 240/3 can be used in industrial piping up to 25 bar at temperatures below 120Â°C. The product specification states working pressure 25 bar up to +120Â°C and the material and intended use in piping connections make it suitable for that service.

Does Reducing coupler with BSP female thread, cast iron, type 240/3 require special sealing for temperatures up to 300Â°C?

Reducing coupler with BSP female thread, cast iron, type 240/3: Yes. special sealing is required for reliable operation at temperatures up to +300Â°C. Standard thread sealants such as PTFE tape and common pipe dope typically degrade or creep at elevated temperatures and may not maintain pressure integrity up to 300Â°C and the stated working pressure (20 bar at up to +300Â°C). For this product use high-temperature compatible sealing methods and materials rated for 300Â°C service, for example: - High-temperature PTFE-based tapes or joint compounds specifically rated to â¥300Â°C. - Graphite or mica-based gasket/packing compounds where applicable for threaded joints. - Metal-to-metal thread seal designs or high-temperature metal-filled sealants if system demands minimal creep. Additionally, ensure compatibility of the chosen sealant with the conveyed medium (steam, gas, oil, chemicals) and follow torque recommendations for ductile iron threads to avoid galling or thread damage. For critical or safety-related installations consider manufacturer guidance or certified high-temperature sealing products and, if needed, pressure/temperature testing after assembly.

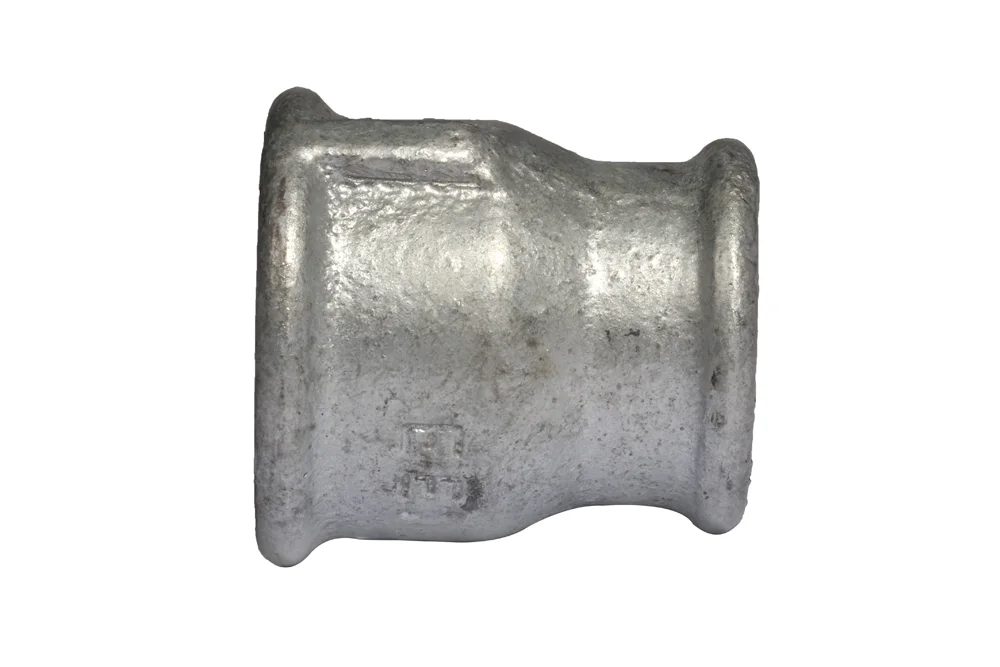

Socket reducing with a thread internal BSP, cast iron, type 240/3

Additional information

Material	CS – steel (cast iron)

Socket reducing with a thread internal BSP intended intended for use in pipe connections of industrial installations. Material: malleable cast iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-2403-06-04	Reducing socket with 3/8" BSP female x 1/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-08-04	Reducing socket with 1/2" BSP female x 1/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-08-06	Reducing socket with 1/2" BSP female x 3/8", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-12-06	Reducing socket with 3/4" BSP female x 3/8", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-12-08	Reducing socket with 3/4" BSP female x 1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-16-04	Reducing socket with 1" BSP female x 1/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-16-06	Reducing socket with 1" BSP female x 3/8", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-16-08	Reducing socket with 1" BSP female x 1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-16-12	Reducing socket with 1" BSP female x 3/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-20-06	Reducing socket with 1.1/4" BSP female x 3/8", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-20-08	Reducing socket with 1.1/4" BSP female x 1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-20-12	Reducing socket with 1.1/4" BSP female x 3/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-20-16	Reducing socket with 1.1/4" BSP female x 1", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-24-08	Reducing socket with 1.1/2" BSP female x 1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-24-12	Reducing socket with 1.1/2" BSP female x 3/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-24-16	Reducing socket with 1.1/2" BSP female x 1", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-24-20	Reducing socket with 1.1/2" BSP female x 1.1/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-32-08	Reducing socket with 2" BSP female x 1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-32-12	Reducing socket with 2" BSP female x 3/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-32-16	Reducing socket with 2" BSP female x 1", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-32-20	Reducing socket with 2" BSP female x 1.1/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-32-24	Reducing socket with 2" BSP female x 1.1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-40-16	Reducing socket with 2.1/2" BSP female x 1", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-40-20	Reducing socket with 2.1/2" BSP female x 1.1/4", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-40-24	Reducing socket with 2.1/2" BSP female x 1.1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-40-32	Reducing socket with 2.1/2" BSP female x 2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-48-24	Reducing socket with 3" BSP female x 1.1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-48-32	Reducing socket with 3" BSP female x 2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-48-40	Reducing socket with 3" BSP female x 2.1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-64-32	Reducing socket with 4" BSP female x 2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-64-40	Reducing socket with 4" BSP female x 2.1/2", cast iron galvanized.	-	25	In stock	Enquiry
EE-2403-64-48	Reducing socket with 4" BSP female x 3", cast iron galvanized.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket reducing with a thread internal BSP intended intended for use in pipe connections of industrial installations. Material: malleable cast iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).
