Can the Reducing "Y" plug tee, metric version, type PYM be used with hoses at full 10 bar working pressure and -0.99 bar vacuum?

Yes. Based on the provided description, the Reducing "Y" plug tee, metric version, type PYM can be used with hoses at a full 10 bar working pressure and at â0.99 bar vacuum. The product specifications list Working pressure: 10 bar and Vacuum: 0.99 bar (interpreted as nearâfull vacuum of â0.99 bar), and it is designed for connecting flexible pneumatic hoses with calibrated metric outer diameter. Note the material is plastic, sealing is NBR, and the operating temperature range is 0Â°C to +60Â°C.ensure your application stays within these limits for reliable performance.

Is the Reducing "Y" plug tee, metric version, type PYM compatible with hoses made of soft PVC or polyurethane?

Yes. The Reducing "Y" plug tee, metric version, type PYM is designed for connecting flexible pneumatic hoses with a calibrated metric outer diameter and is an economical solution for flexible hoses. Its plastic construction, NBR sealing and operating range (0â60Â°C, 10 bar, 0.99 bar vacuum) make it compatible with soft PVC and polyurethane hoses, provided those hoses have the specified calibrated metric outer diameter. Ensure hose OD matches the PYM metric size for proper sealing and pressure compatibility.

Does the Reducing "Y" plug tee, metric version, type PYM require specific hose wall thickness or reinforcement?

No. The Reducing "Y" plug tee, metric version, type PYM does not require a special hose wall thickness or reinforcement. It is designed as an economical connector for flexible pneumatic hoses with calibrated metric outer diameter; compatibility is determined by the hose outer diameter rather than wall thickness or internal reinforcement. Ensure hoses meet the listed working parameters (working pressure up to 10 bar, vacuum 0.99 bar, temperature range 0Â°C to +60Â°C) and use hoses with the correct metric OD to achieve proper sealing with the NBR seals. If your hoses have atypical stiffness or very thin walls that deform under pressure, verify fit and performance in application; otherwise no specific reinforcement is mandated.

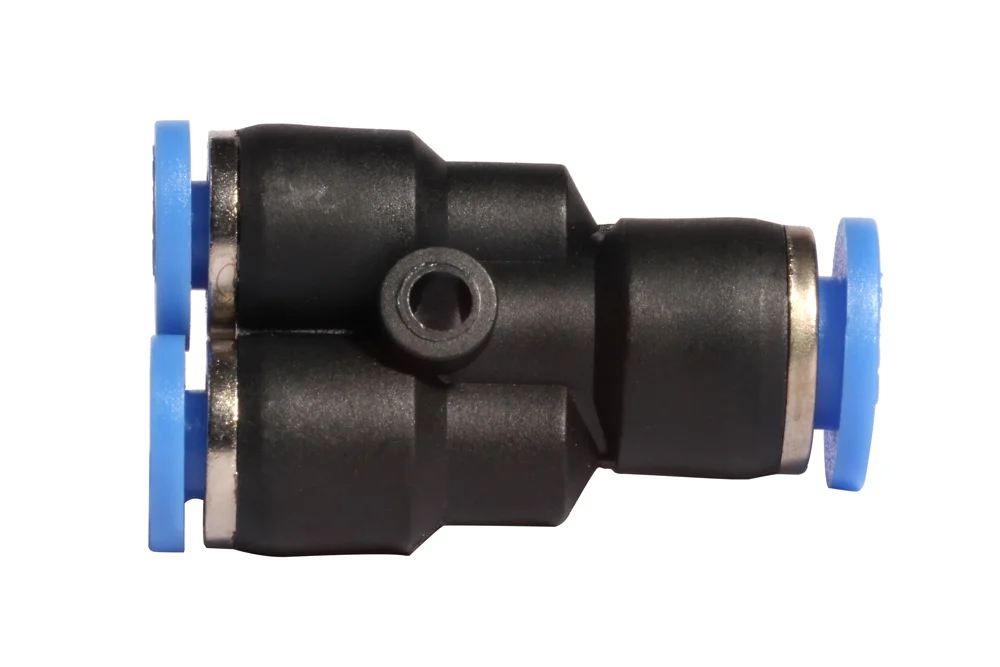

Tee plug-in “Y” reducing, version metric, type PYM

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

Coupling Tee “Y” reducing of couplings push-in under hose o diameter metric, series S, type PYM. economical solution for connecting flexible hoses pneumatic o metric calibrated diameter outer. easy and fast in use. Material: plastic plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: od 0°C up to +60°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SH-PYM-06-04	Tee fitting reducing PYM, hose 1x6 mm, 2x4 mm	-	10	In stock	Enquiry
SH-PYM-08-04	Tee fitting reducing PYM, hose 1x8 mm, 2x4 mm	-	10	In stock	Enquiry
SH-PYM-08-06	Tee fitting reducing PYM, hose 1x8 mm, 2x6 mm	-	10	In stock	Enquiry
SH-PYM-10-06	Tee fitting reducing PYM, hose 1x10 mm, 2x6 mm	-	10	In stock	Enquiry
SH-PYM-10-08	Tee fitting reducing PYM, hose 1x10 mm, 2x8 mm	-	10	In stock	Enquiry
SH-PYM-12-08	Tee fitting reducing PYM, hose 1x12 mm, 2x8 mm	-	10	In stock	Enquiry
SH-PYM-12-10	Tee fitting reducing PYM, hose 1x12 mm, 2x10 mm	-	10	In stock	Enquiry
SH-PYM-16-12	Tee fitting reducing PYM, hose 1x16 mm, 2x12 mm	-	10	In stock	Enquiry
SH-PYM-16-14	Tee fitting reducing PYM, hose 1x16 mm, 2x14 mm	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Coupling Tee “Y” reducing of couplings push-in under hose o diameter metric, series S, type PYM. economical solution for connecting flexible hoses pneumatic o metric calibrated diameter outer. easy and fast in use. Material: plastic plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: od 0°C up to +60°C. sealing: NBR.
