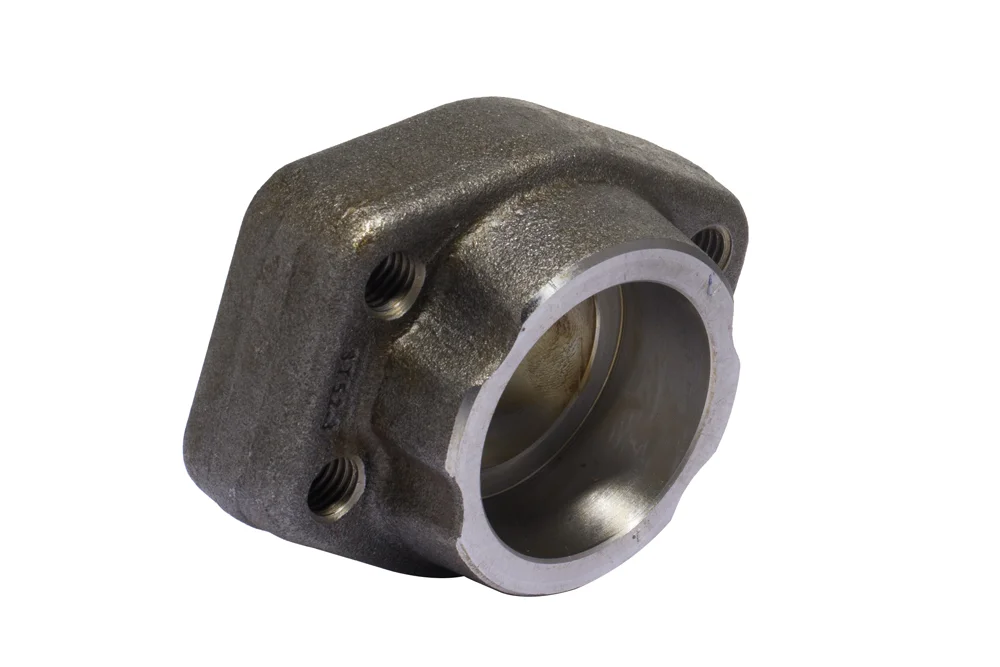

SAE 3000 counter flange for welding, carbon steel, type D3

, /
SAE 3000 counter flange for welding, carbon steel, type D3

Additional information

Material

CS – steel (cast iron)

SAE 3000 backing flange with socket for welding to connect with flange fitting, without mounting screws and sealing. Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HK-D3-SAX-06SAE 3000 3/8" backing flange, for welding. 17.5 mm-348In stock0 zł
Enquiry
HK-D3-SAX-08SAE 3000 1/2" backing flange, for welding. 21.6 mm-348In stock0 zł
Enquiry
HK-D3-SAX-12SAE 3000 3/4" backing flange, for welding. 27.2 mm-348In stock0 zł
Enquiry
HK-D3-SAX-16SAE 3000 1" backing flange, for welding. 34.1 mm-348In stock0 zł
Enquiry
HK-D3-SAX-20SAE 3000 backing flange 1.1/4", for welding 42.8 mm-278In stock0 zł
Enquiry
HK-D3-SAX-24SAE 3000 backing flange 1.1/2", for welding 48.6 mm-210In stock0 zł
Enquiry
HK-D3-SAX-32SAE 3000 2" backing flange, for welding. 61 mm-210In stock0 zł
Enquiry
HK-D3-SAX-40SAE 3000 backing flange 2.1/2", for welding. 76.6 mm-175In stock0 zł
Enquiry
HK-D3-SAX-48SAE 3000 3" backing flange, for welding. 90.5 mm-138In stock0 zł
Enquiry
HK-D3-SAX-56SAE 3000 counter flange 3.1/2", for welding. 103 mm-35In stock0 zł
Enquiry
HK-D3-SAX-64SAE 3000 4" backing flange, for welding. 115.3 mm-35In stock0 zł
Enquiry
HK-D3-SAX-80SAE 3000 5" backing flange, for welding 142 mm-35In stock0 zł
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY
SAE 3000 counter flange for welding, carbon steel, type D3

SAE 3000 backing flange with socket for welding to connect with flange fitting, without mounting screws and sealing. Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

Additional information

Material

CS – steel (cast iron)

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY
