Is the Flanged connection SAE 3000 / GW BSP, carbon steel, type D3 compatible with standard SAE 3000 hydraulic flanges and BSP-threaded ports?

Yes. The Flanged connection SAE 3000 / GW BSP, carbon steel, type D3 is designed to be compatible with standard SAE 3000 hydraulic flanges and BSP-threaded ports. It uses the SAE 3000 flange face and bolt pattern for mechanical mating, and its internal BSP thread matches BSP-ported components. Supplied mounting screws and an NBR Oâring provide the expected sealing and assembly method for hydraulic service. Material (carbon steel, galvanized) and the stated operating temperature range (â20Â°C to +100Â°C) are typical for such fittings; ensure chemical compatibility and pressure/temperature ratings of your system match SAE 3000 specifications before use.

Does the Flanged connection SAE 3000 / GW BSP, carbon steel, type D3 include the mounting screws and O-ring seal (NBR) when purchased?

Yes. The Flanged connection SAE 3000 / GW BSP, carbon steel, type D3 is supplied with mounting screws and an O-ring seal (NBR).

Can the Flanged connection SAE 3000 / GW BSP, carbon steel, type D3 withstand continuous operation at 100Â°C without seal degradation?

Yes. the Flanged connection SAE 3000 / GW BSP, carbon steel, type D3 Format can operate continuously at 100Â°C without seal degradation, provided the following conditions are met: - The product specification lists an operating temperature range up to +100Â°C, so continuous use at 100Â°C is within declared limits. - The supplied O-ring is NBR (nitrile rubber). Standard NBR can typically withstand continuous service up to about 100Â°C; prolonged exposure at that upper limit may, however, accelerate hardening, loss of elasticity, or compression set compared with lower temperatures. - To avoid premature seal degradation, ensure compatible fluids (NBR compatibility), avoid exposure to aggressive chemicals or ozone, and maintain recommended mounting torque and proper flange assembly to prevent extrusion or uneven compression. - If operation will be at sustained 100Â°C with high pressure, aggressive media, or long service intervals, consider verifying with the supplier or specifying a higher-temperature elastomer (e.g., FKM/Viton) for improved long-term performance. In summary: operating continuously at 100Â°C is within the stated rating and generally acceptable for the supplied NBR O-ring, but for maximum long-term seal reliability under high stress or aggressive media, confirm compatibility or consider a higher-temperature seal material.

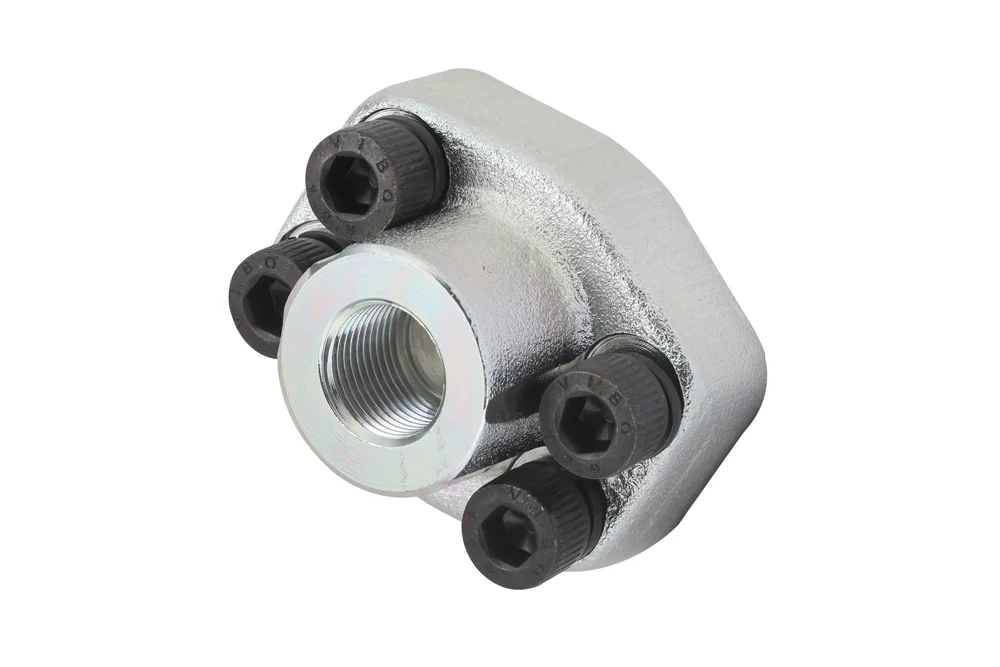

Flange connection SAE 3000 / BSP female, carbon steel, type D3

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Flange connection SAE 3000 of compact design with BSP female thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-D3-B-08-06	Flange connection SAE 3000 1/2", 3/8" BSP female	-	348	In stock	Enquiry
HK-D3-B-08-08	Flange connection SAE 3000 1/2", 1/2" BSP female	-	348	In stock	Enquiry
HK-D3-B-12-12	Flange connection SAE 3000 3/4", 3/4" BSP female	-	348	In stock	Enquiry
HK-D3-B-16-16	Flange connection SAE 3000 1", 1" BSP female	-	348	In stock	Enquiry
HK-D3-B-20-20	Flange connection SAE 3000 1.1/4", 1.1/4" BSP female	-	278	In stock	Enquiry
HK-D3-B-24-24	Flange connection SAE 3000 1.1/2", 1.1/2" BSP female	-	210	In stock	Enquiry
HK-D3-B-32-32	Flange connection SAE 3000 2", 2" BSP female	-	210	In stock	Enquiry
HK-D3-B-40-40	Flange connection SAE 3000 2.1/2", 2.1/2" BSP female	-	175	In stock	Enquiry
HK-D3-B-48-48	Flange connection SAE 3000 3", 3" BSP female	-	138	In stock	Enquiry
HK-D3-B-56-56	Flange connection SAE 3000 3.1/2", 3.1/2" BSP female	-	35	In stock	Enquiry
HK-D3-B-64-64	Flange connection SAE 3000 4", 4" BSP female	-	35	In stock	Enquiry
HK-D3-B-80-80	Flange connection SAE 3000 5", 5" BSP female	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Flange connection SAE 3000 of compact design with BSP female thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
