Is the Flanged connection SAE 6000 / GW BSP, carbon steel, type D6 compatible with standard SAE 6000 ports and BSP threaded hoses?

Yes. The Flanged connection SAE 6000 / GW BSP, carbon steel, type D6 Format is compatible with standard SAE 6000 ports and with BSP-threaded hoses. It is specifically described as an SAE 6000 flange connection with an internal BSP thread, designed for hydraulic systems, and supplied with mounting screws and an NBR Oâring to seal the flange face. Material (carbon steel, galvanized) and the stated operating temperature range (â20Â°C to +100Â°C) align with typical hydraulic applications for SAE 6000 ports and BSP hose fittings. Ensure matching thread size and pressure rating for your specific port and hose to guarantee proper fit and safe operation.

Can Flanged connection SAE 6000 / GW BSP, carbon steel, type D6 be used in high-vibration hydraulic applications without additional support?

No. Flanged connection SAE 6000 / GW BSP, carbon steel, type D6 Format is a compact, internally threaded flange with Oâring (NBR) and is intended for standard hydraulic use, but its compact design and lack of stated vibration-specific features mean it should not be used in highâvibration hydraulic applications without additional support. For high vibration you need reinforcement: external bracing, support brackets, vibration isolators or flex hoses, and periodic inspection of mounting screws and Oâring sealing. Also verify fatigue limits of the galvanized carbon steel and consult supplier specifications or perform application-specific testing before use.

What torque values are recommended for installing Flanged connection SAE 6000 / GW BSP, carbon steel, type D6 mounting screws?

For Flanged connection SAE 6000 / GW BSP, carbon steel, type D6 mounting screws, use the following recommended tightening torques as general guidance for carbon steel, zincâplated hex bolts with an Oâring (NBR) flange seal. Final torque depends on screw size, thread pitch and property class; if screw grade is unknown, use conservative values for 8.8 steel: - M6 (8.8): 10â12 Nm - M8 (8.8): 24â28 Nm - M10 (8.8): 45â50 Nm - M12 (8.8): 75â85 Nm - M16 (8.8): 150â170 Nm Installation notes: - Tighten screws in a crissâcross/star pattern incrementally to compress the Oâring evenly. - Use a calibrated torque wrench and clean dry threads; apply light antiâseize only if specified by manufacturer (note: lubricants lower required torque). - Do not exceed material limits; for higherâgrade bolts (10.9, 12.9) reduce values per manufacturer data. - If available, always follow the flange or screw supplierâs specific torque chart for the exact screw grade and coating. If you provide the exact screw diameter and property class, I will give more precise torque values.

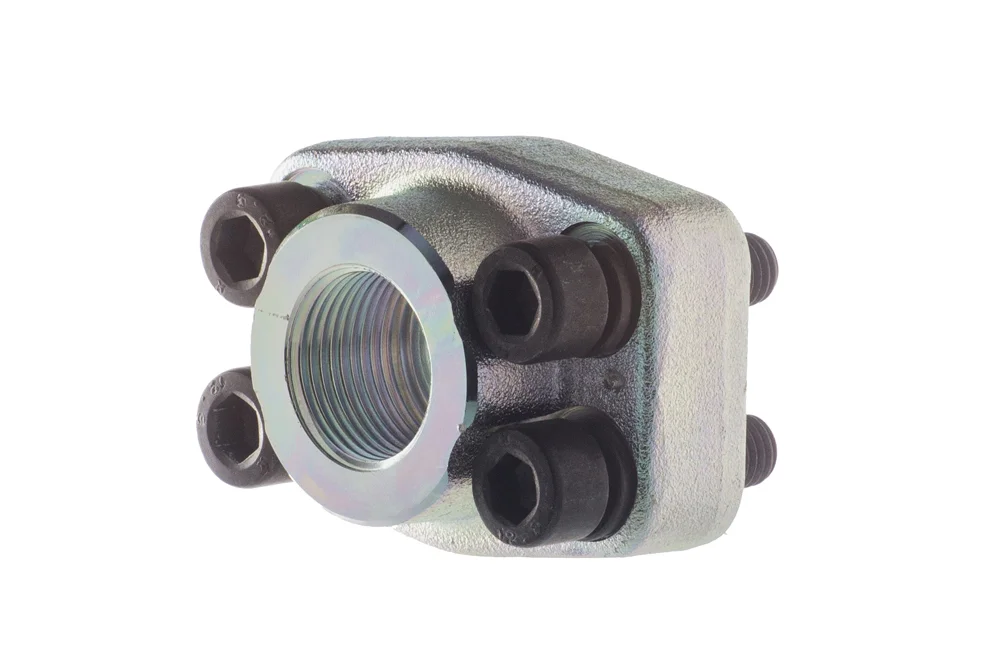

Flanged connection SAE 6000 / GW BSP, carbon steel, type D6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

SAE 6000 flange connection with a compact design and internal BSP thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-D6-B-08-06	SAE 6000 collar fitting 1/2", G 3/8" BSP	-	420	In stock	Enquiry
HK-D6-B-08-08	SAE 6000 collar fitting 1/2", 1/2" BSP male thread	-	420	In stock	Enquiry
HK-D6-B-12-12	SAE 6000 collar fitting 3/4", 3/4" BSP female thread	-	420	In stock	Enquiry
HK-D6-B-16-16	SAE 6000 flange fitting 1", 1" BSP thread	-	420	In stock	Enquiry
HK-D6-B-20-20	SAE 6000 flange fitting 1.1/4", 1.1/4" BSP female thread	-	420	In stock	Enquiry
HK-D6-B-24-24	SAE 6000 flange fitting 1.1/2", G 1.1/2" BSP	-	420	In stock	Enquiry
HK-D6-B-32-32	SAE 6000 flange fitting 2", 2" BSP thread	-	420	In stock	Enquiry
HK-D6-B-40-40	SAE 6000 flange fitting 2.1/2", G 2.1/2" BSP	-	420	In stock	Enquiry
HK-D6-B-48-48	SAE 6000 flange fitting 3", 3" BSP thread	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SAE 6000 flange connection with a compact design and internal BSP thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
