Is SAE 6000 90Â° flange end, type ZSK212, heavy series, carbon steel suitable for crimping with a sleeve matched to the hose type?

Yes. The SAE 6000 90Â° flange end, type ZSK212, heavy series, carbon steel is designed for crimping with a sleeve matched to the hose type. Its specification explicitly states it is intended for crimping in hydraulic and industrial hose assemblies, and the heavy-series construction (carbon steel, galvanized) provides the strength and corrosion resistance required for reliable crimp joints. Ensure you use the correct sleeve profile and dimensions specified for the particular hose material and diameter, follow the manufacturer's crimping parameters (press force, depth, and tooling), and verify the assembly with pressure and leak tests per relevant standards. When matched and crimped correctly, this fitting is suitable and appropriate for secure, high-pressure hose connections.

Can SAE 6000 90Â° flange end, type ZSK212, heavy series, carbon steel be used with standard crimping sleeves for industrial hydraulic hoses?

Yes. SAE 6000 90Â° flange end, type ZSK212, heavy series, carbon steel can be used with standard crimping sleeves for industrial hydraulic hoses, provided the crimping sleeve is compatible with the specific hose type and dimensions. The fitting is designed for crimping in hydraulic and industrial hoses and is made of galvanized carbon steel; correct sleeve material, length and die set must match the hose manufacturerâs specifications and the ZSK212 dimensions to ensure proper crimp profile, pressure rating and leak-free connection. Always follow hose and sleeve manufacturer guidelines and perform pressure testing after assembly.

Does SAE 6000 90Â° flange end, type ZSK212, heavy series, carbon steel require specific sleeve dimensions for crimping?

Yes. SAE 6000 90Â° flange end, type ZSK212, heavy series, carbon steel requires a crimping sleeve sized to the specific hose and fitting. The flange end is designed for crimp assembly, so you must use a sleeve whose inner diameter, length and profile match the hose type and the ZSK212 fitting geometry. Key points: - Sleeve inner diameter: must fit the hose outer diameter (including reinforcement) so the sleeve compresses the hose uniformly without gaps or excessive compression. - Sleeve length: must cover the hose end sufficiently to engage the fittingâs barb and provide the required crimp grip length specified by the hose manufacturer and fitting supplier. - Sleeve profile: should be compatible with the heavy-series flange fitting. some sleeves are smooth, others have swaged profiles; use the profile recommended for ZSK212 to ensure proper metal-to-metal contact and seal. - Material and thickness: choose a sleeve material and wall thickness suitable for the service pressure and to match the carbon steel, galvanized fitting to avoid galvanic or mechanical issues. - Crimping specifications: follow the hose and crimper manufacturerâs die set and crimp dimensions (diameter/hex size, position) specific to the hose assembly; heavy series fittings typically require heavier-duty dies and specific crimp percentages. Always consult the hose and fitting manufacturerâs datasheets and crimping templates for exact sleeve dimensions and crimp parameters before assembly.

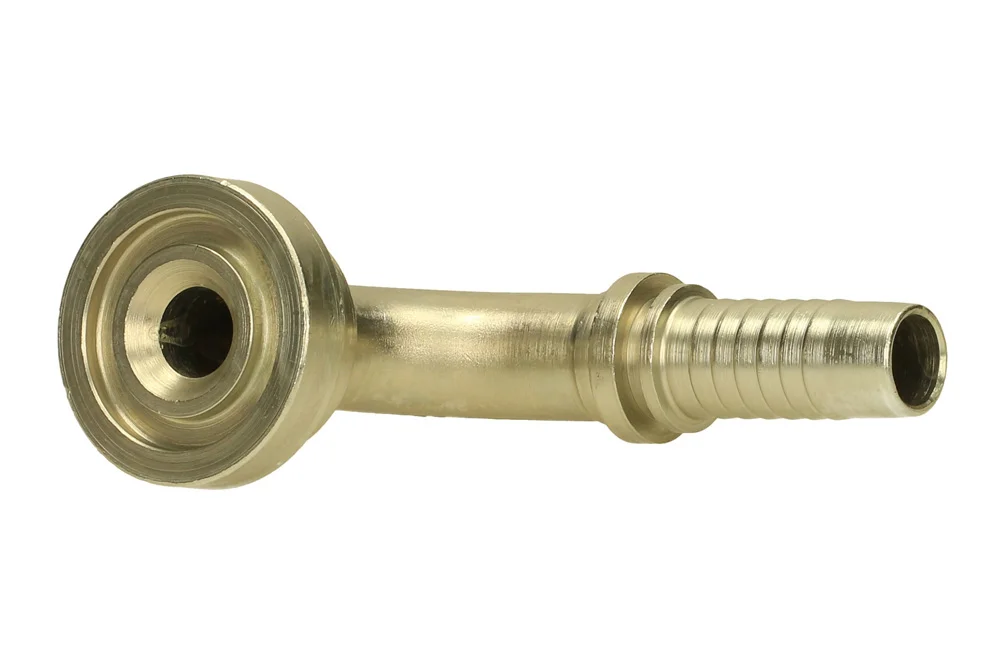

SAE 6000 90° flange end, type ZSK212, heavy series, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

SAE 6000 flange end (SFL), 90° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK212-08-08	End fitting 90° SAE 1/2", hose 1/2", heavy	12	-	In stock	Enquiry
TI-ZSK212-08-10	End fitting 90° SAE 1/2", hose 5/8", heavy	16	-	In stock	Enquiry
TI-ZSK212-08-12	End fitting 90° SAE 1/2", hose 3/4", heavy	20	-	In stock	Enquiry
TI-ZSK212-12-08	End fitting 90° SAE 3/4", hose 1/2", heavy	12	-	In stock	Enquiry
TI-ZSK212-12-10	End fitting 90° SAE 3/4", hose 5/8", heavy	16	-	In stock	Enquiry
TI-ZSK212-12-12	End fitting 90° SAE 3/4", hose 3/4", heavy	20	-	In stock	Enquiry
TI-ZSK212-12-16	End fitting 90° SAE 3/4", hose 1", heavy	25	-	In stock	Enquiry
TI-ZSK212-16-12	End fitting 90° SAE 1", hose 3/4", heavy	20	-	In stock	Enquiry
TI-ZSK212-16-16	End fitting 90° SAE 1", hose 1", heavy duty	25	-	In stock	Enquiry
TI-ZSK212-20-16	End fitting 90° SAE 1.1/4", hose 1", heavy	25	-	In stock	Enquiry
TI-ZSK212-20-20	End fitting 90° SAE 1.1/4", hose 1.1/4", heavy	32	-	In stock	Enquiry
TI-ZSK212-24-20	End fitting 90° SAE 1.1/2", hose 1.1/4", heavy	32	-	In stock	Enquiry
TI-ZSK212-24-24	End fitting 90° SAE 1.1/2", hose 1.1/2", heavy	38	-	In stock	Enquiry
TI-ZSK212-32-24	End fitting 90° SAE 2", hose 1.1/2", heavy	38	-	In stock	Enquiry
TI-ZSK212-32-32	End fitting 90° SAE 2", hose 2", heavy	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SAE 6000 flange end (SFL), 90° angled, heavy series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Material: carbon steel, galvanized.
