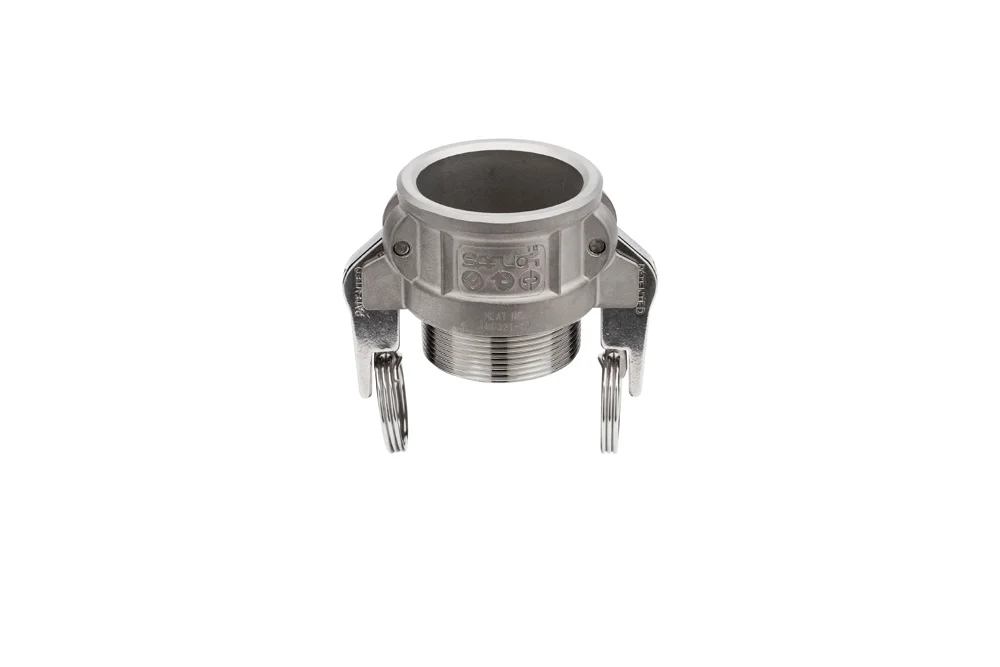

SAFLOK® B socket with GZ BSPT, stainless steel
SAFLOK® B socket with BSPT external thread is a variant of the CAMLOCK coupling with protection against accidental disconnection. The protection consists of spring-loaded latches located in the levers of the socket. During the closing of the lever, the latches automatically lock. Unlocking when opening requires pulling back the latches. The SAFLOK® B socket is compatible with other CAMLOCK couplings made according to MIL-C-27487 standards. Spare parts are available: levers with latches and pins. The coupling size 1/2″ has a thread of 1/2″ and a socket of 3/4″. Material: AISI 316 steel. Sealing: NBR. Working pressure: 20 bar (1/2″ ÷ 2″), 10 bar (2.1/2″ ÷ 4″). Operating temperature: from -40°C to +93°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
SAFLOK® B socket with BSPT external thread is a variant of the CAMLOCK coupling with protection against accidental disconnection. The protection consists of spring-loaded latches located in the levers of the socket. During the closing of the lever, the latches automatically lock. Unlocking when opening requires pulling back the latches. The SAFLOK® B socket is compatible with other CAMLOCK couplings made according to MIL-C-27487 standards. Spare parts are available: levers with latches and pins. The coupling size 1/2″ has a thread of 1/2″ and a socket of 3/4″. Material: AISI 316 steel. Sealing: NBR. Working pressure: 20 bar (1/2″ ÷ 2″), 10 bar (2.1/2″ ÷ 4″). Operating temperature: from -40°C to +93°C.
Additional information
| Material | SS – stainless steel |
|---|
