Is the SAFLOKÂ® CRS socket with hose end under RS clamp, stainless steel compatible with other MILâCâ27487 CAMLOCK couplings?

Yes. The SAFLOKÂ® CRS socket with hose end under RS clamp, stainless steel is compatible with other CAMLOCK couplings manufactured to the MILâCâ27487 standard. It is a CAMLOCK variant with springâloaded latches in the levers that automatically lock on closing and must be pulled back to unlock when opening. Materials and specs: AISI 316 stainless steel, NBR sealing, working pressure 20 bar (1/2"â2"), 10 bar (2Â½"â4"), operating temperature â40Â°C to +93Â°C. Spare parts (levers with latches and pins) are available.

Can the SAFLOKÂ® CRS socket with hose end under RS clamp, stainless steel withstand temperatures from -40Â°C to +93Â°C during operation?

Yes. The SAFLOKÂ® CRS socket with hose end under RS clamp, stainless steel is specified for operation from -40Â°C to +93Â°C. Made of AISI 316 with NBR sealing and spring-loaded latches, it is designed to withstand that temperature range while meeting MIL-C-27487 compatibility and the listed working pressures (20 bar for 1/2"â2", 10 bar for 2.1/2"â4").

Does the SAFLOKÂ® CRS socket with hose end under RS clamp, stainless steel come with replaceable levers and pins?

Yes. The SAFLOKÂ® CRS socket with hose end under RS clamp, stainless steel comes with replaceable levers and pins. Spare parts available include levers with latches and pins.

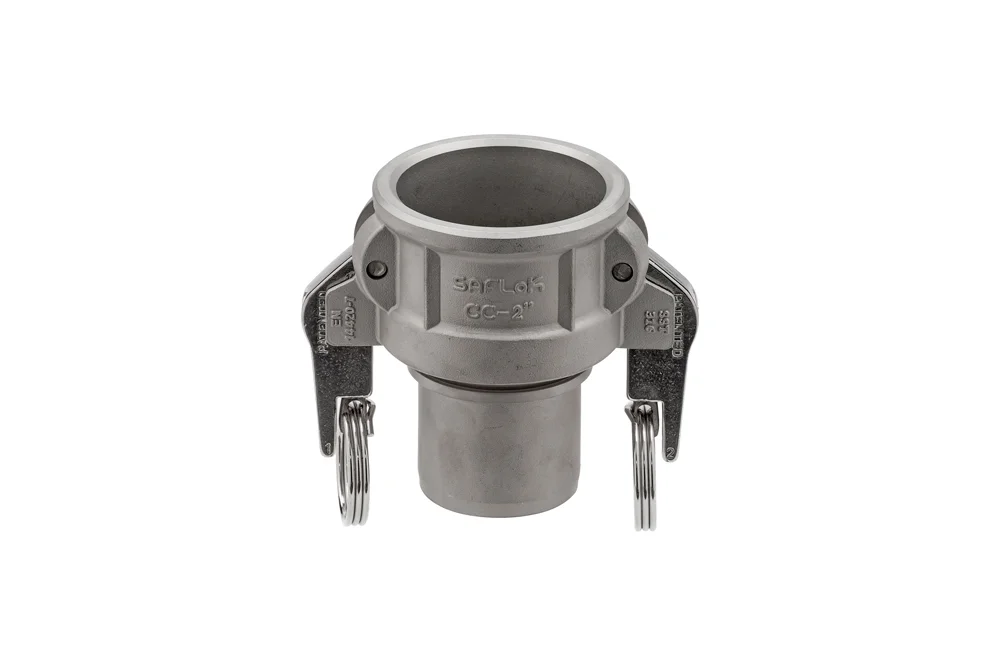

Socket SAFLOK® CRS with fitting for hose for an RS clamp, steel stainless

Additional information

Material	SS – stainless steel

Socket SAFLOK® C with fitting for hose for an RS clamp is a variant of the CAMLOCK coupling with protection against accidental opening of the coupling. The protection consists of resilient latches placed in the levers of the socket. When the lever is closed, the latches lock automatically. Unlocking during opening requires pulling back the latches. socket SAFLOK® CRS is compatible with other CAMLOCK couplings made in accordance with the MIL-C-27487 standard. Spare parts are available: levers with latches and pins. Material: steel AISI 316. Sealing: NBR. Working pressure: 20 bar (1/2″ ÷ 2″), 10 bar (2.1/2″ ÷ 4″). Operating temperature: from -40°C to +93°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-SL-CRS-075	Socket SAFLOK CRS 3/4"	20	20	In stock	Enquiry
AC-SL-CRS-100	Socket SAFLOK CRS 1"	25	20	In stock	Enquiry
AC-SL-CRS-125	Socket SAFLOK CRS 1.1/4"	32	20	In stock	Enquiry
AC-SL-CRS-150	Socket SAFLOK CRS 1.1/2"	40	20	In stock	Enquiry
AC-SL-CRS-200	Socket SAFLOK CRS 2"	50	20	In stock	Enquiry
AC-SL-CRS-250	Socket SAFLOK CRS 2.1/2"	65	10	In stock	Enquiry
AC-SL-CRS-300	Socket SAFLOK CRS 3"	75	10	In stock	Enquiry
AC-SL-CRS-400	Socket SAFLOK CRS 4"	100	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket SAFLOK® C with fitting for hose for an RS clamp is a variant of the CAMLOCK coupling with protection against accidental opening of the coupling. The protection consists of resilient latches placed in the levers of the socket. When the lever is closed, the latches lock automatically. Unlocking during opening requires pulling back the latches. socket SAFLOK® CRS is compatible with other CAMLOCK couplings made in accordance with the MIL-C-27487 standard. Spare parts are available: levers with latches and pins. Material: steel AISI 316. Sealing: NBR. Working pressure: 20 bar (1/2″ ÷ 2″), 10 bar (2.1/2″ ÷ 4″). Operating temperature: from -40°C to +93°C.
